Processing Materials: Ore grinding equipment is mainly used for crushing and grinding iron, gold, lead, zinc, antimony, and so on, which is the best and economic replacement for the ball mill in the small or medium-scale mining site. It's widely used in the mineral processing factories in many Africa countries like Sudan.
Technical Parameters
Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
Product Structure

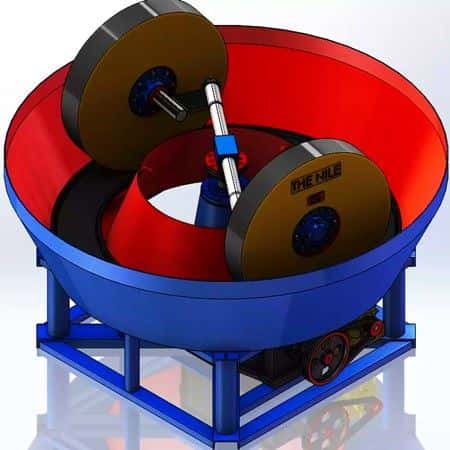

The ore grinding equipment is mainly composed of motor, stand, basin, grinding base, bearing, roller, reducer, etc. Among them, the roller material is 6% manganese alloy steel, which has a long service life of at least 3 years. The ring material adopts optional casting steel, casting iron, and manganese steel with standard 85mm steel thickness. And the gearbox is specially designed for wet pan mill, which also has a 1-year quality guarantee for users.
Advantages of Ore Grinding Equipment
1. It adopts uniform grinding, which makes the fine grinding particle size small to 1mm.
2. High capacity design makes the output ranges up to 40 tonnes per hour.
3. Low energy consumption, silent and safe operation. Easy to operate and maintain. Smooth and well distributed.
4. The wearable grinding roller has a longer service life.
5. Wet pan mill for gold processing has a lower price. Nile Machinery wet pan mills are popular in Africa countries like Sudan, Egypt, South Africa.
Technical Parameters of Ore Grinding Equipment
Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
