Wet pan mills are mainly used to select gold, silver, lead, zinc, iron, copper, and other ore. All ore that can be selected by ball mills can be used with wet mills.
Product Introduction：

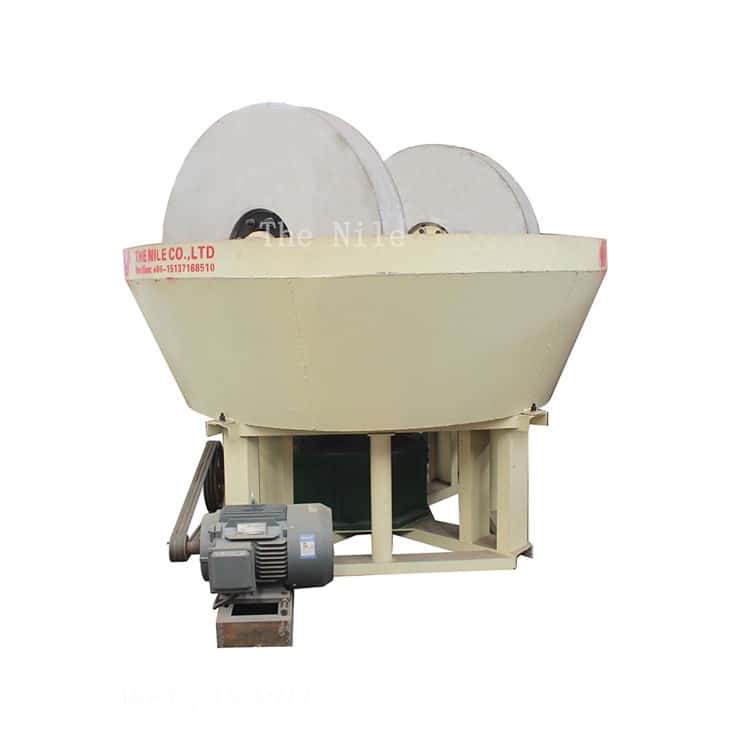

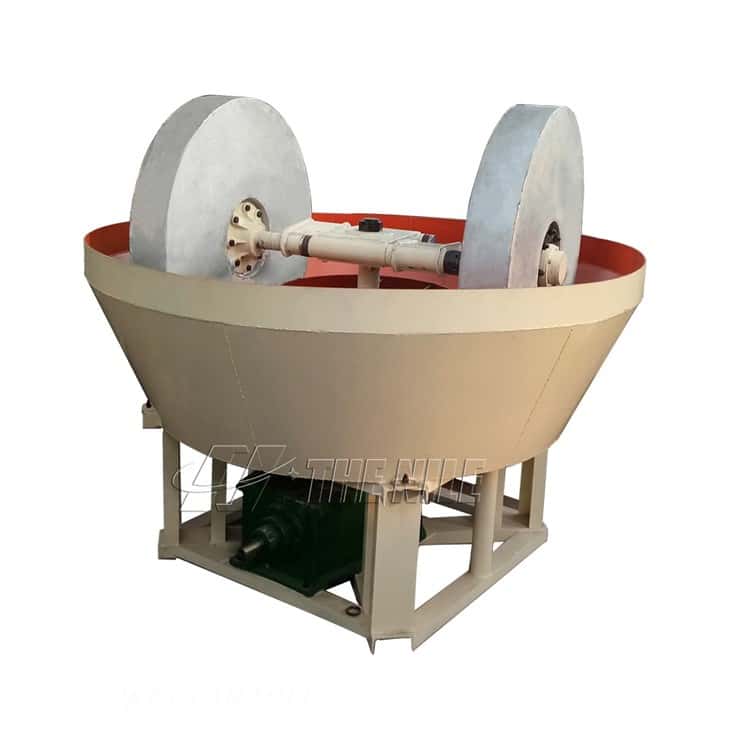

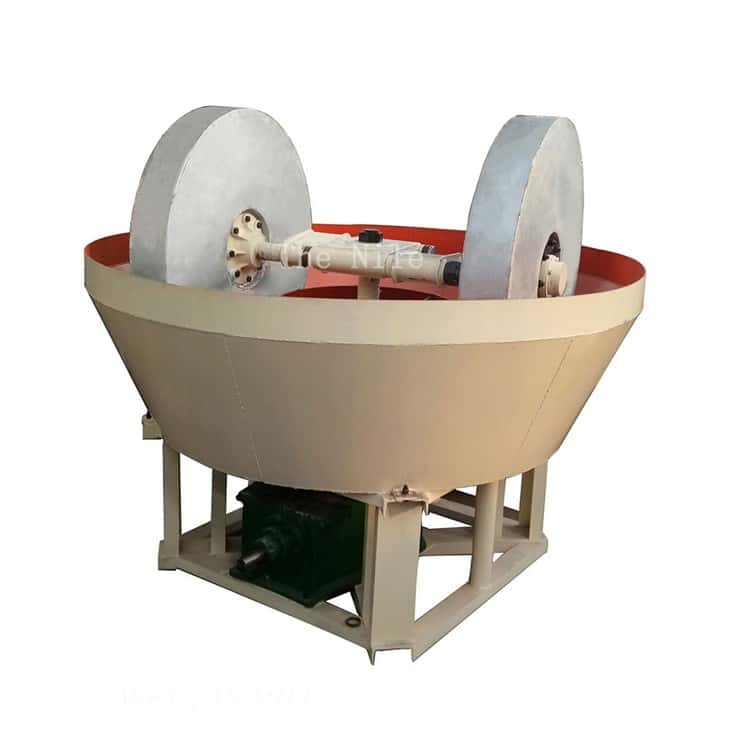

The full name of the wet mill iswetpan grindingmill. It is widely used in the grinding operations of various ferrous metals, non-ferrous metals, and non-metallic minerals, as well as the grinding, selection, and processing operations of rare and precious metals gold and silver. The factory is the best first to ground equipment.The 2 rollers grinding millsare also common grinding equipment in the mining industry. It is a new type of professional equipment used to process raw materials before the mine grinds ore, slag, and refractory materials.
Working principle:

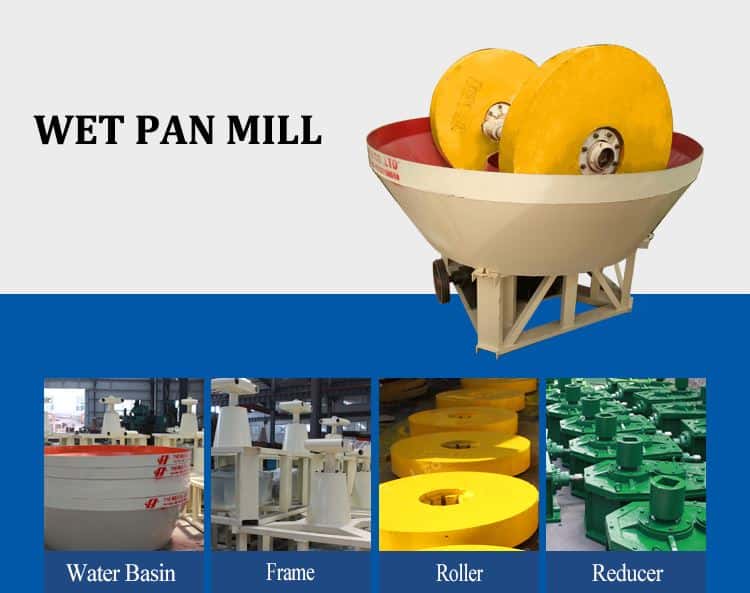

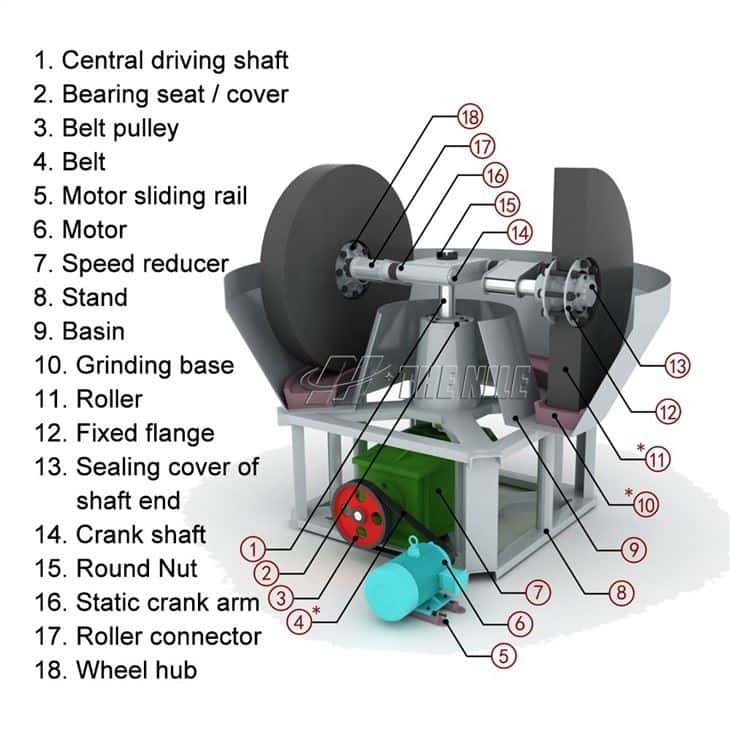

The double wheels grinding mill is mainly composed of the power unit, frame, water basin, grinding wheel, grinding disc, and other components, and adopts wheel-driven grinding work mode. First, the electric motor transmits the power to the reducer. Driven by the reducer, the torque is transmitted to the upper horizontal shaft through the large vertical shaft and then transmitted to the roller through the tie rods installed at both ends of the horizontal shaft, so that the roller generates driving force along the horizontal axis. The shaft rotates counterclockwise in the horizontal direction; the grinding wheel can revolve around the vertical shaft of the wet pan gold millwhile working, and it can also rotate around the central axis of the grinding wheel, while the grinding disc is fixed. The added ore materials are subjected to the squeezing force brought by the weight of the grinding wheel in the mill, and the huge friction force generated by the grinding wheel and the grinding plate during the revolution and rotation of the grinding wheel is repeated after being squeezed, kneaded, and ground. until the material is thoroughly crushed.
Product advantages:
1. Low investment risk and low production cost
2. Low energy consumption, silent and safe operation.
3. The shape is simple, easy to operate and maintain.
4. Wear-resistant grinding roller with long service life.
5. Compact structure and good sealing
Daily maintenance：
1. Regularly inject clean lubricating oil into the lubricating places such as the bearings on the wet pan mill reducer, the roller core bearings, and the bearings on the main shaft. And add half of the clean gear oil in the gearbox.
2. The newly installed outer ring and inner core fastening bolts are prone to loosening and must be checked frequently.
4. Pay attention to check the degree of wear of easily worn parts, and pay attention to replacing worn parts at any time.
5. The plane of the bottom frame of the equipment should be free of dust and other materials to avoid affecting the operation of the motor and gearbox and causing serious accidents.
6. If the bearing has abnormal noise or the temperature of the bearing position increases, stop the machine immediately to check the cause and eliminate it.
7. If there is an abnormal response when the rotating gear is running, stop and check immediately and eliminate it.
FAQ：
Q1: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q2: What about the quality of your products?
A: Our products are manufactured strictly in accordance with national and international standards, and we always test every piece of equipment before delivery. We guarantee if the quality of products is different from the description we described before your placing order, we promise a 100% refund.
Q3: Is the price of products reliable?
A: Yes, we are a manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".

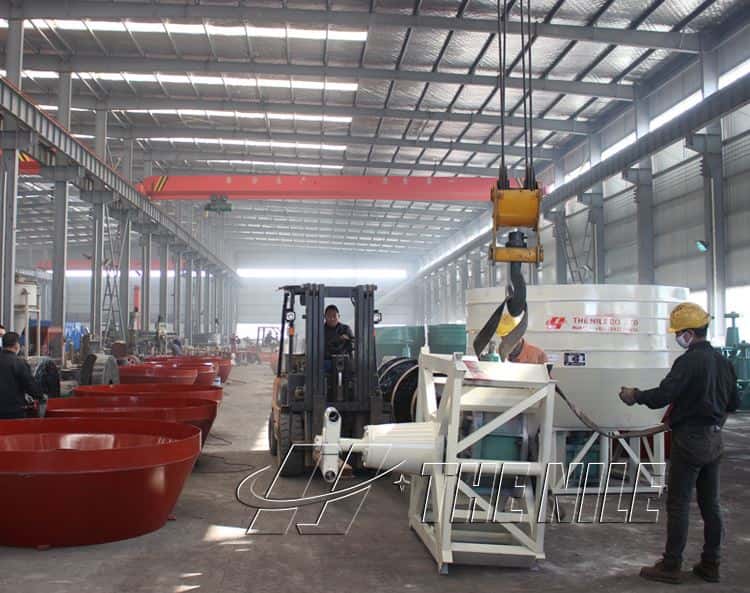

The Nile Company has its own factories and overseas warehouses in Sudan and Kenya. The wet pan mills provided byTheNile Company's suppliers are not only of high quality but also low price. TheNile Company not only has a professional technical team and business team but has also participated in large-scale overseas exhibition hall activities many times. Such as participation in the Sudan Mining Equipment Exhibition, Peru Mining Exhibition, India Bauma Exhibition, etc
| Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
| (mm) | (kW) | (RPM) | (t) | ||
| 1600A | 1600×400×200×500±20 | ≤25 | 30 | 10-12 | 14.5 |
| 1500A | 1500×350×200×460±20 | ≤25 | 22 | 10-12 | 12.3 |
| 1500B | 1500×350×150×460±20 | ≤25 | 18.5 | 10-12 | 11.3 |
| 1400A | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 10 |
| 1400B | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 8.5 |
| 1300A | 1300×250×150×350±20 | ≤25 | 11 | 10-12 | 8.5 |
| 1300B | 1300×200×150×350±20 | ≤25 | 11 | 10-12 | 7.5 |
| 1200A | 1200×220×80×270±20 | ≤25 | 7.5 | 12.5 | 5.5 |
| 1200B | 1200×200×80×250±20 | ≤25 | 7.5 | 12.5 | 5.0 |
| 1100B | 1100×180×80×250±20 | ≤25 | 5.5 | 12 | 4.0 |
