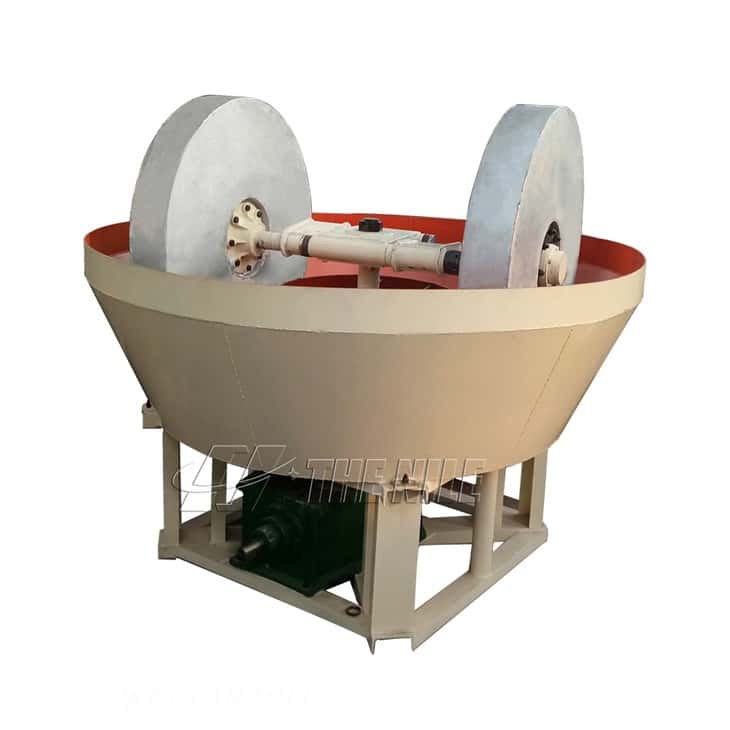

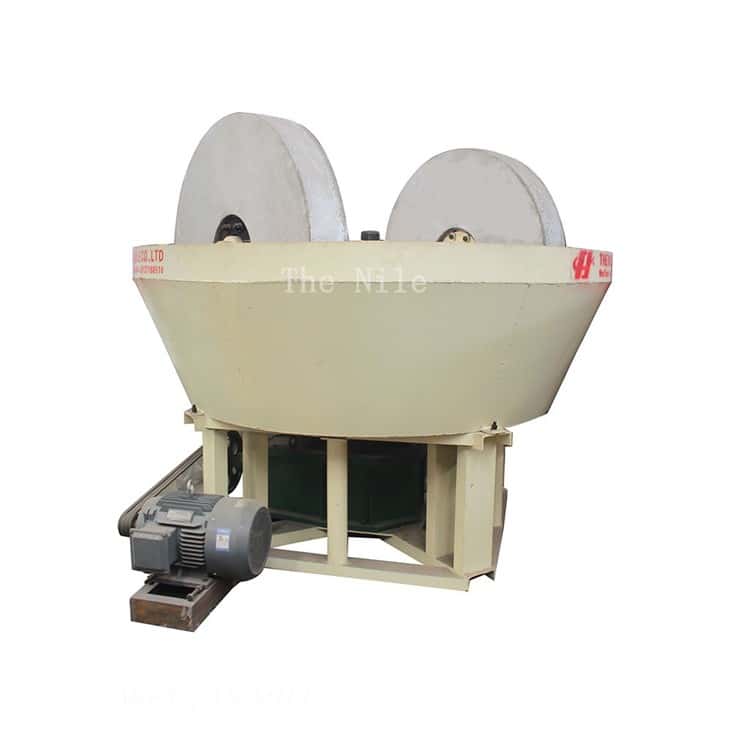

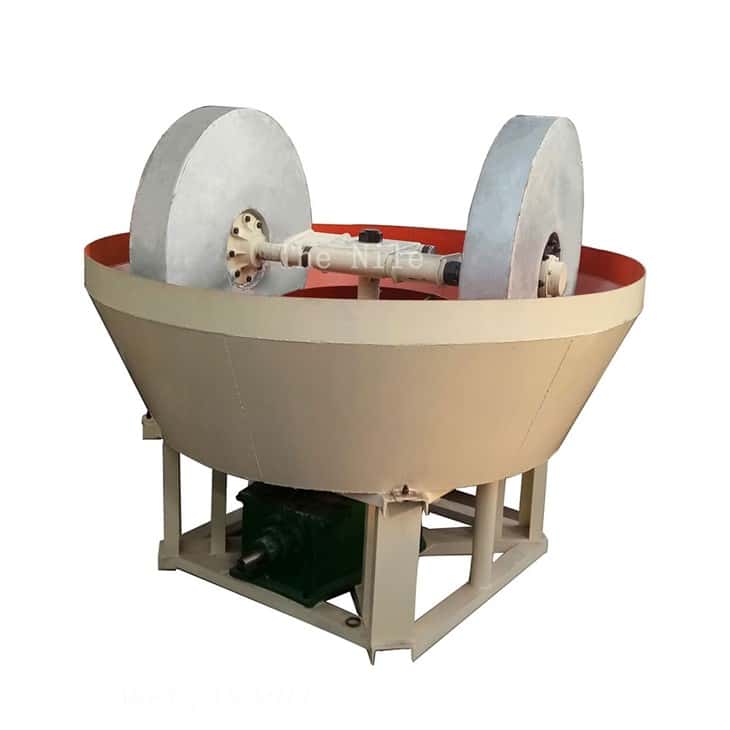

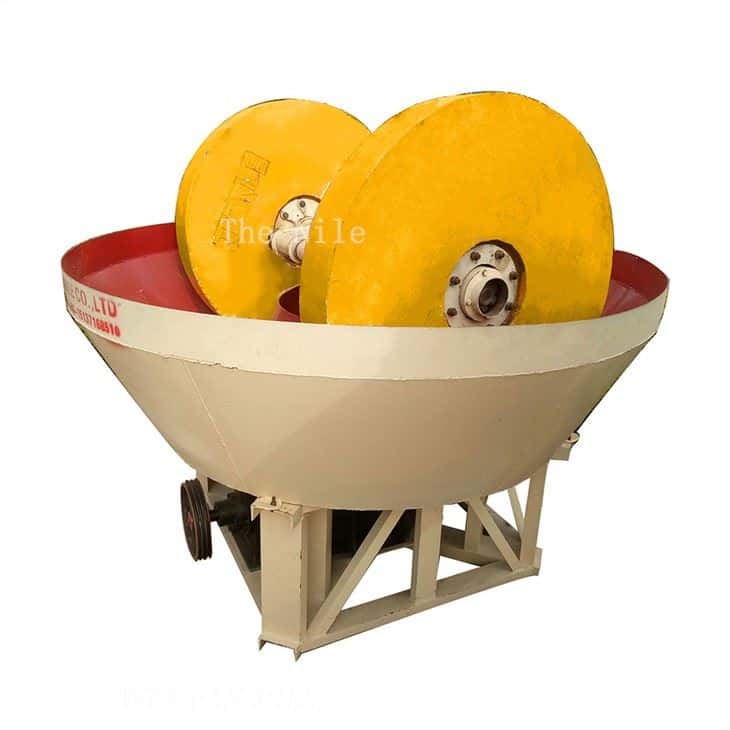

The wet pan mill machine is a commonly used gold separation equipment, mainly used for the separation of gold, silver, molybdenum, zinc, antimony, iron, copper, etc., with a wide range of applications.
Product description:
The wet pan mill machine is suitable for all kinds of ferrous metal, non-ferrous metal, non-metal ore grinding operations, as well as rare metal, gold, and silver grinding, beneficiation, and processing operations. It is the best choice for grinding equipment for the majority of small and medium-sized concentrators. The wet mill also has many advantages such as small investment, high output, good efficiency, and convenient maintenance.
Working principle of wet pan gold mill

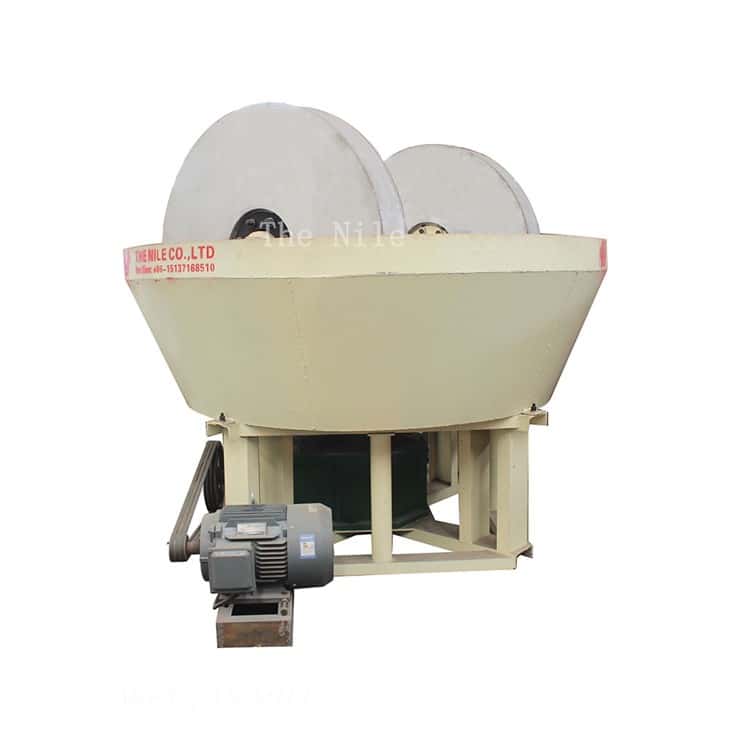

The motor transmits the power to the gearbox through the V-belt, and then the gearbox drives the roller so that the roller rotates in a clockwise direction. When the raw materials in the water basin are running with the roller, they follow the rotation of the roller, so as to achieve the purpose of uniform mixing. At the same time, the raw materials are stirred, crushed, crushed, and repeatedly crushed to a certain degree of fineness with the friction of the grinding wheel and the grinding plate, and then discharged with water to achieve the purpose of beneficiation.
Features of wet pan grinding mill
1. High efficiency and energy saving. The double wheels grinding mill can be used for the recovery of tailings in the iron ore process, so that the ore powder is not lost, and the effective resources are fully used.
2. The finished product is good. The products milled by the wet pan gold mill machine have many advantages such as high density, no porosity, good strength, and heavy proportion.
3. Low investment cost. The high-efficiency wet pan gold mill is not only low in production costs but also the wear parts are not easily damaged and have a long service life.
4. Environmental protection and durability. The 2 roller grinding mill has low noise, low energy consumption, compact structure, and good sealing performance.

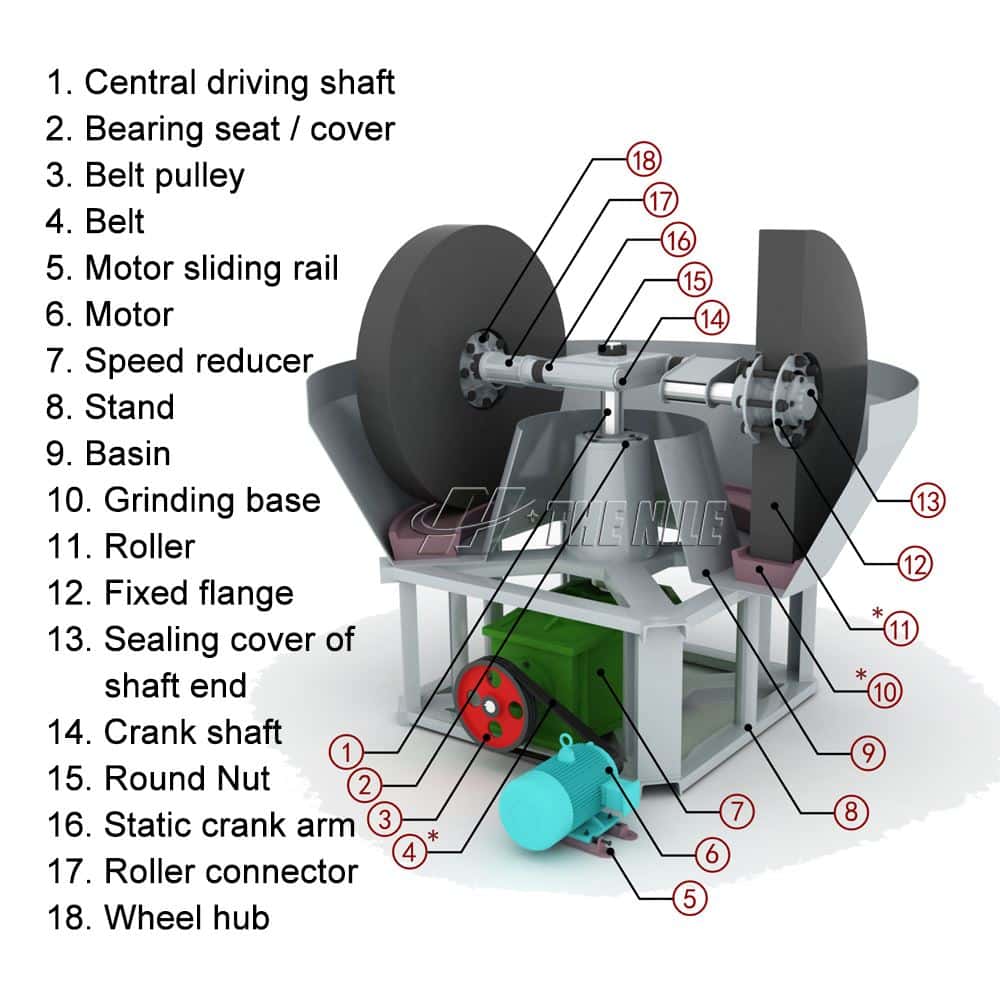

Structural composition of wet pan gold mill for sale

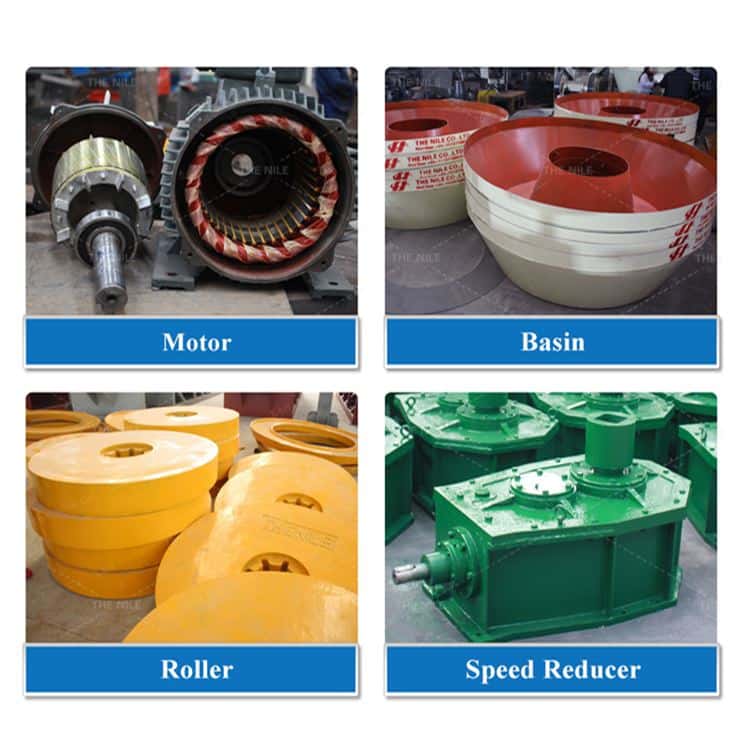

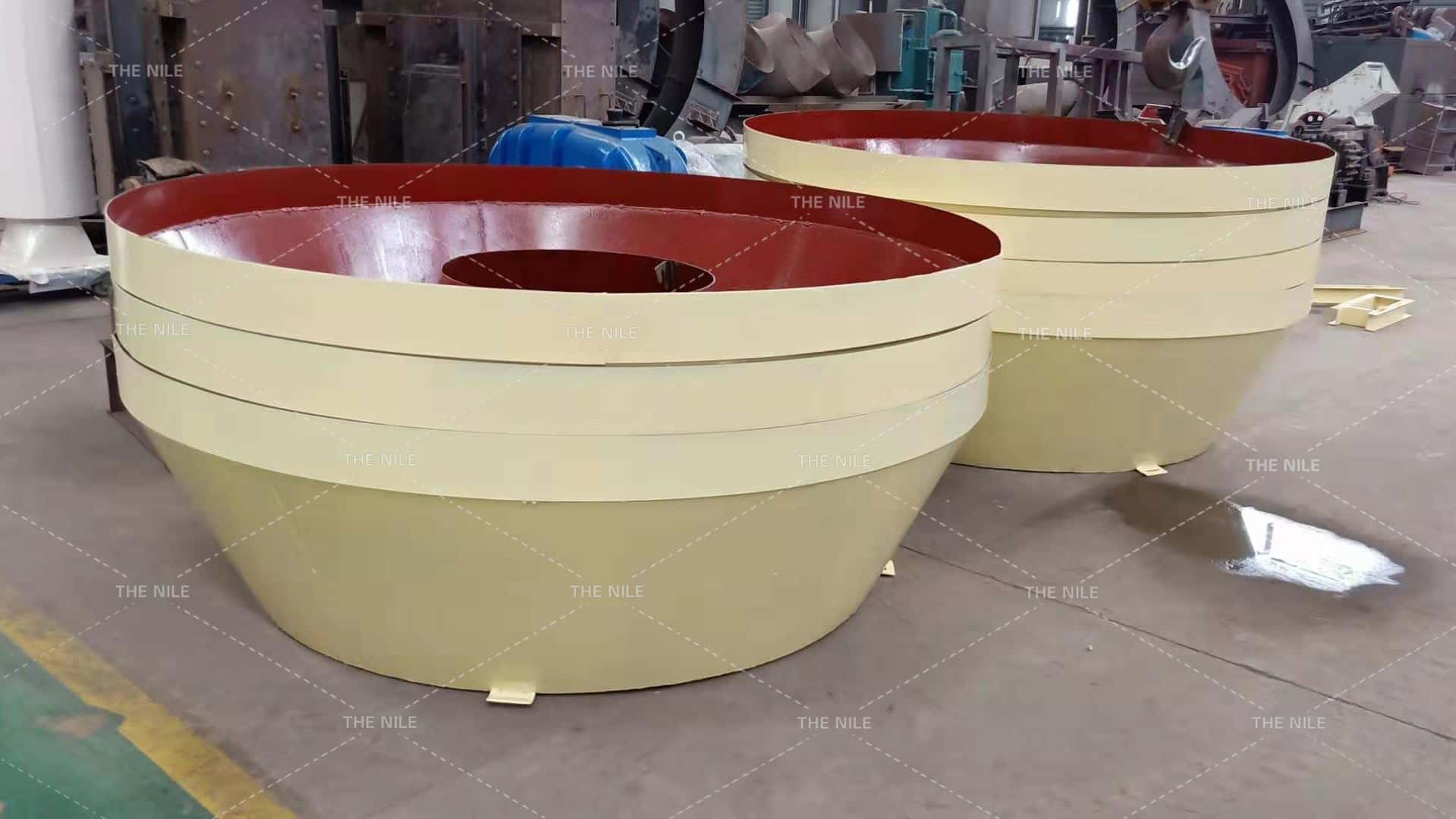

The wet pan mill grinding machine is mainly composed of the power unit, frame, water basin, grinding wheel, grinding plate, and other components, and adopts wheel-driven grinding work mode.

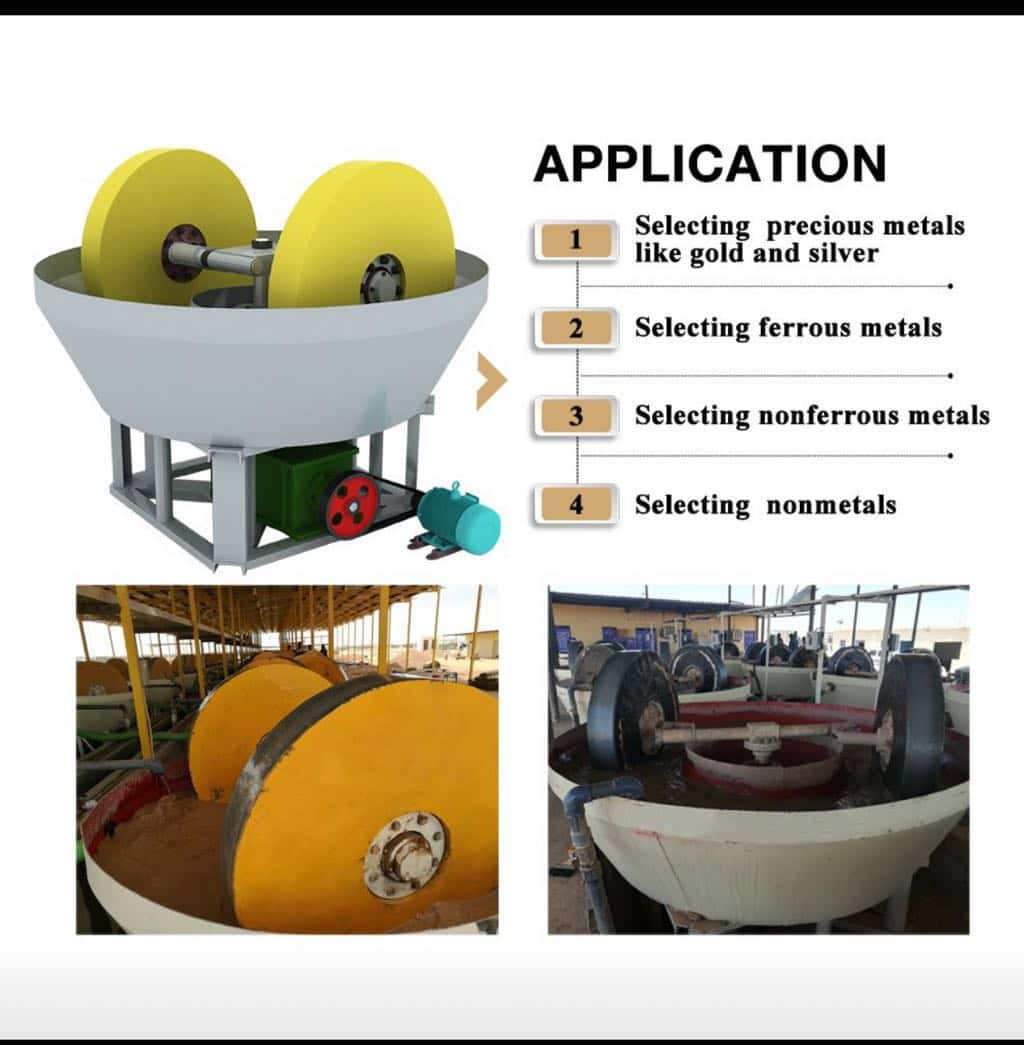

Application areas:
This machine is used for the grinding of various ferrous metals, non-ferrous metals, scrap metal minerals, and the grinding, sorting, and processing of rare and precious metals such as gold and silver.

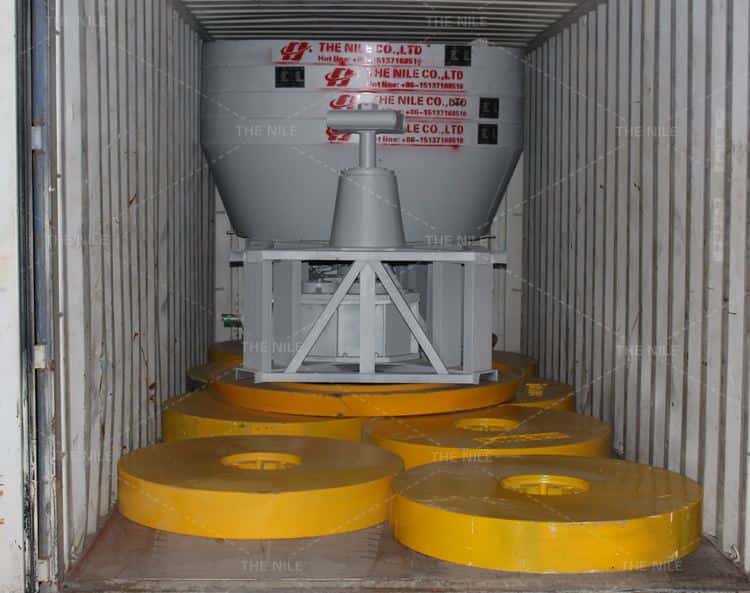

Packaging and shipping
Customer case:
Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.

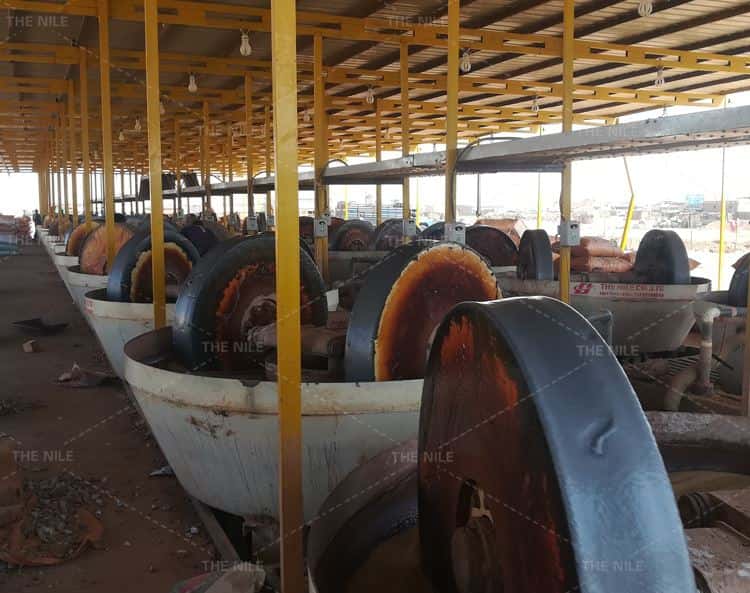

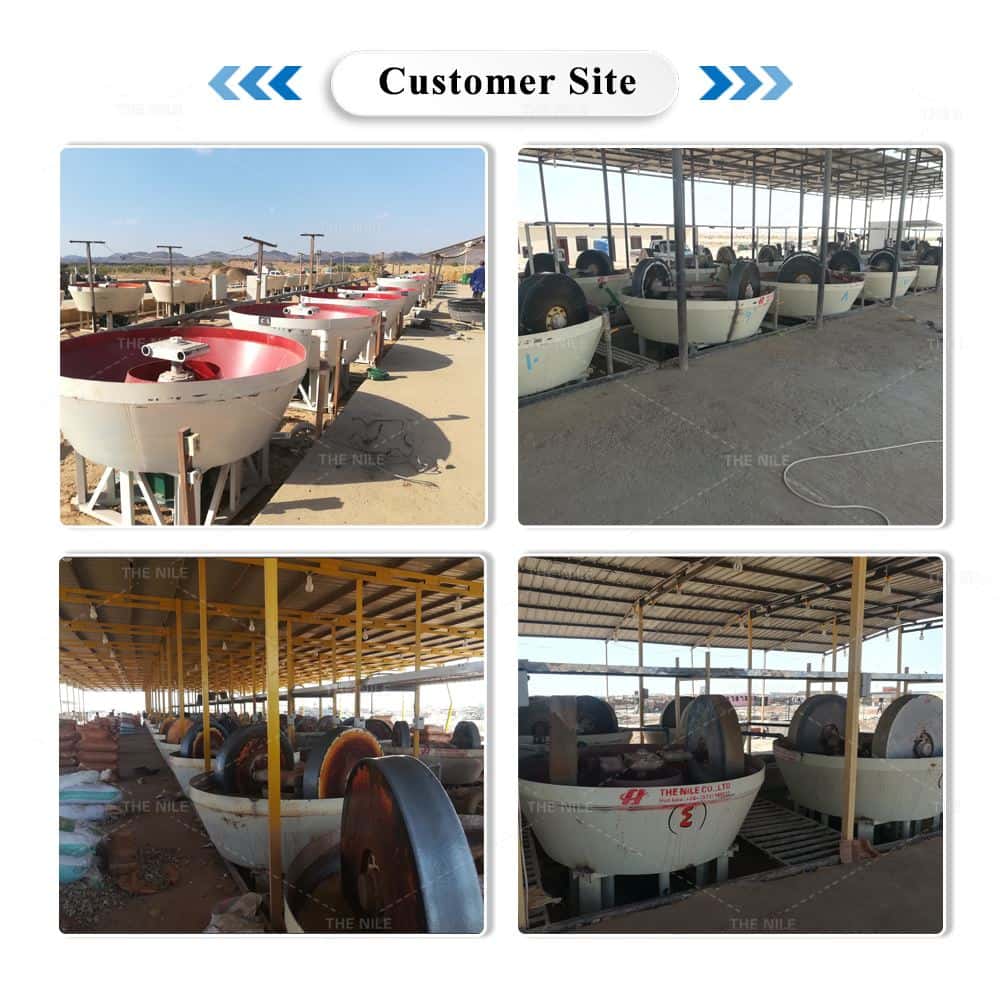

Customer case: Mauritania gold election site
Background of the project:
A customer from Mauritania has been looking for high-quality gold selection equipment but has not found suitable gold selection equipment. Through a friend's introduction, I learned that the Nile's gold selection equipment is of good quality and high efficiency. After knowing the customer’s needs, our technical department immediately communicated with the customer and went to the site for on-site inspections to configure suitable gold selection equipment for the customer. Our salesperson also sent the customer a quotation as soon as possible and told the customer in detail how to operate and Show details.
Finally, the customer purchased one hundred wet mills in the Nile and put them into production after various investigations and analyses, and the results were very satisfactory to the customer.
Client feedback:
The gold recovery effect of the wet pan mill that I bought in the Nile really surprised me. For the first time, I can have such efficient gold sorting equipment. Their technical department also went to the site to conduct inspections, and finally configured a suitable wet mill model for me. To your surprise, they also regularly inquire about the use of the machine and come to my door to help me repair the machine. The service is very good. We will continue to cooperate with the Nile in the later period.
| Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
| (mm) | (kw) | (RPM) | (t) | ||
| 1600A | 1600×400×200×500±20 | ≤25 | 30 | 10-12 | 14.5 |
| 1500A | 1500×350×200×460±20 | ≤25 | 22 | 10-12 | 12.3 |
| 1500B | 1500×350×150×460±20 | ≤25 | 18.5 | 10-12 | 11.3 |
| 1400A | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 10 |
| 1400B | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 8.5 |
| 1300A | 1300×250×150×350±20 | ≤25 | 11 | 10-12 | 8.5 |
| 1300B | 1300×200×150×350±20 | ≤25 | 11 | 10-12 | 7.5 |
| 1200A | 1200×220×80×270±20 | ≤25 | 7.5 | 12.5 | 5.5 |
| 1200B | 1200×200×80×250±20 | ≤25 | 7.5 | 12.5 | 5.0 |
| 1100B | 1100×180×80×250±20 | ≤25 | 5.5 | 12 | 4.0 |
