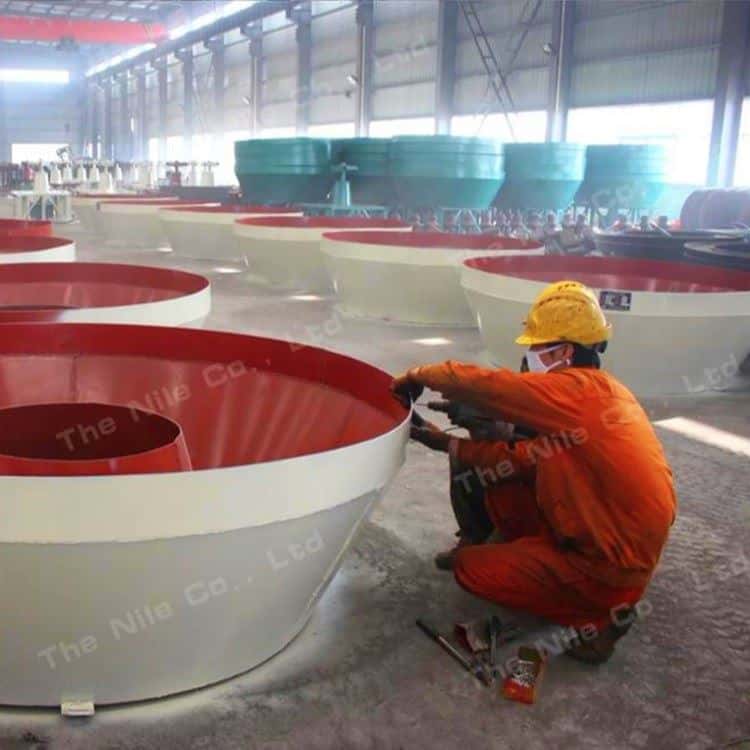

Processing Materials: Gold roller mill is also called wet pan mill or wet grinding machine. It is divided into double roller grinding and three rollers based on the different structures and the most often used is double rollers. It's widely used for selecting nonferrous metals, ferrous metals, and nonmetals, as well as precious metals such as gold, silver, tin ore, coltan ore, tungsten ore, chrome ore, etc.
Technical Parameters
Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
Working Principle of Gold Roller Mill
The main parts of the gold roller mill are the driving shaft, bearing seat, motor, roller, speed reducer, and so on. First, the motor transfers the power to the decelerator. Then the central drive shaft transfers that to the horizontal shaft. Finally, the roller moves the anticlockwise direction, which makes the material in the wet mill ground into fine particles.
Advantages of Gold Roller Mill
1. Uniform grinding makes the high quality finished product.
2. Make full use of resources so that the gold wet pan mill is more energy and more efficient.
3. Stable operation and reliable quality.
4. Low energy consumption, silent and safe operation.
Technical Parameters of Gold Roller Mill
Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
