Gold Milling Machine

Technical Parameters

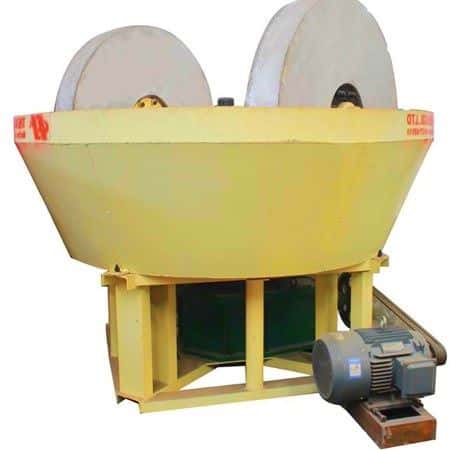

Introduction of Gold Milling Machine

Gold milling machine also called gold wet pan mill, is versatile ore grinding equipment not only for grinding the mineral materials but also for processing the gold amalgam. It is the best replacement for a medium-small capacity ball mill, owing to the excellent performance for wet crushing, small investment, and high output.

Working Principle of Gold Milling Machine

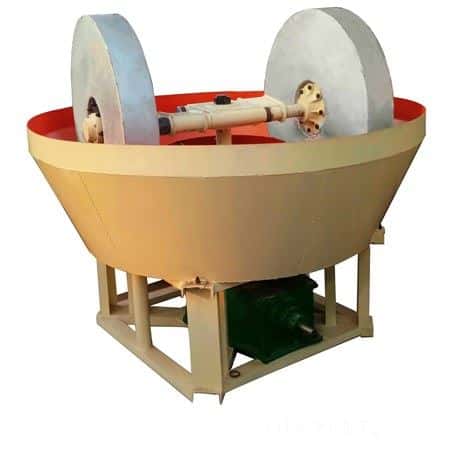

Gold milling machine adopts the working mode of the wheel-type grinding. Firstly, the electric motor drives the power to the speed reducer, and the torque is transmitted to the upper horizontal shaft through the large vertical shaft driven by the speed reducer. Then, the tie rods installed at both ends of the horizontal axis are transmitted to the grinding wheels, so that the grinding wheel generates driving force and the counterclockwise rotation motion is performed along the horizontal direction of the horizontal axis. The working wheel can not only revolve around the large vertical axis of the gold milling machine, but also rotate around the central axis of the roller, and the grinding disc is fixed. The added ore material is subjected to the pressing force from the weight of the drum itself in the wet pan mill. When the roller rotates, the huge friction generated by the grinding disc is completely crushed after repeated extrusion, smashing, and grinding.
