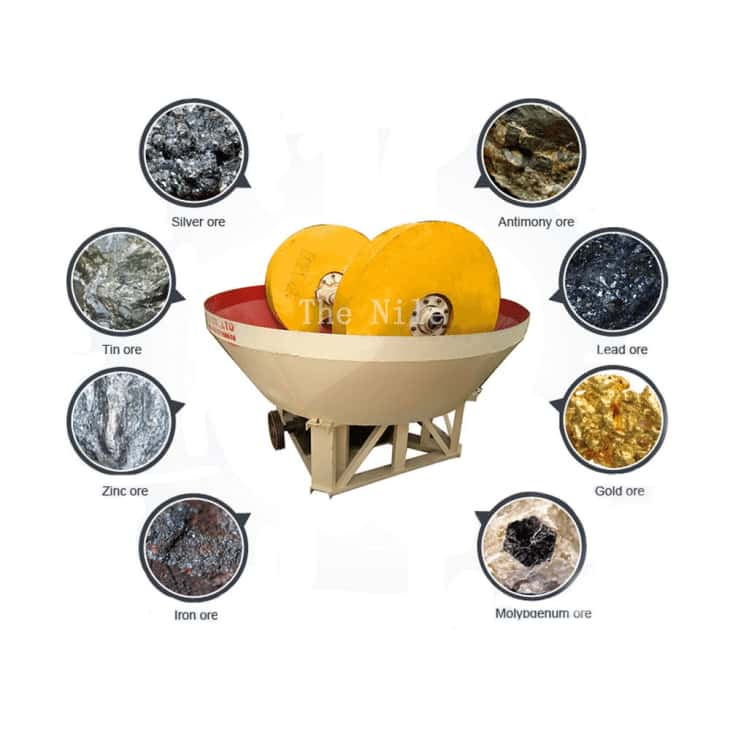

Applied Field: Wet pan mill is a modern grinder which usually used in small and medium-sized concentrate plants. Wet pan mill grinding machine is widely used in the grinding and beneficiation of various metal minerals, non-metallic minerals, rare metals and other materials such as gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, etc.
Technical Parameters
| Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
| (mm) | (kw) | (RPM) | (t) | ||
| 1600A | 1600×400×200×500±20 | ≤25 | 30 | 10-12 | 14.5 |
| 1500A | 1500×350×200×460±20 | ≤25 | 22 | 10-12 | 12.3 |
| 1500B | 1500×350×150×460±20 | ≤25 | 18.5 | 10-12 | 11.3 |
| 1400A | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 10 |
| 1400B | 1400×250×150×350±20 | ≤25 | 15 | 10-12 | 8.5 |
| 1300A | 1300×250×150×350±20 | ≤25 | 11 | 10-12 | 8.5 |
| 1300B | 1300×200×150×350±20 | ≤25 | 11 | 10-12 | 7.5 |
| 1200A | 1200×220×80×270±20 | ≤25 | 7.5 | 12.5 | 5.5 |
| 1200B | 1200×200×80×250±20 | ≤25 | 7.5 | 12.5 | 5.0 |
| 1100B | 1100×180×80×250±20 | ≤25 | 5.5 | 12 | 4.0 |

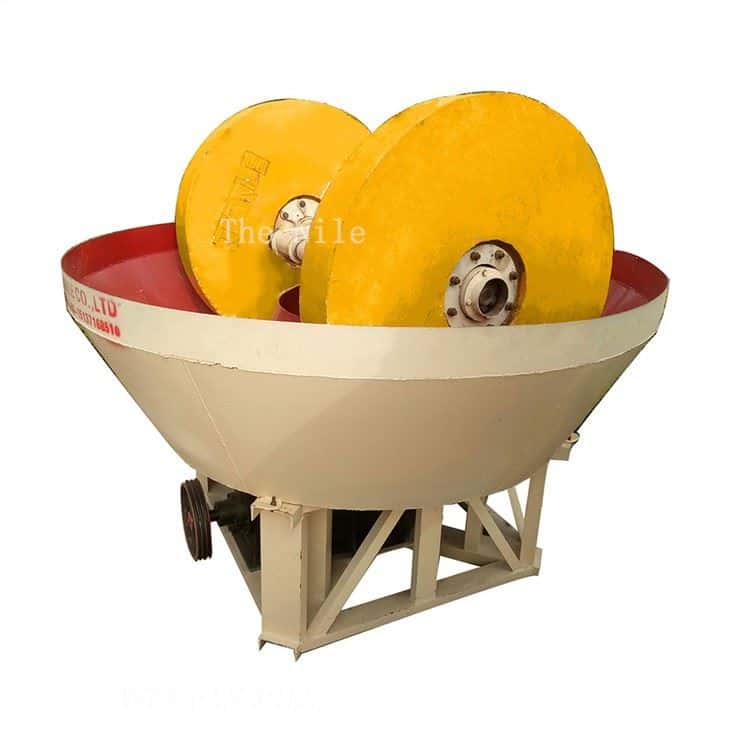

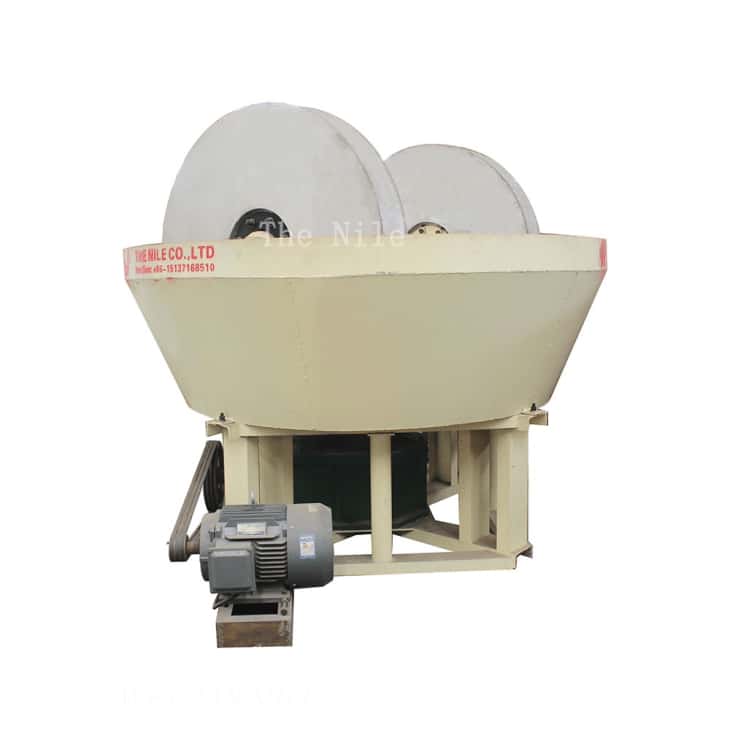

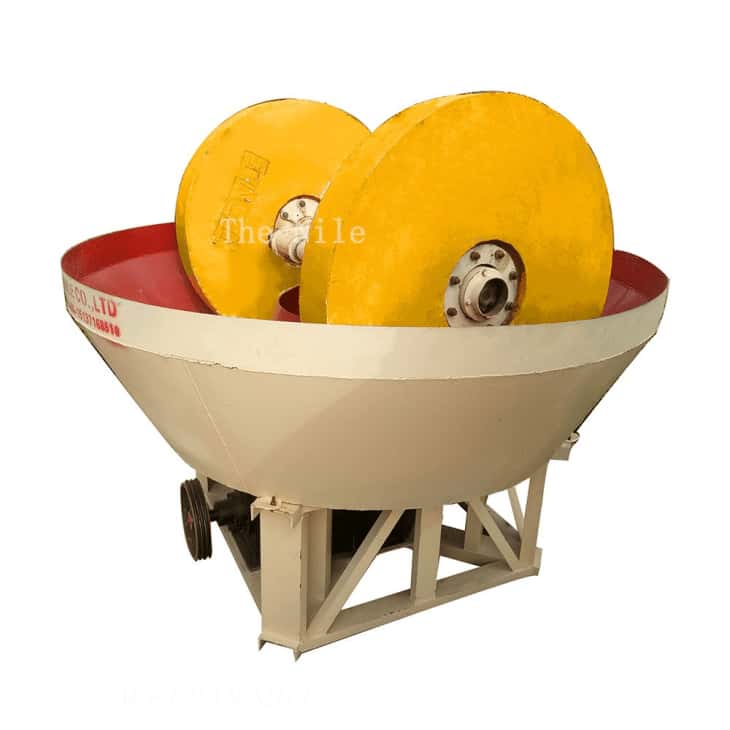

Wet pan mill grinds ores by wheel drive. First, power is transferred from the motor to the reducer, then to the horizontal axis, and finally to the grinding wheel. The wheels can be rotated around the vertical shaft of the wet pan mill and its own shaft while the grinding base remains still. The ore is repeatedly pressed, rubbed, and ground.
Working Principle of Wet Pan Mill
Features of Wet Pan Mill
1. Professional design and reasonable technical data.
2. Short grinding and mixing cycle and high efficiency.
3. Low noise and consumption. The material can be ground and mixed evenly.
4. Compact structure, easy operation, and maintenance.

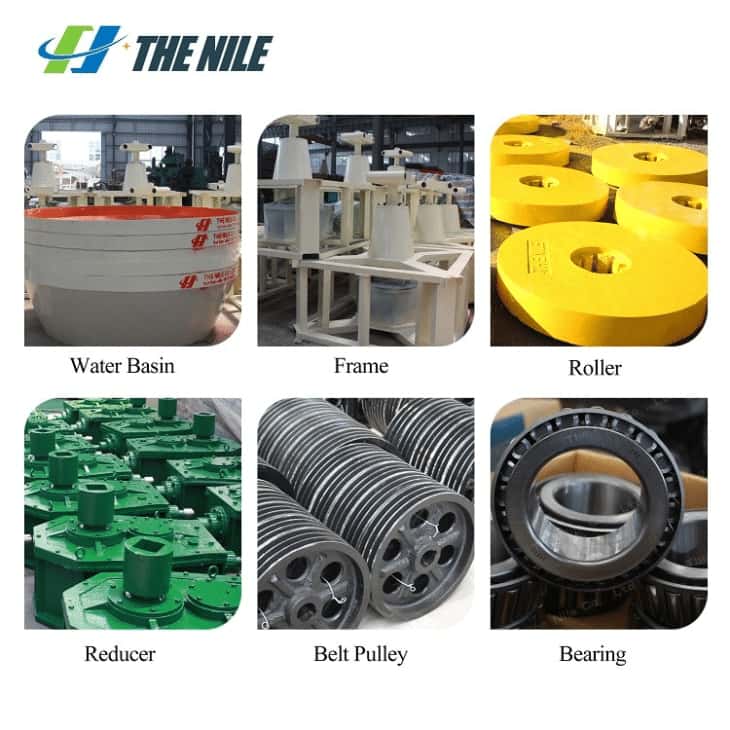

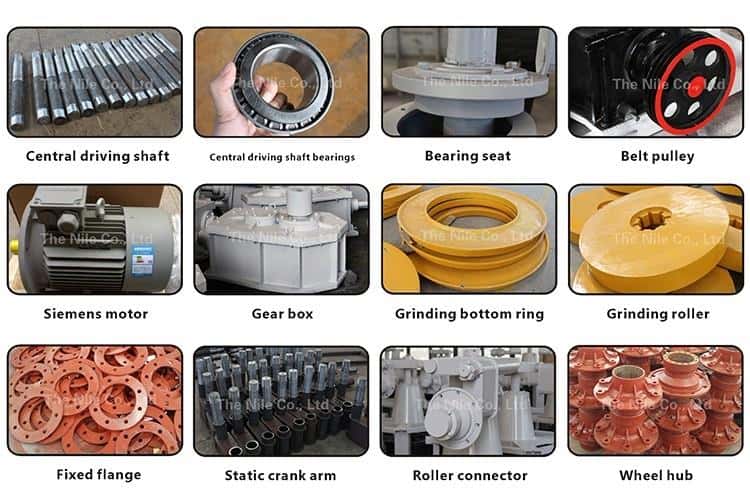

Details

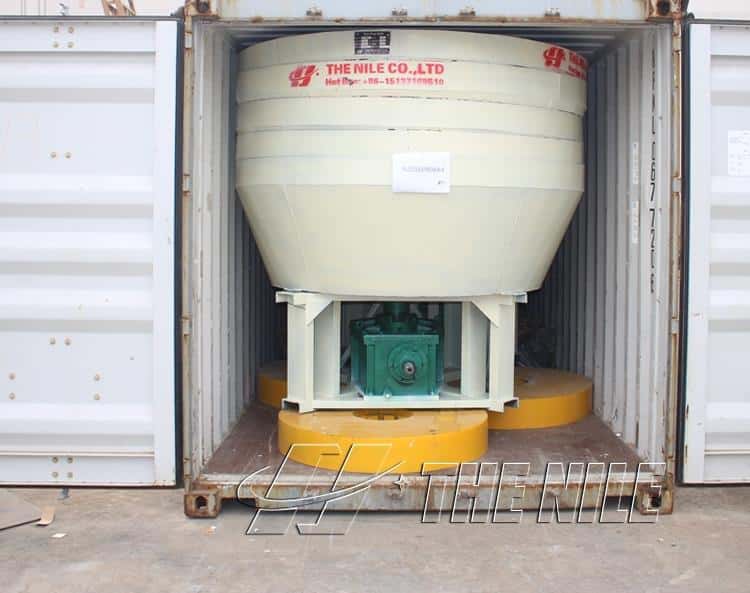

Packing&Shipping
A standard package in export containers
FAQ
Q1: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q2: What about the quality of your products?
A: Our products are manufactured strictly in accordance with national and international standards, and we always test every piece of equipment before delivery. We guarantee if the quality of products is different from the description we described before your placing order, we promise a 100% refund.
Q3: Is the price of products reliable?
A: Yes, we are a manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
