Gold Grinding Mill

Technical Parameters

Introduction ofGold Grinding Mill

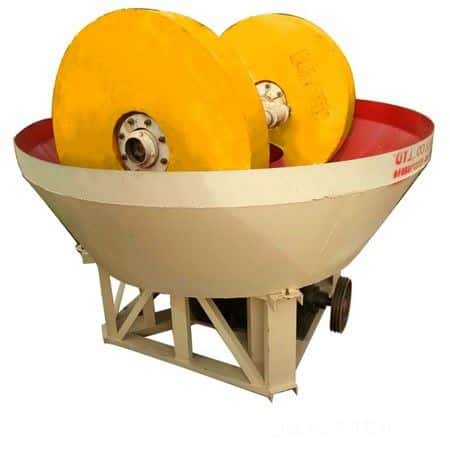

The gold grinding mill is also called a wet pan mill or wet grinding machine, which is praised by users because of the features of low investment and consumption, high production capacity, good efficiency, easy installation, and maintenance. In addition, it is excellent equipment that can instead of ball mill for medium-sized and small enterprises. The gold grinding mill machine is mainly used for separate gold, zinc, silver, lead, iron, molybdenum, copper, antinomy, and so on.

Working Process of Gold Grinding Mill

1.Firstly, the motor of the wet pan mill will transmit the motive power to reduction gears under the drive of reduction gears that passing through a large vertical spindle, then the power cabinet transfers to the above whippletree.

2.The whippletree pulls the two runner wheels clockwise rotation. The runner wheels are not only revolute around the large vertical spindle but also could relate by themselves.

3.After adding into gold ore, the materials are under the extrusion of grinding roller weight to revoluting and rotating with runner wheels. When twisting that coming into being huge friction force with grinding base, after suffering repeated extrusion, rub, grinding that be crushed by gold grinding mill thoroughly.

4.Under the effection of grinding roller operating, the crushed materials and the water mixed intensively to float on it uniformly. Then passing through the overflow discharge gate that setting up on the mill basin to discharge, after that enter into the next operation procedure to process.

5.Coarse mineral was sunk on the bottom of grinding base for grinding and crushing again, till the fineness could reach to standard floating on it.
