Gold Separator

Technical Parameters

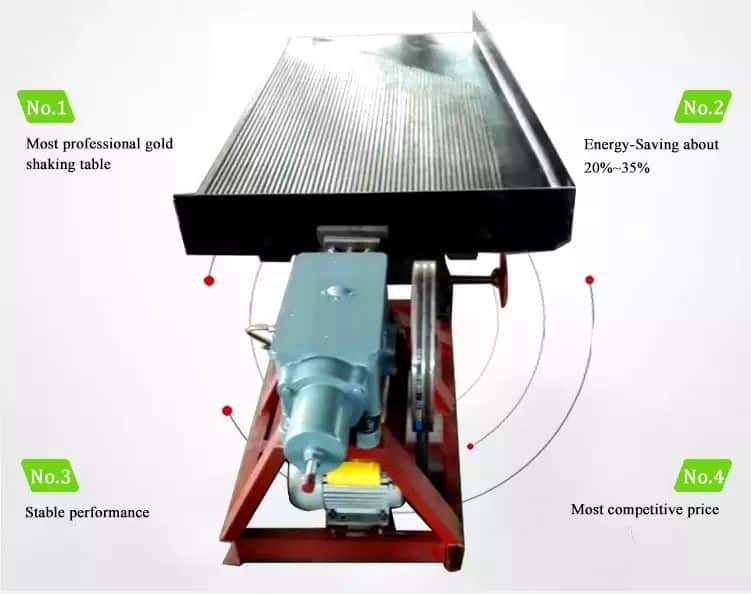

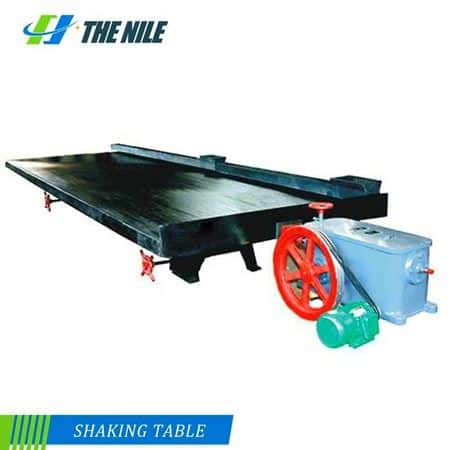

Main Structure of Gold Separator

The gold separator is mainly composed of bed head, motor, slope regulator, bed surface, ore trough, water tank, rifle bar, and lubrication system. The longitudinal reciprocating motion of the bed surface is realized by the crank connecting rod transmission mechanism. The motor drives the big belt pulley to drive the crankshaft to rotate through the belt drive, and the rocker moves up and down. When the rocker moves down, the toggle plate pushes the rear axle and the reciprocating rod to move backward. The spring is compressed by the bed through the linkage seat and the reciprocating rod.

Features of Gold Separator

1.Because of the high enrichment ratio, the gold separator is often used to obtain concentrate and separate tailings, which can effectively deal with fine-grained materials.

2.The bed surface of the gold separator is flat, with good corrosion resistance, sturdiness, and durability, not easy to deform, and convenient for local repair.

3.The transmission box of the mineral processing shaker runs reliably, with few easy-to-wear parts and no oil leakage.

4. The horizontal slope adjustment range is large, and the stroke is easy to adjust. When the horizontal slope and stroke are changed, the bed surface can also maintain stable operation.
