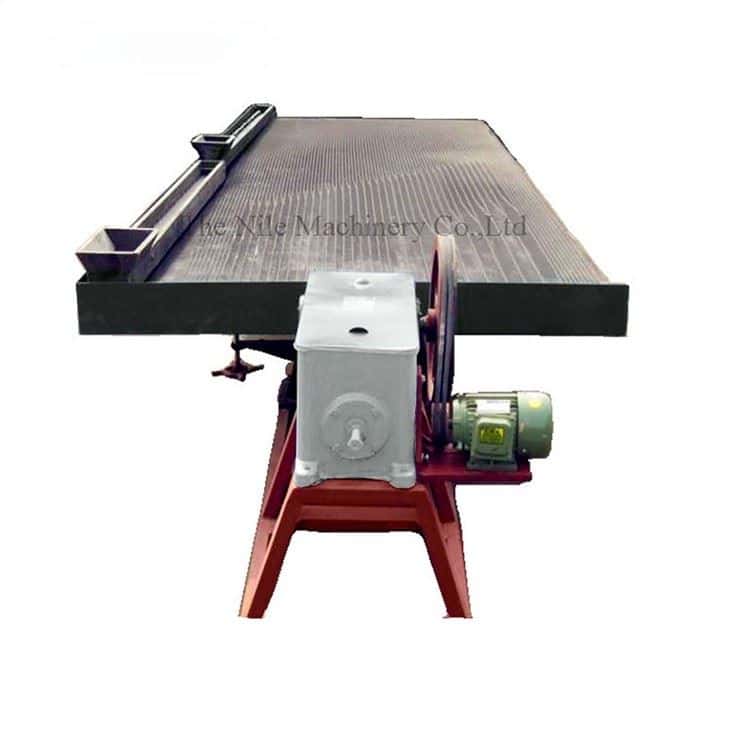

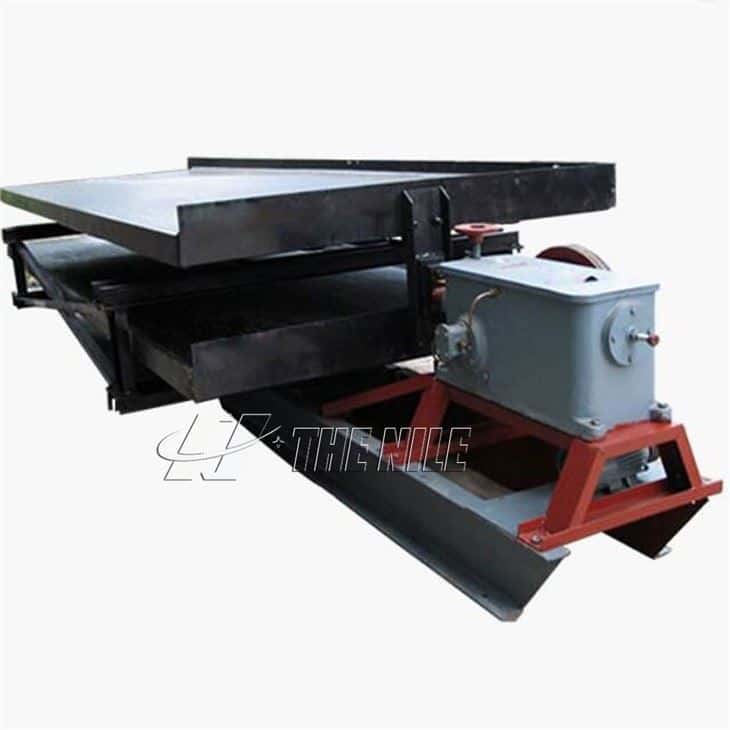

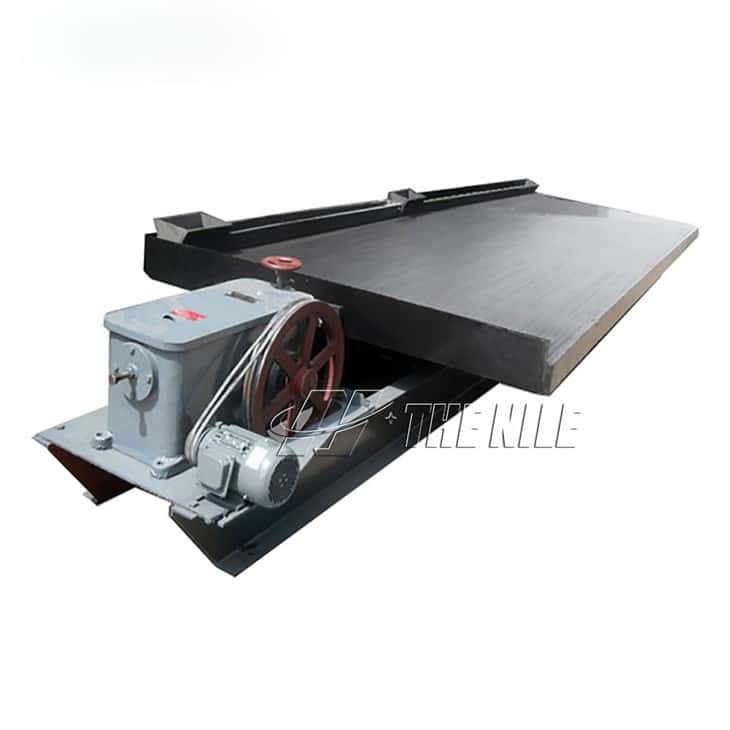

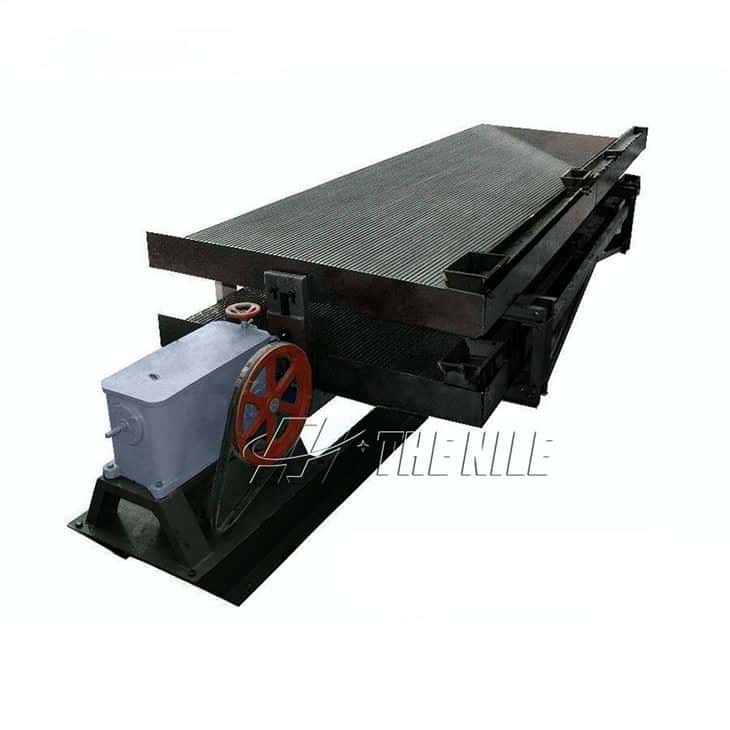

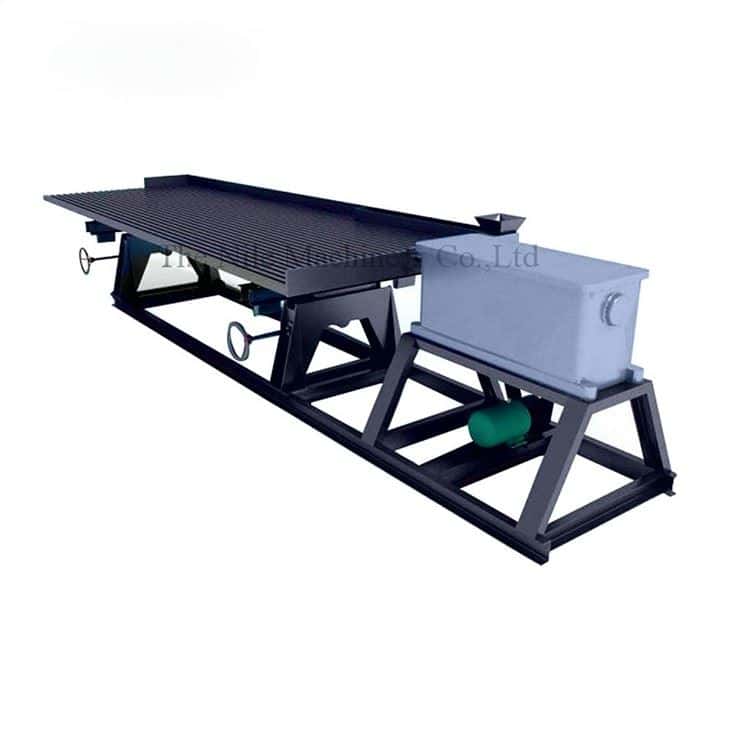

6-S Gold Shaking Table Machine For Sale

Product introduction:

The 6-S gold shaking table is a process that facilitates the combined action of mechanical shaking and water washing to separate the mineral particles according to their specific gravity. The 6-S ore shaking table is a gravity separator for the separation of fine-grained materials. It can continuously separate concentrates, second-grade ore, and tailings. Suitable for rough selection, cleaning, and sweeping of coarse sand, fine sand, paper).

Scope of application:

1. The 6-S shaker is one of the necessary machines for gold sand extraction in gold mines;

2. The 6-S gold ore vibrating table is widely used to separate gold, tin, tungsten, chromite, silver, diamond, zircon, cobalt, tantalum niobium, lead, zinc, copper, antimony, other rare metals, and precious metal ores.

The working principle of the 6-S shaking table machine:

When the high-efficiency 6-S gold shaking table is driven by the transmission box for reciprocating motion, the slurry with a concentration of about 25%-30% is sent to the feeding trough, and at the same time, the lateral flushing water is supplied from the feeding trough, so the mineral particles do not reciprocate under the gravity, the impulse of the lateral flow water, and the bed surface. Under the action of the inertia and friction generated by the symmetrical movement, it is layered according to specific gravity and particle size, and moves longitudinally along the bed surface and laterally along the inclined bed surface. The ore particles with different specific gravity and particle size gradually flow down in a fan shape from side A to side B along with their respective moving directions and are discharged from different areas of the concentrate end and tailings side respectively, and finally are divided into concentrate, medium ore, and tailings.

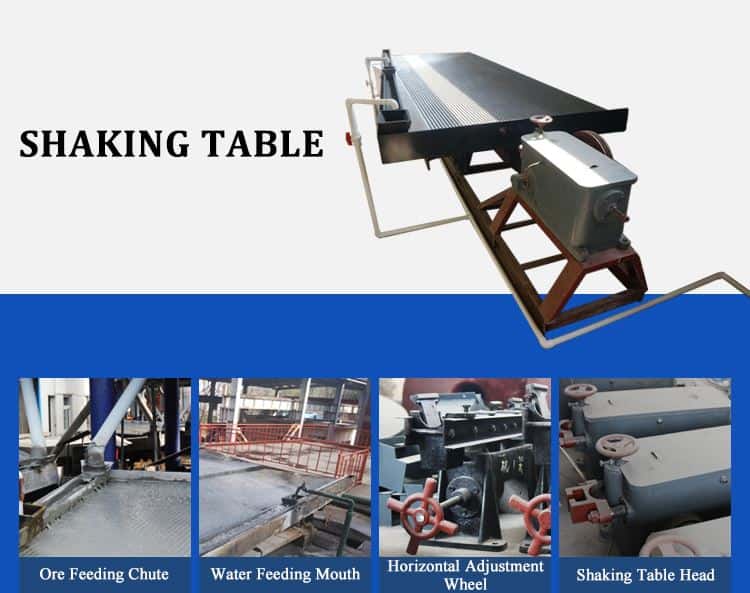

Features of gold mining 6-S shaking table for sale:

1. The horizontal slope adjustment range is large, and the stroke is adjustable (stable operation during replacement).

2. The deck surface is smooth, has good corrosion resistance, is firm and reliable, and is not easily deformed

3. No reagent consumption, high work efficiency, clean sorting, and low power consumption.

4. The head of the platen runs reliably, with few wearing parts and no oil leakage.

Company description：

The Nile Machinery Co., Ltd. is committed to designing various equipment such as stone crushing equipment, gold beneficiation equipment, mineral ore beneficiation equipment, and sand making equipment, which are widely used in electric power, metallurgy, mining, quarry, and other industries. The products are exported to all parts of the world, especially in Europe, America, Asia, and Africa, and are well received by customers.
