Processing Materials: Shaking table which is also called a table concentrator, its a gravity separation device for fine minerals. 6s Shaking table is effective in processing precious and base metal, rare metal, and non-metallic minerals, widely used in the separation of gold, silver, tin, columbium, tantalum, titanium, barium, tungsten, iron, chrome, manganese, zircon, lead, zinc, mercury, copper, aluminum, etc.
Technical Parameters
Model NO. | 6S | Table Size | 4520*1850*156mm | |
Stroke | 8-36mm | Motor Power | 1.1kw | |
Time/min | 240-380 | Dimension | 5630*1850*900mm | |
Landscape | 0-5° | Table Weight | 650kg | |
Material | Feeding Size | Mine Density | Flushing Water | Capacity(t/h) |
Coarse Sand | 2-0.5mm | 10-30% | 0.5-3.5t/h | 1-2.5 |
Fine Sand | 0.5-0.074mm | 0.8-1.2 | ||
Ore Mud | 0.0774-0.037mm | 0.3-0.6 | ||

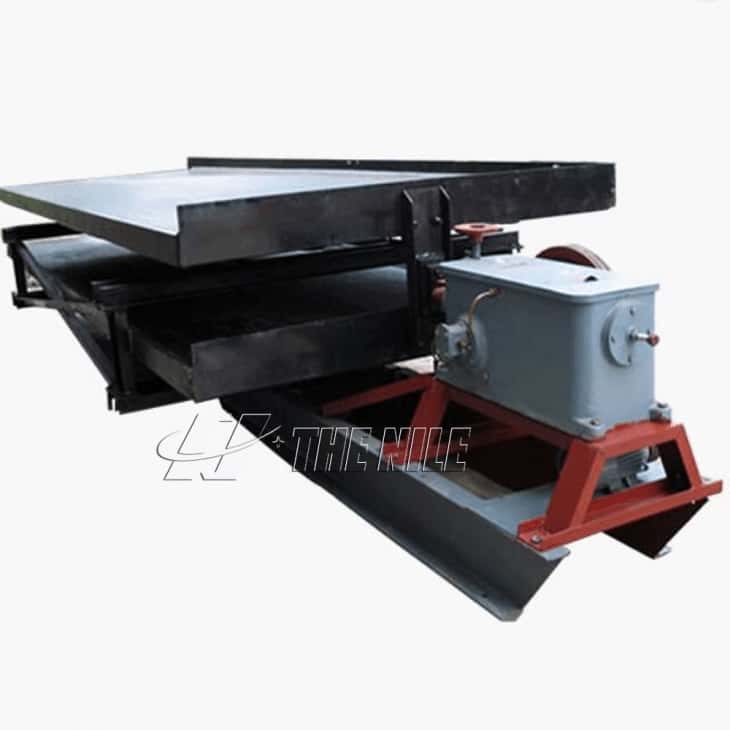

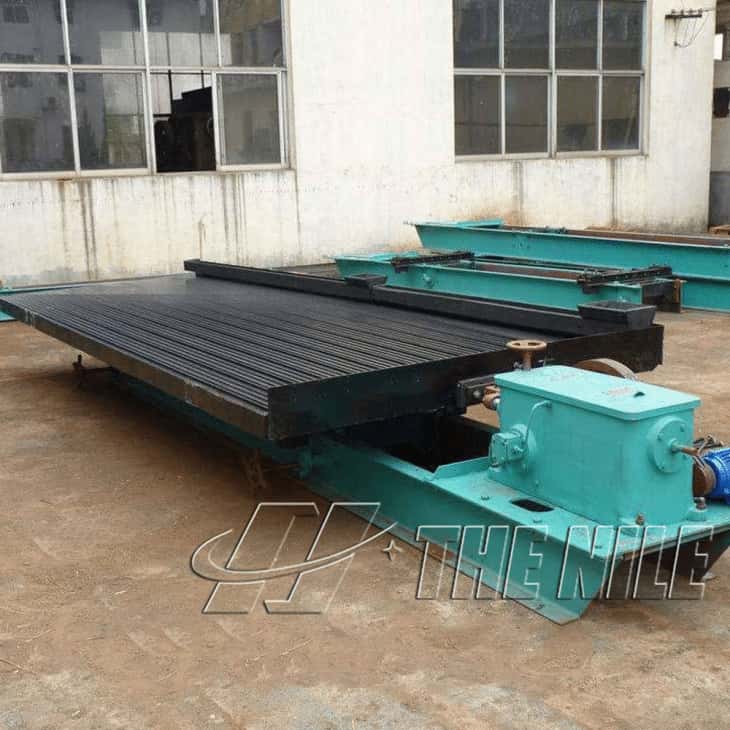

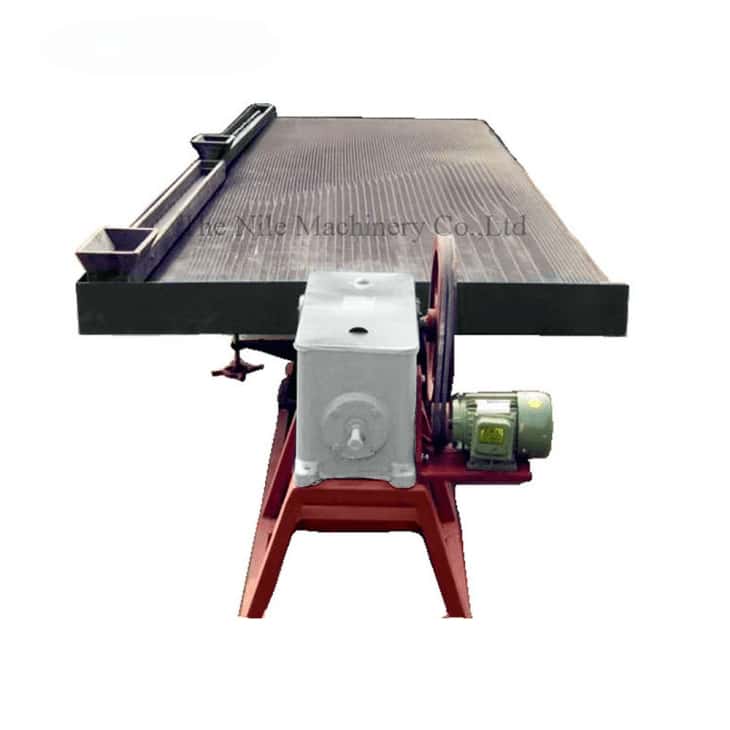

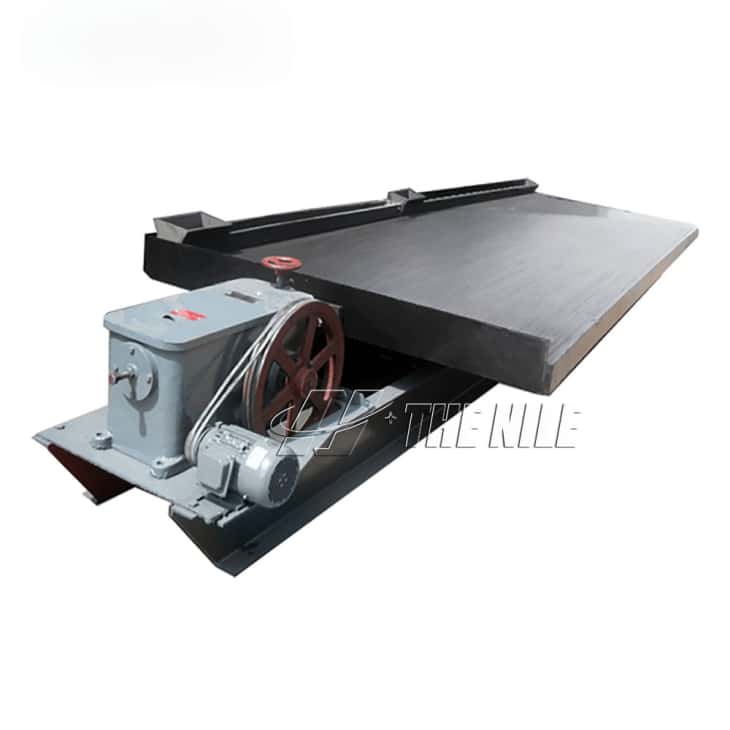

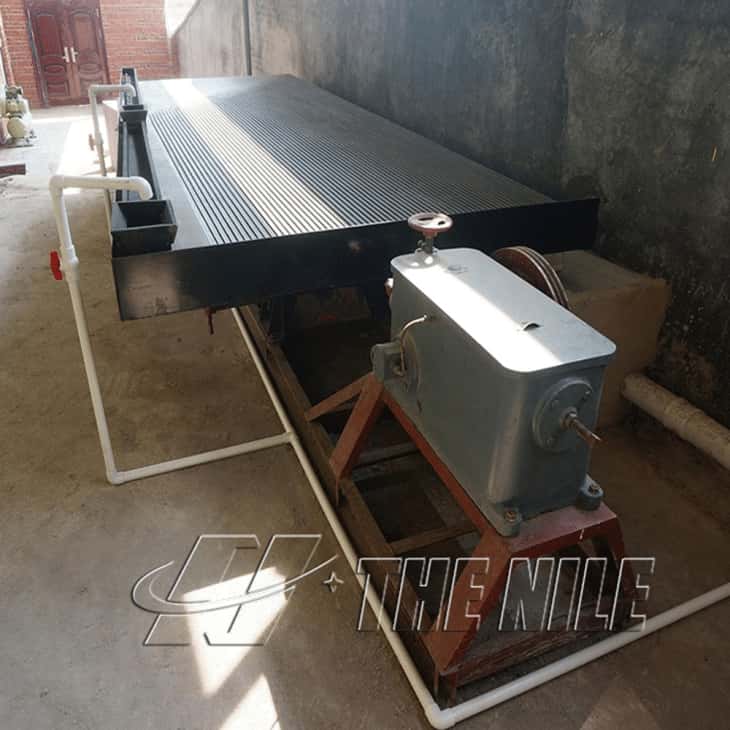

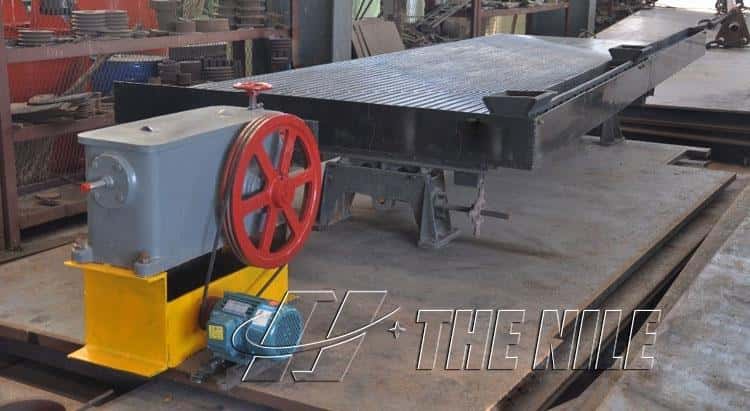

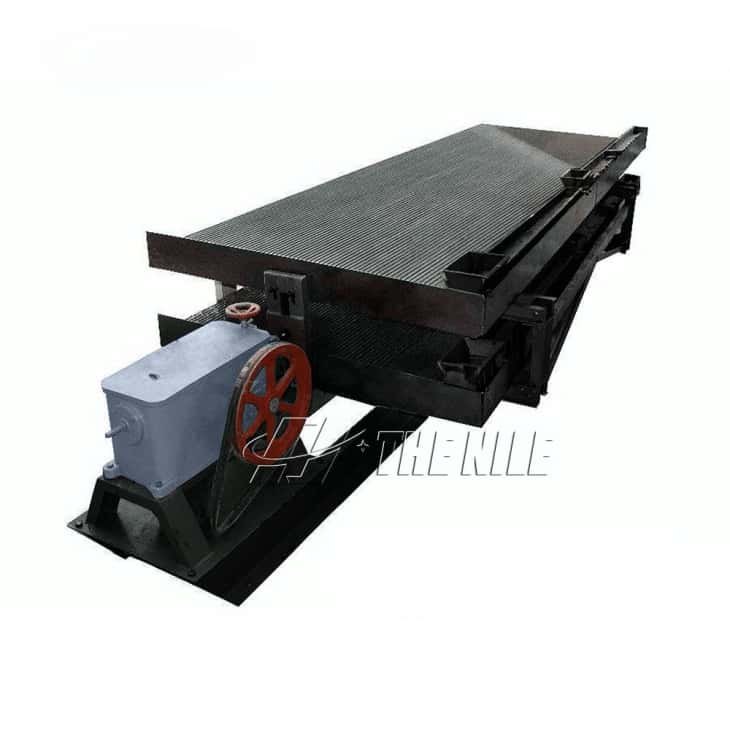

Introduction of High Recovery Rate 6s Shaking Table
The coarse ore deck of 6s shaking table is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck of shaking table is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck of shaking table is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.
Working Principleof High Recovery Rate 6s Shaking Table
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
Advantages of 6-S Shaking Table
1. High recovery ratio
2. High concentration ratio
3. Easy installation
4. Simple operation
5. Deck constructed of fiberglass
6. Seven different decks to choose
7. Long working life
8. Adjustable stroke length and speed.

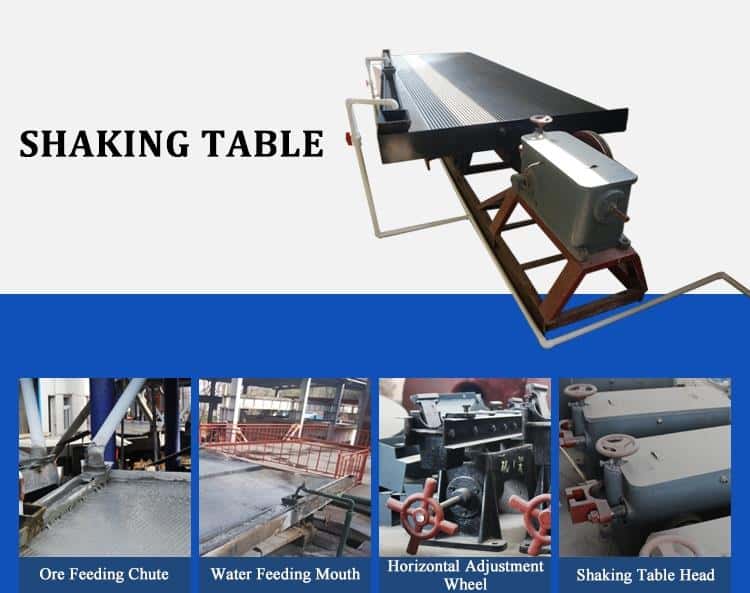

Details

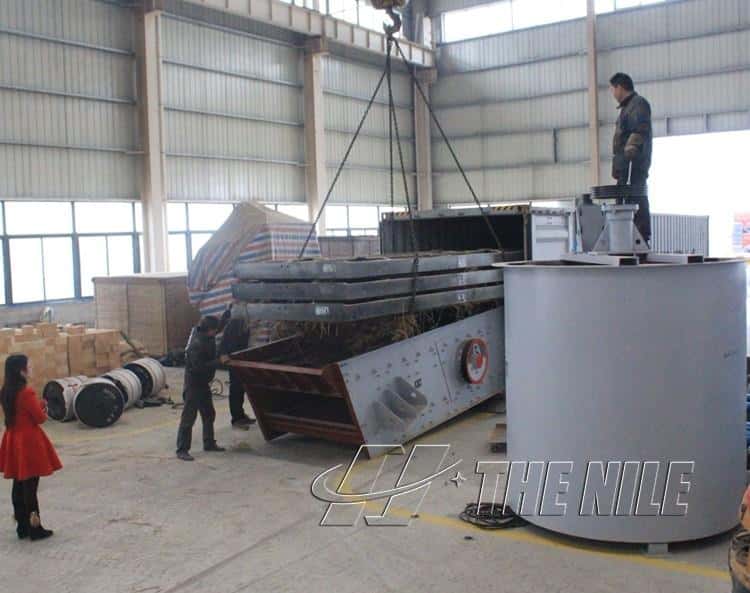

Packing&Shipping
Standard package in export containers
FAQ
Q1: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q2: Do you provide a beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, includingtin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q3.What is the price?
A: It's different from each machine. For the complete same machine, we can promise our quality is the best when the price same as other competitors and our price can be lowest when the quality at standard level.
