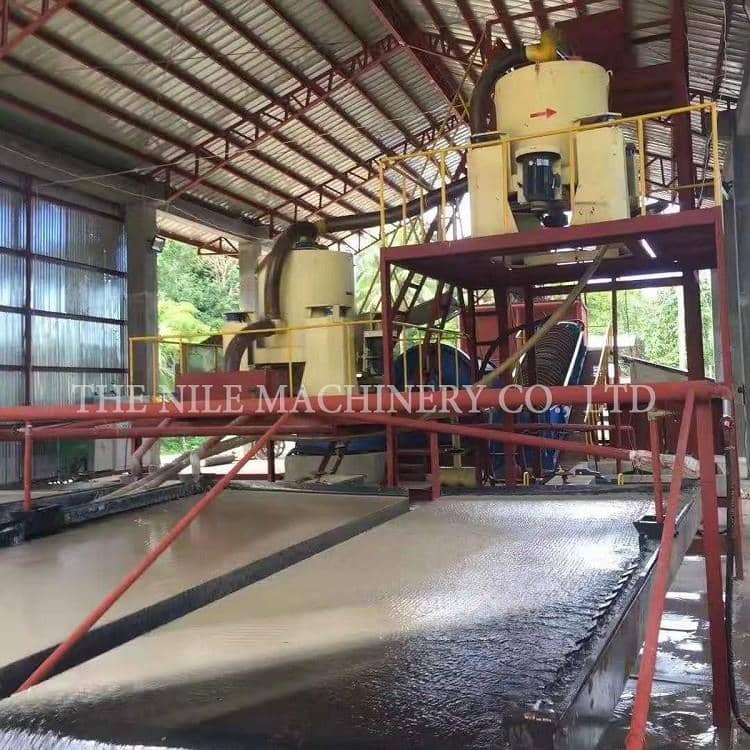

Gravity Beneficiation Line For Gold Ore
| Gravity beneficiation is an application of earlier mineral processing methods. According to the difference in density between minerals, the gravity, fluid dynamics or mechanical force in the moving medium is different, so that the process of sorting ore by density is realized. The method still occupies an important position. |
PROCESS | EQUIPMENT | DETAILED INFORMATION |
Screening | Double Rotary Drum Screen | Drum Screen is matched with integrated hopper, which has water spray pipe around and also water valve. Inside layer of screen is perforated screen plate, mesh is 20mm. Outside layer of metal screen, mesh is 2mm. The whole machine is also included double row water pipe and discharging Hopper. |
Transporting | Belt Conveyor | Taking out big particle. |
Pumping | Pump Pond | Steel structure, vertical slurry pump can install on it, including beam of pump. |
Pumping | Vertical Slurry Pump | Two sets, one is for standby, including discharged pulp hose and beam clamp. |
Roughing | Gold Centrifugal Concentrator | Whole set, including discharged soft tube. |
Buffering and Mixing | Mixing Tank | Discharged hole has pinch valve and soft tube |
Concentrating | Shaking Table |
|
Power | Electric Control Cabinet | Integrated control cabinet including cable. |
Note: Whole process, only needs to access external power supply and four water providing points. | ||
The general complete beneficiation production line includes feeding equipment, crushing equipment, milling equipment, grading equipment and metal smelting equipment. Advantages: the equipment structure is simple, the ore dressing cost is low, so the gravity dressing process can be used as long as the conditions are suitable. |
