Factory Direct Sale Jaw Stone Crusher

Product description:

Type:

Jaw crusher is often used for primary crusher

Use:

which can be used to crush all materials with compressive strength below 350Mpa, such as basalt, granite, marble, limestone, and so on.

Working process of stone jaw crushing machine

Power source: motor drive

First, the motor of the jaw crusher transmits the power to the pulley through the V-belt

The second pulley, pulley rotates the eccentric shaft to drive the caliper body to swing back and forth.

When the movable jaw is close to the fixed jaw, the volume of the crushing cavity is reduced, and the material in the crushing cavity is crushed or split.

When the jaw of the jaw crusher moves, the volume of the crushing cavity becomes larger.

Small pieces of crushed materials are discharged from the crushing cavity

The material is discharged from the feed port in a continuous circular motion,

Realize the crushing operation.

General working process

Motor →Belt pulley→movable jaw→fixed jaw (again and again)

The main part of the jaw crusher for sale

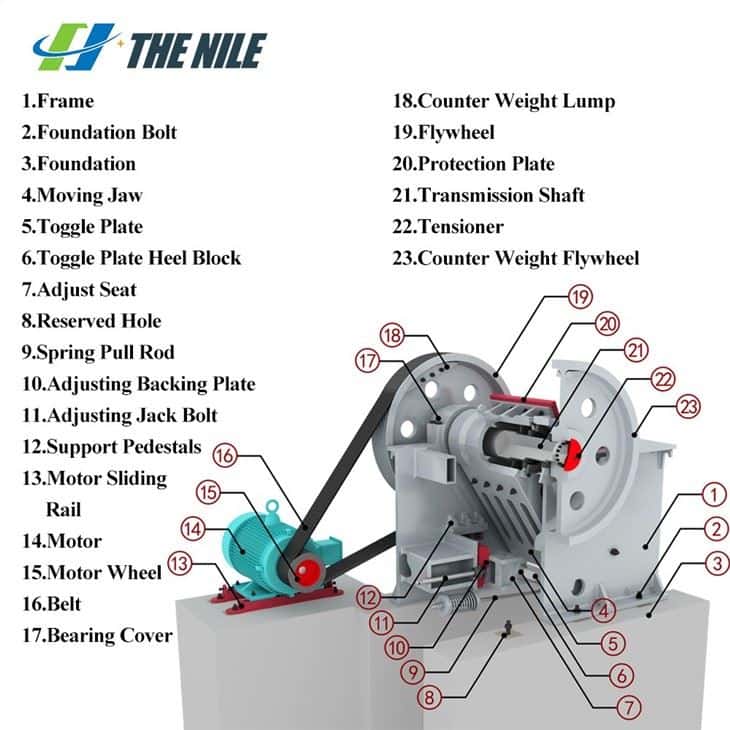

The main part of the Jaw stone crusher: rack section; eccentric shaft rotating part; working part of crushing chamber; safety device; discharge port adjustment device

Advantages:

PE jaw crushing machine advantages: High performance; good stability; high reliability; Easy to operate and maintain; wide application
