Processing Materials: Tracked jaw crusher is used for crushing limestone, basalt, granite, steel slag, quartzite, marble, river pebble, etc. It's widely applied in highways, railways, coal mines, hydropower projects, construction waste treatment, sand, and gravel plants.
Technical Parameters
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |

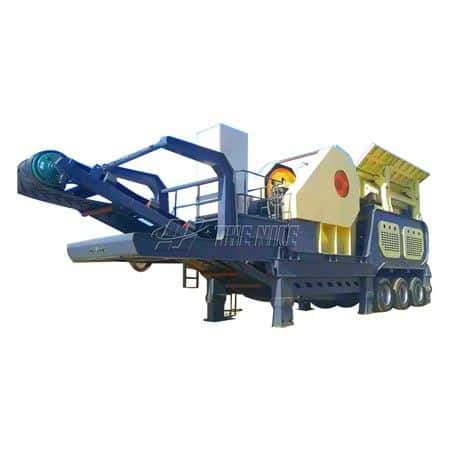

Introduction of Tracked Jaw Crusher

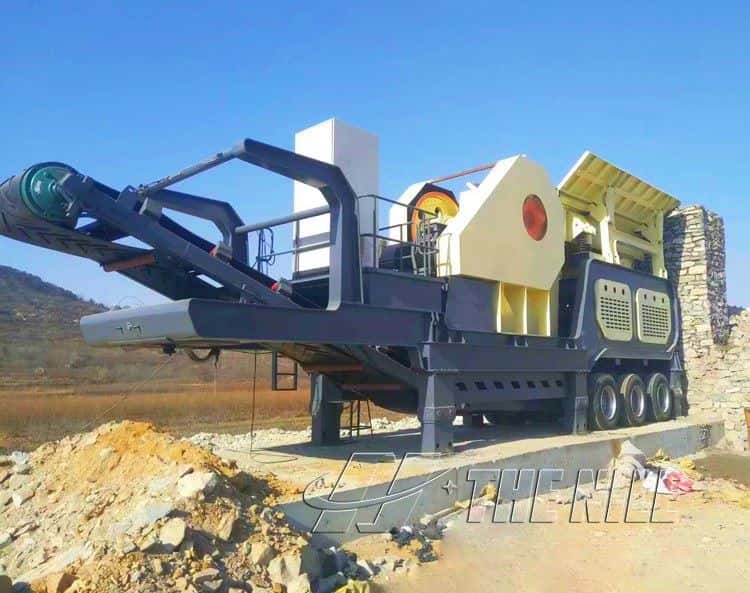

A tracked jaw crusher is a jaw crusher that can move freely in the sand factory. The whole equipment consists of four systems: feeding, screening, conveying and crushing. Users do not need to carry out complicated foundation construction and can quickly put it into production with simple installation. According to different production conditions, users can choose single-machine operation or multi-machine combined operation.
Performance Advantages of Tracked Jaw Crusher
1.Reduce the operation cost. The integrated unit structure eliminates the foundation construction cost, the materials do not need to be transported back and forth, and only one or two workers are required on-site, which can help users save a lot of costs during operation.
2.Free collocation. The model of the main mobile jaw crusher can be replaced according to the different requirements of users, and it can also be equipped with other medium and fine crushing equipment, which is very flexible.
3.Dual use of oil and electricity. The tracked jaw crusher adopts a diesel engine and ordinary electric motor to supply energy, which can be switched by one button. The power is very strong, and it can work for 20 hours a day.
Technical Parameters of Tracked Jaw Crusher
Model | Max. Feeding size | Discharge size | Capacity | Motor power | Weight | Dimension |
Pe150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
Pe250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
Pe400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
Pe400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
Pe500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
Pe600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
Pe750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
Pe900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
Pe1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
Pex150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
Pex250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
Pex250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
Pex250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
