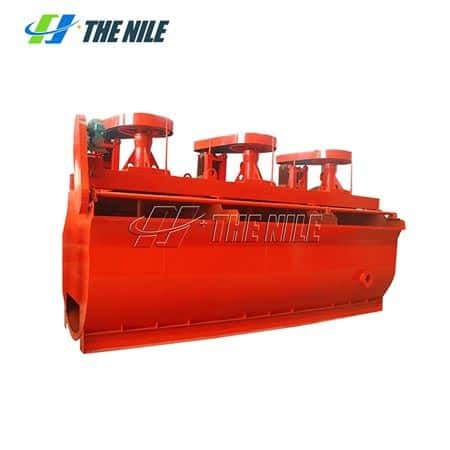

Froth Flotation

Structure of Froth Flotation

Froth flotation is mainly composed of impeller, cover plate, main shaft, central cylinder, tank body, etc. The entire impeller structure is installed on the main girder of the trough and is driven by a motor through a V-belt. The structural feature of the froth flotation is that the impeller is composed of closed double truncated cones, which can produce strong pulp down circulation. It can also be equipped with a pulp automatic control device to adjust the liquid level.

Advantages of Froth Flotation

1.The impeller of the froth machine is composed of a closed double cone, which can produce strong pulp down circulation.

2.Large inspiratory capacity and low power consumption.

3.Each tank has the triple functions of air suction, slurry suction, and flotation, forming its own flotation circuit, without any auxiliary equipment, and horizontal configuration, which is convenient for process changes.

4.The slurry circulation is reasonable, which can greatly reduce the precipitation of coarse sand.

5. It is equipped with automatic control and electric control devices for pulp surface, which easy to adjust.
