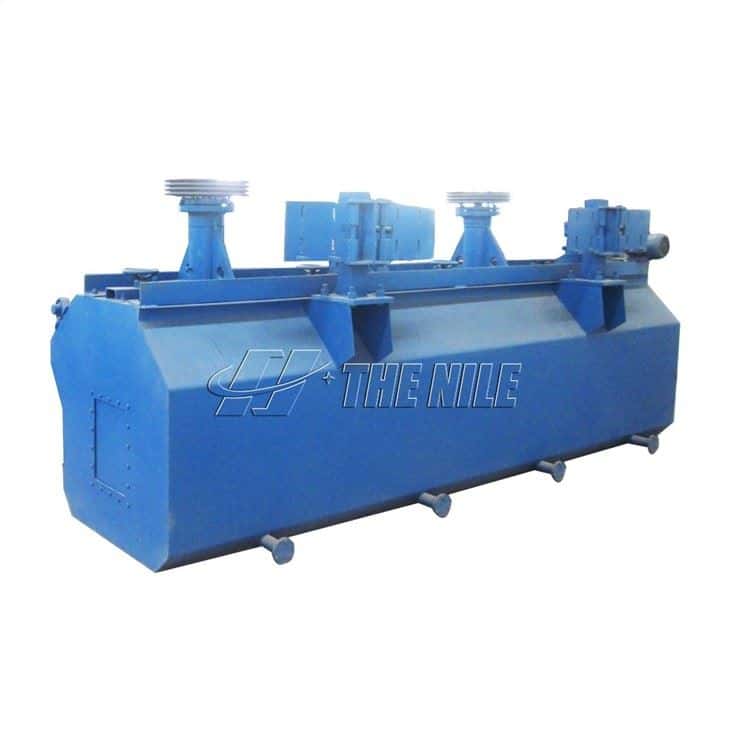

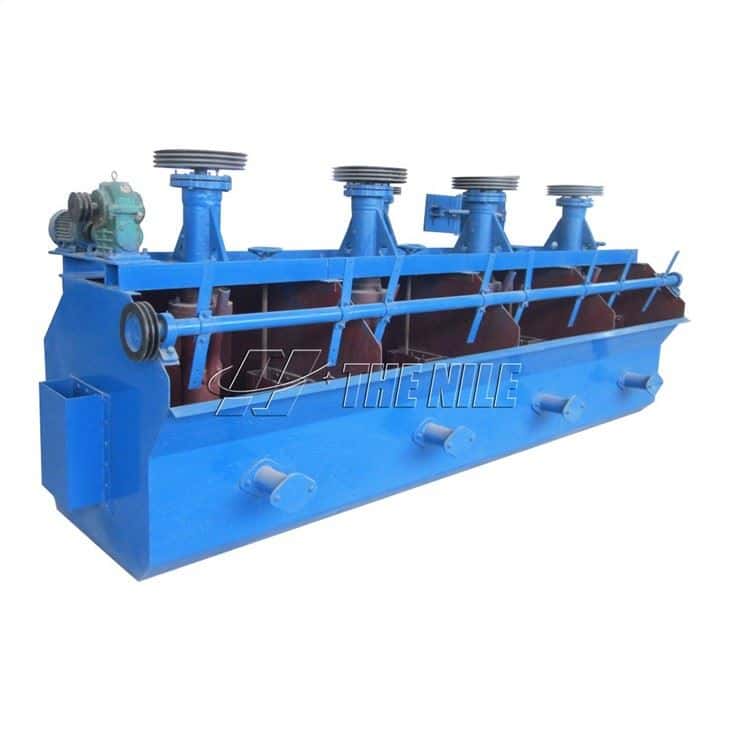

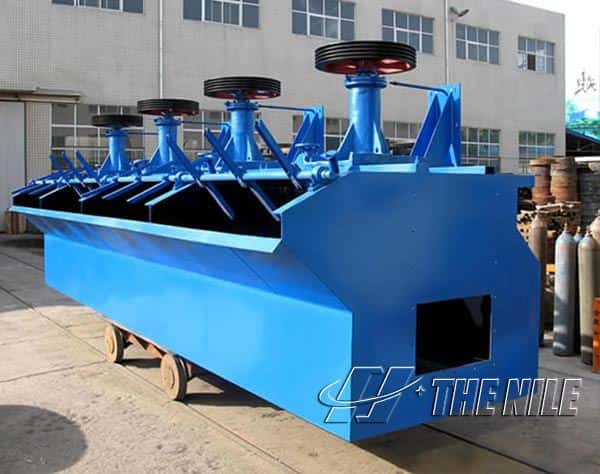

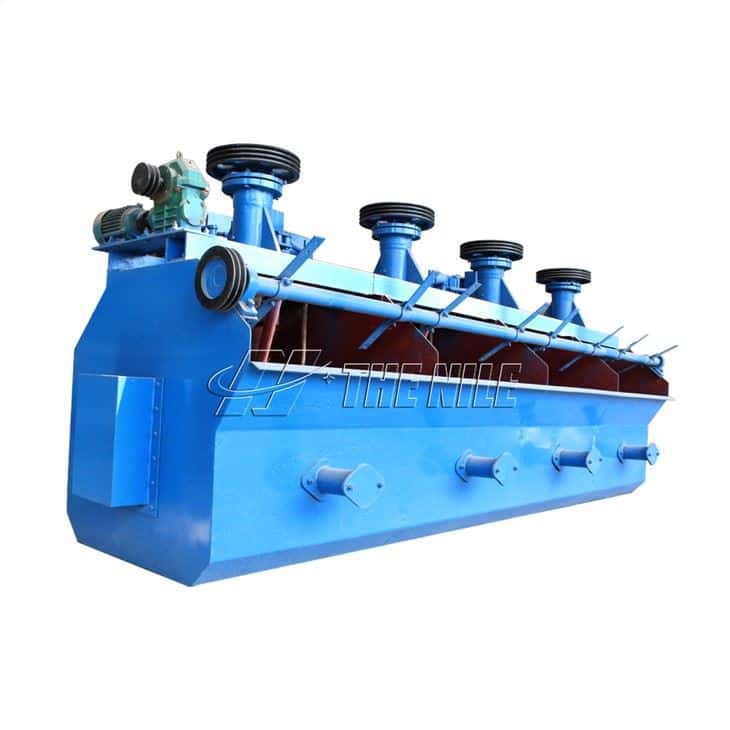

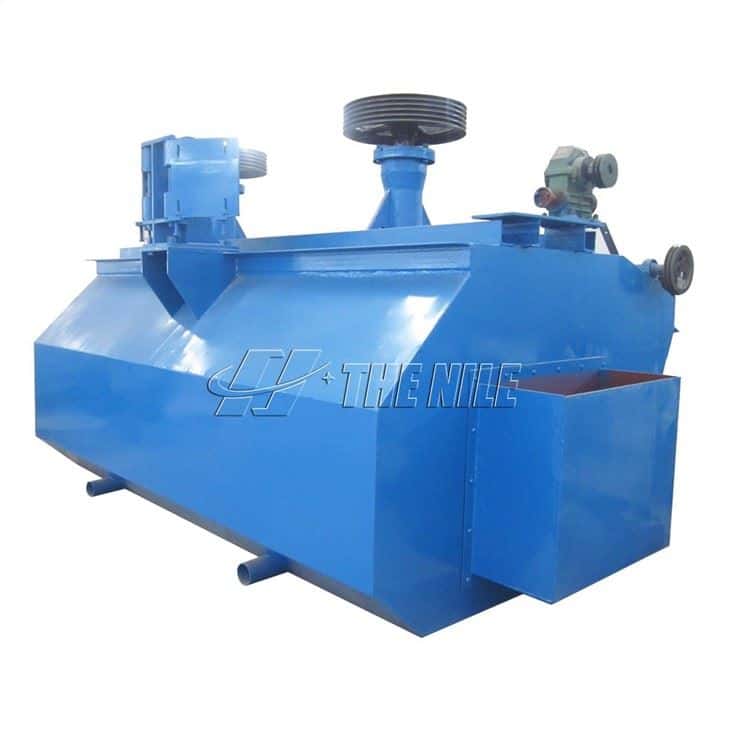

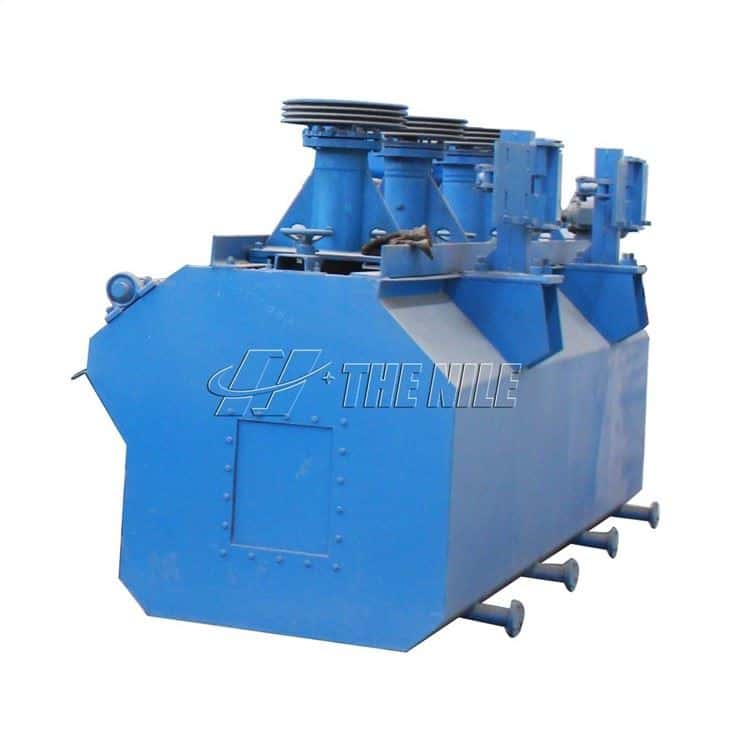

SF Series Flotation Machine

Product description:

The SF Series Flotation Machine has the triple functions of air suction, slurry suction, and flotation. It forms its own flotation circuit without any auxiliary equipment. The horizontal configuration is convenient for process changes. Flotation machines are often made into many groups during the sorting operation. According to the requirements of the beneficiation process, they can be divided into different groups such as roughing, sweeping, and beneficiation to meet the needs of different production processes.

The working principle of the flotation ore machine

When the impeller rotates, the slurry in the tank is sucked into the blades of the impeller from the lower end of the impeller through the bottom of the tank. The holes on the periphery of the impeller enter between the impeller blades. After the pulp and air are fully mixed between the impeller blades, they are discharged from the upper half of the impeller. The discharged ore flow moves upward obliquely and is stabilized and oriented by the stator installed obliquely above the impeller. , Into the entire slot. The mineralized bubbles rise to the surface of the trough to form foam, and the foam flows into the foam tank. The slurry returns to the impeller area for recycling, and the other part enters the lower trough through the flow holes on the wall to carry out the reelection.

Features of SF Series Flotation Machine

1. High recovery efficiency. The high-quality concentrate can be obtained through the flotation machine.

2. The sorting efficiency is high. The flotation separator machine can process various fine-grained ores and solves the problem that useful components in many fine-grained minerals are difficult to recover.

3. The air is evenly distributed, and the mixing effect of air and slurry is good.

4. The solid particles can be completely suspended, and the flotation index is high.

5. Long service life of wearing parts.

Daily maintenance method of SF series flotation ore machine

1. Adjust the amount of pulp. Adjust the opening degree of the sand door through the pull rod to ensure the balance of the ore slurry and prevent the coarse mortar from depositing in the working room.

2. Adjust the height of the liquid level. Adjust the liquid level regulator to adjust the height of the liquid level to ensure that the scraper can effectively scrape the foam and avoid the overflow of the slurry into the foam tank.

3. Adjust the air intake. According to the amount of slurry, the degree of wear of the impeller, and the cover, the amount of ore entering the impeller is adjusted to adjust the air intake.

4. Check the air intake. The air intake has a greater impact on the performance indicators of the flotation machine, and the air intake will decrease with the wear of the impeller and the cover, so the air intake of the flotation machine should be checked frequently.

5. Replace the wearing parts. When the vulnerable parts are damaged, they must be replaced in time to avoid the machine's work efficiency drop.

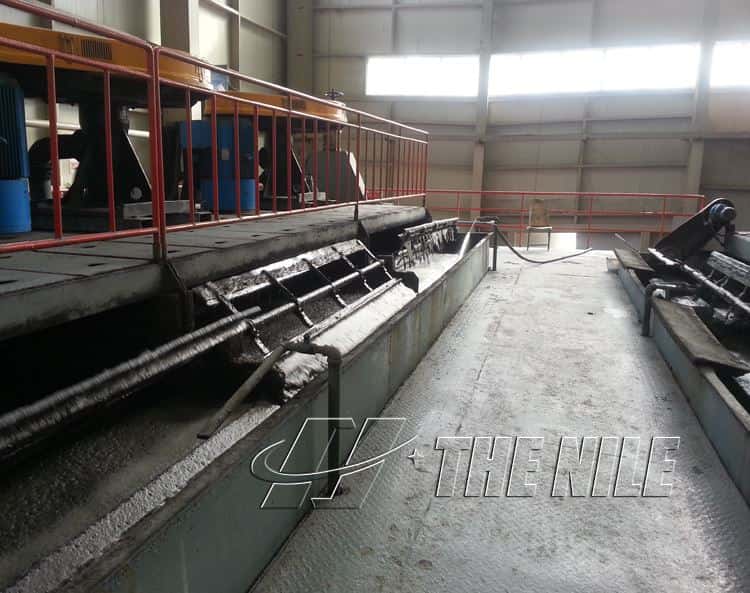

Project cases:

Production project: barite flotation production line

Production capacity: customized according to process requirements

Processing material: barite

A customer in Zimbabwe purchased two jaw crushers and a flotation device in the Nile ，and gained a lot of profit in the production process.
