Processing Materials: Vertical composite crusher is used for crushing medium-hard ores such as construction sand, iron ore, sandstone, gypsum, coal gangue, etc, especially for processing artificial sand such as hard limestone, dolomite, granite, and basalt, and crushing of highway pavement stone.
Technical Parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
Product Introduction

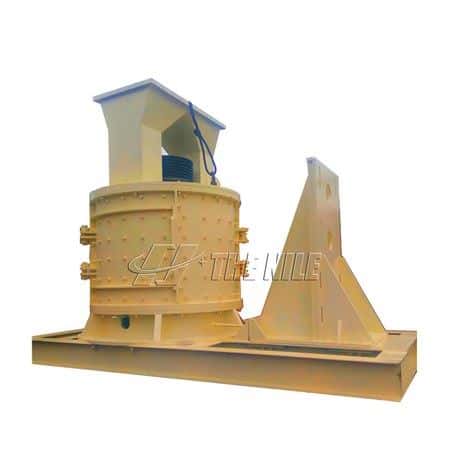

The vertical composite crusher is a new type of fine crushing and the coarse grinding product developed by senior engineers of Nile Machinery who integrated similar crusher technologies at home and abroad and has the advantages of impact crushing and hammer crushing. At the same time, the main technical parameters are optimized and designed. It is mainly used for small and medium-sized crushing of raw meal and clinker. The compound crusher has the characteristics of large crushing ratio, low energy consumption, stable operation, simple structure, convenient operation, and maintenance, etc, so it is a real multi-purpose, high efficiency, and low cost new crushing equipment.
Advantages of Vertical Composite Crusher
1. High crushing rate, energy-saving, simple structure, and low-cost operation.
2. Compound crusher adopts the principle of rock-to-stone, which has the small wear.
3. It has the functions of fine crushing and coarse grinding, which is suitable for crushing medium-hard and extra-hard materials.
4. The working noise is lower than 75 decibels and the dust pollution is less.
5. Composite crusheris less affected by the moisture content of the material, and the moisture content can reach about 8%.
6. The finished products are cubes with high bulk density and minimal iron pollution.
7. The impeller has small wear and easy maintenance.
Technical Parameters of Vertical Composite Crusher
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
