Applied Fields: Compound crusher machine is applied in metallurgy, refractory, cement, coal, glass, mining, ceramics, electric power, and other industries, which widely used for crushing coal gangue, river pebble, weathered rock, soft rock stone, limestone, quartz, granite, dolomite, iron ore, etc.
Technical Parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |

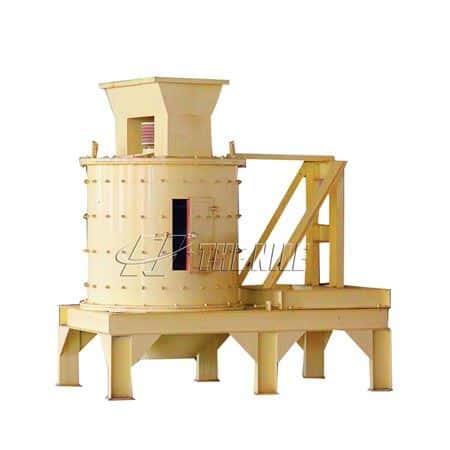

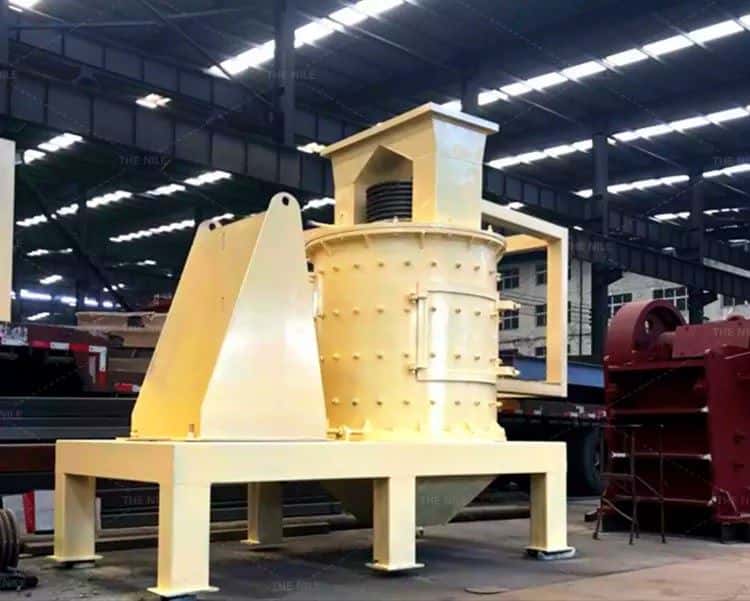

Highlights of Compound Crusher Machine
1.The hammer and rotor of the compound crusher are rigidly connected. Using the inertia of the whole rotor to impact the material, which can obtain greater speed and kinetic energy so as to makes it easier to break and lower energy consumption.
2.The structure design of the crushing chamber is larger so that the material has a certain space for movement in it. Under the impact action, the material can be fully broken after repeated blows.
3. High crushing efficiency, low energy consumption, and high qualified rate of sand formation.
4.The crushing ratio of the compound crusher machine is large, which can reach about 15-20. It is beneficial to reduce the number of crushing sections, simplify the process flow, save investment and reduce production costs.
5. The structure is simple, which makes it easy to produce, operate and maintain.
Safety Precautions
1.If the equipment has an emergency failure during operation, it can be stopped first. Do not drive forcibly until the fault is eliminated.
2.If electrical equipment fails, the electrical personnel should be exempted from responsibility.
3.When users need to enter the machine for internal inspection, they must first pull off the power switch and hang up the sign for maintenance. Before the inspection, the materials in the upper part of the machine should be cleaned to prevent falling and hurting people. After the inspection and before the test run, the upper cover must be covered and the bolts must be tightened.
4. All safety devices must be complete and firm. When the contact signal and communication equipment fail, the compound crusher cannot be started.
Technical Parameters ofCompound Crusher Machine
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
