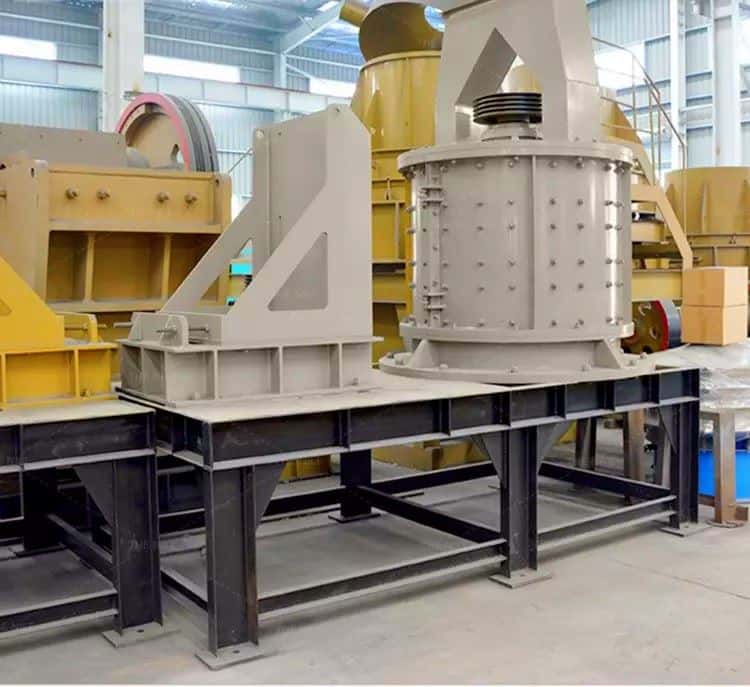

Processing Materials: Compound crusher machinery is called compound crusher for short, also called compound sand making machine and vertical shaft sand making machine, which has the dual functions of fine crushing and coarse grinding. It's mainly used for crushing coal gangue, cement clinker, dolomite, kaolin, marble, bluestone, limestone, slag, limestone, coal, etc.
Technical Parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |

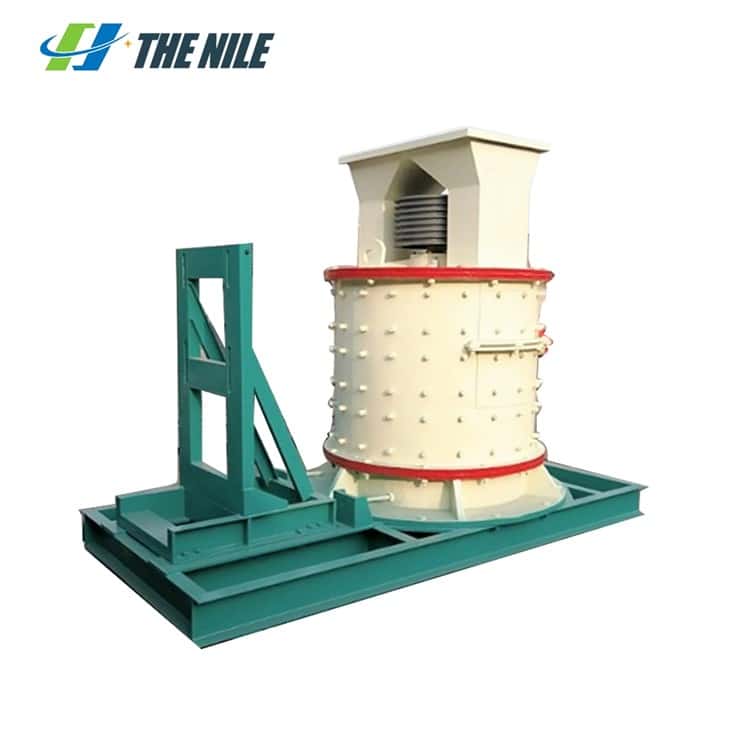

Structure of Compound Crusher Machinery
The whole machine of compound crusher machinery is composed of a transmission device, main shaft, cylinder, upper cover, and base. The motor drives the spindle to rotate through the trapezoidal triangle belt, and the main shaft is equipped with a hammer. The material enters the machine from the upper feeding port and falls by gravity. The material is continuously crushed by a series of impacts of the high-speed rotating hammerhead and then discharged from the lower discharge port.
Faults and Troubleshooting Methods
1. Fine granularity
Reason: Too many more hammers
Solution: Lose one or two layers of hammers
2. Coarse particle size
Cause: loose belt or low speed
Solution: tighten the belt and check whether the voltage is 380V
3. Swing of the crusher body
Reason: The centrifugal force of the rotor is unbalanced
Solution: Replace with a new hammerhead, or adjust the weight of the push head
Technical Parameters of Compound Crusher Machinery
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
