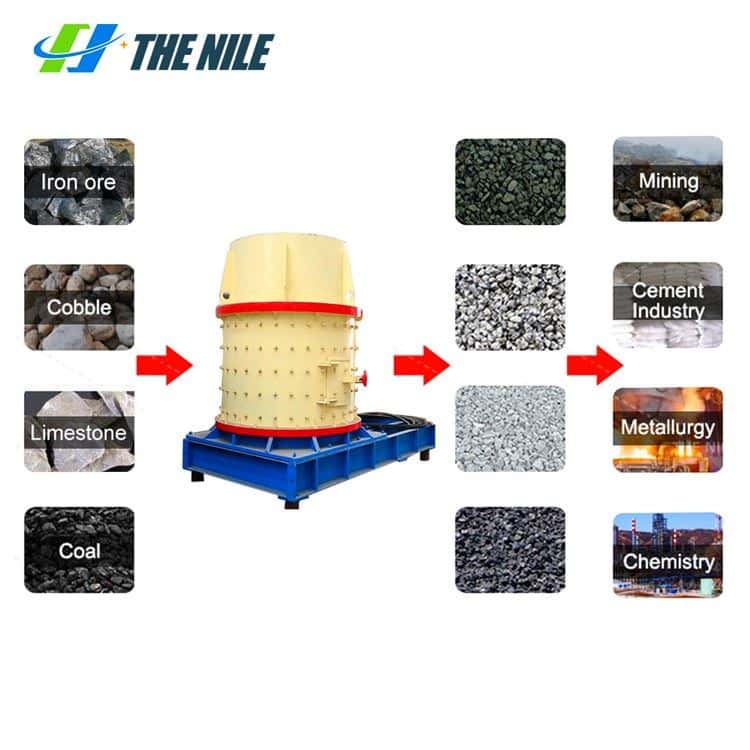

Processing Materials: High efficiency vertical compound crusher is suitable for crushing all kinds of medium hardness materials, especially for hard limestone, dolomite, granite, basalt, and other artificial sand or highway pavement stone processing and crushing.
Technical Parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
Working Principle
The material falls into the crushing cavity from the feed hopper under hitting by the high-speed rotary plate hammer, and then quickly throws it to the impact plate. After the impact, it is rebounded to the hammer plate and hit again. Such a high frequency of hits and impacts makes the material gradually crushed from large to small, and the smaller material falls into the lower crushing cavity, which is hit by the high-speed rotating dense hammer, and the upper crushing process is repeated. Due to the small cavity, the shear stress is applied between the hammerhead and the tooth edge of the impact plate to accelerate the fine crushing of the material. At the same time, the hammerhead with raw materials flows, which has a great grinding effect between each other, so that the material is further finely crushed until it is broken into the required particle size.
Structural Features
1.The bearings are arranged horizontally with long service life, which can crush high-temperature materials (such as cement clinker).
2.The structure of the rotor body of this compound crusher is unique, which is hardly worn when crushing materials.
3.The rear cavity is equipped with a screw rod or hydraulic opening mechanism, which can easily replace the vulnerable parts without starting the main equipment.
Technical Parameters ofHigh Efficiency Vertical Compound Crusher
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
