Applied Filed: The vertical compound crusher, referred to as compound crusher, is one of the commonly used equipment in crushing production line and sand making production line. The compound crusher can be widely used in the fine crushing of raw materials and clinker in cement plants, as well as the crushing of dolomite, lead-zinc ore, blast furnace slag, coal gangue, phosphate rock, and other medium hardness materials, especially for the processing and crushing of artificial sand making or highway pavement stone such as hard limestone, dolomite, granite, basalt, etc.
Technical Parameter of Vertical Compound Crusher
Vertical compound crusher is suitable for crushing limestone, clinker and other ores with compressive strength is not more than 140 MPa and humidity is not more than 15% in building materials, mining, metallurgy, and chemical industry.

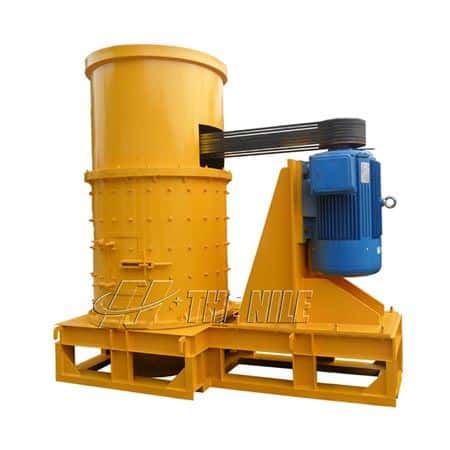

Product Introduction of Vertical Compound Crusher
1.The crushing ratio of vertical compound crusher is large, and the discharge particle size can be adjusted arbitrarily, which is not affected by the abrasion of the plate hammer and lining plate of vertical compound crusher machine.
2.Without a screen bar setting, a vertical compound crusher is not easy to block when crushing materials with high moisture content and large mud content.
3.The vertical compound crusher adopts elastic adjusting mechanism, which can automatically discharge the nonbroken materials without causing damage to the equipment.
4.The bearings of vertical compound crusher are arranged horizontally with long service life, which can crush materials with high temperature (such as cement clinker).
5.The rotor of the vertical compound crusher has a unique structure and hardly worn when crushing materials.
6.The back cavity of the vertical compound crusher is equipped with a screw rod or hydraulic opening mechanism so that the wearing parts can be easily replaced without starting the main equipment.
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
