The compound crusher has been widely used in the crushing production line of building sand and all kinds of metallurgical slag. Compound crusher is also used in mineral processing, building materials, chemical industry, refractory, cement, glass, ceramics, electric power, and other industries.
Technical Parameters
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
Input size(mm) | 50 | 70 | 100 | 100 | 100 |
Output size(mm) | 0-5 | ||||
Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
Motor Power | 30 | 55 | 75 | 110 | 132 |
Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |

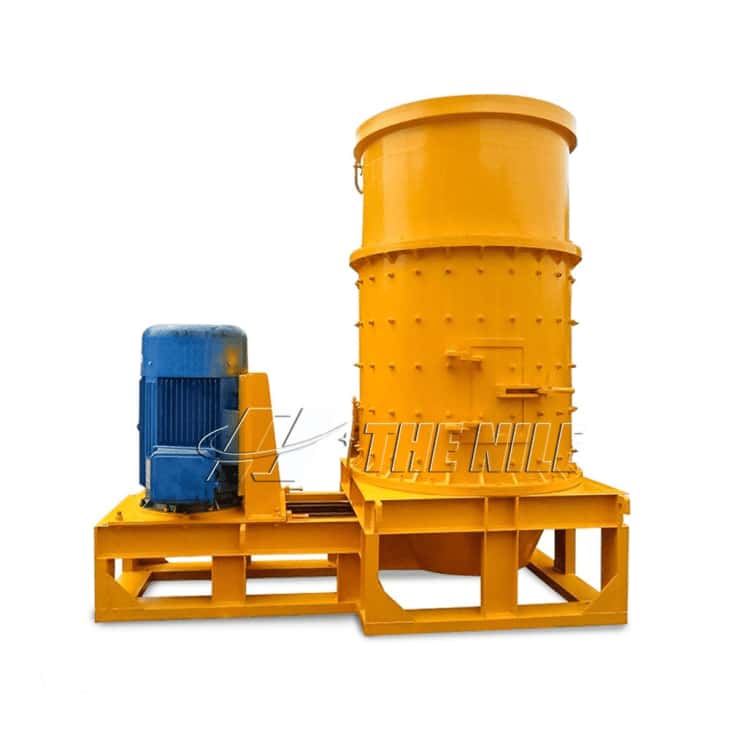

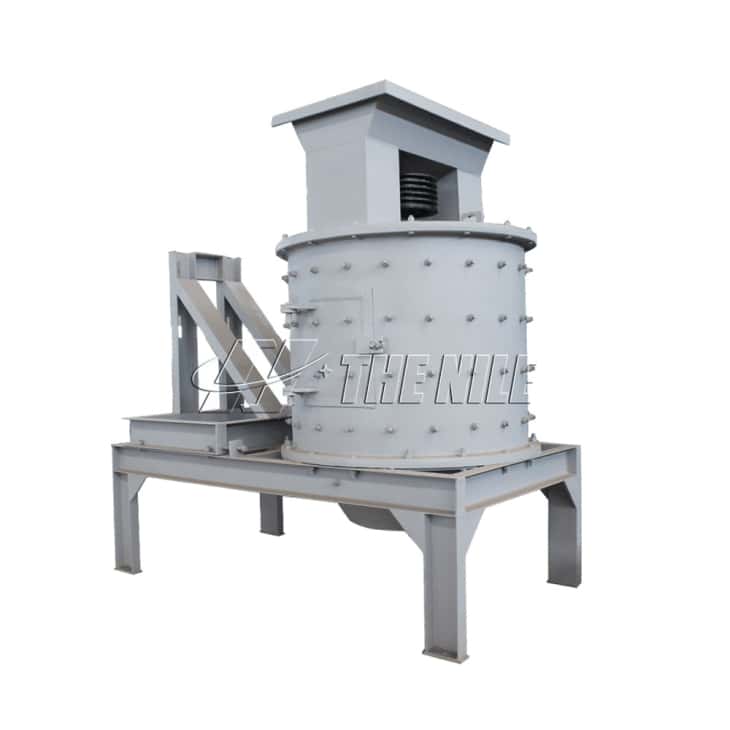

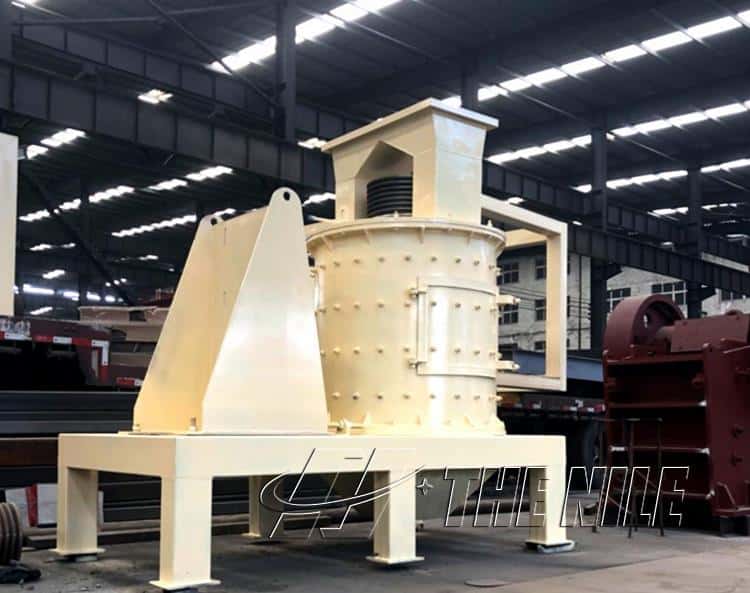

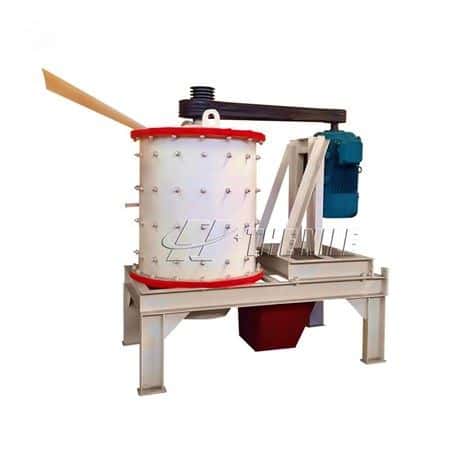

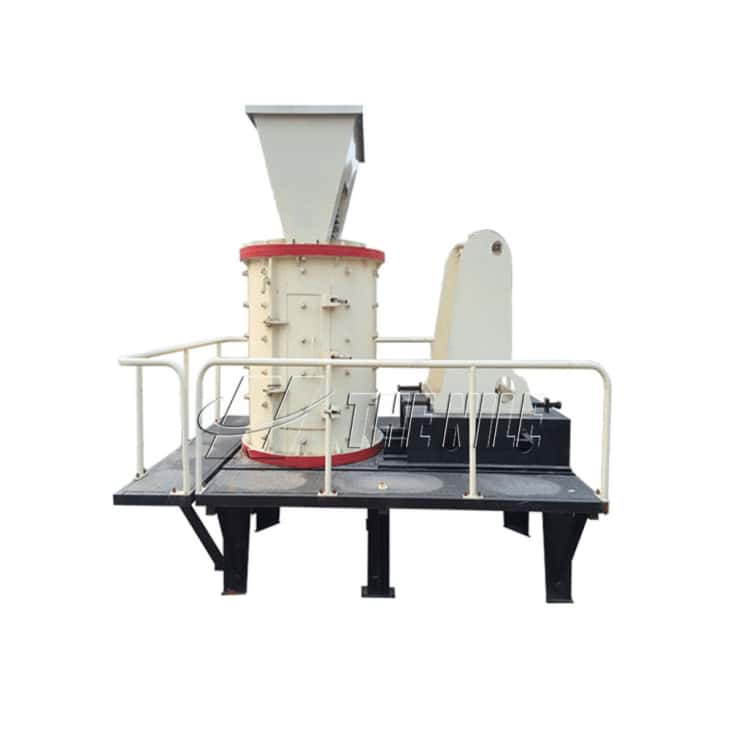

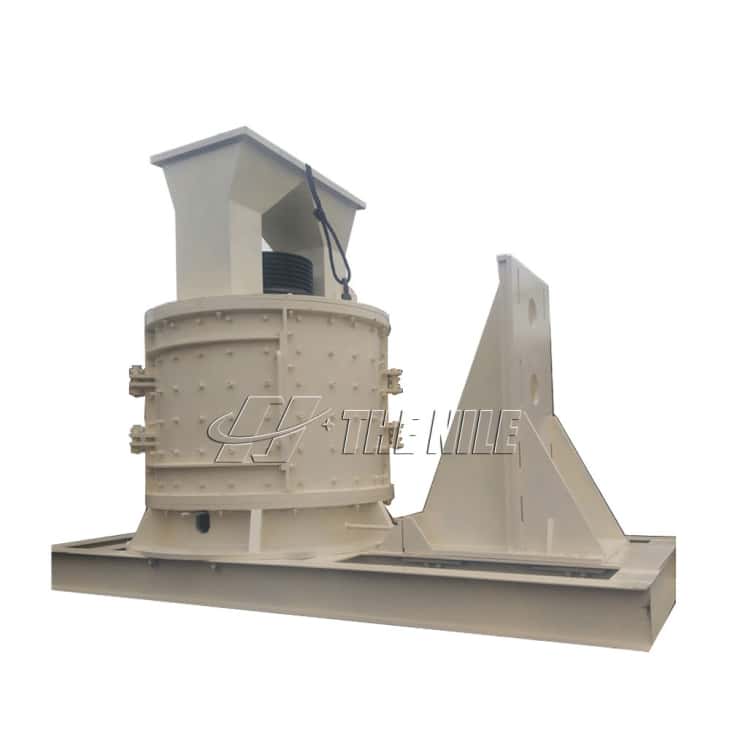

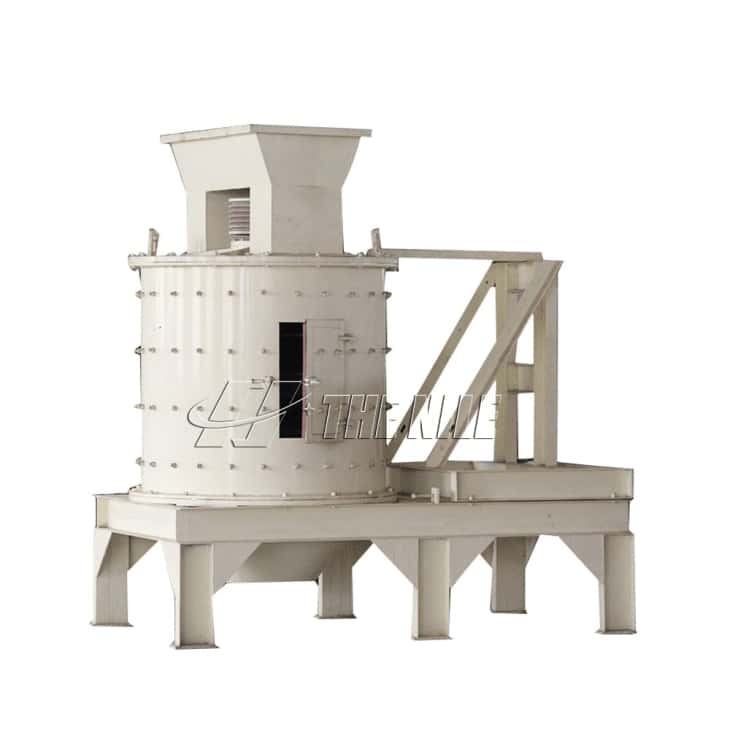

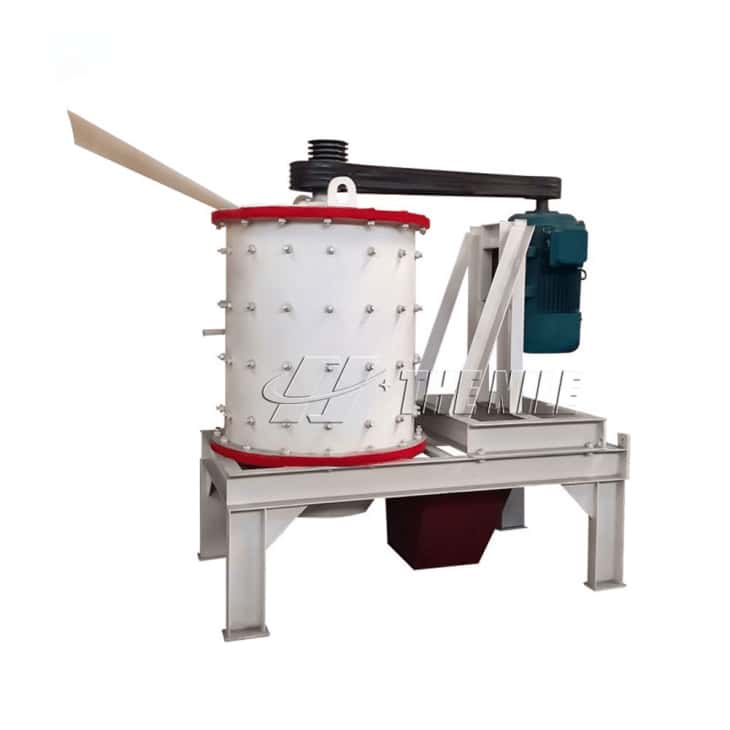

Product Description of Compound Crusher
Compound crusher is commonly used in the crushing production line and sand production line. The feeding size of the Nile compound crusher is 50-100mm, the discharge size is 0-5mm, capacity is 5-100 tons per hour.
Advantages of Compound Crusher
1. High crushing efficiency and energy saving.
2. Fine grinding, coarse grinding.
3. It is little affected by the moisture content, and the moisture content can reach about 8%.
4. Suitable for crushing medium-hard and super hard materials.
5. The structure is simple and reasonable, and the operation cost is low.
6. Working noise is lower than 75 dB (DB level), dust pollution is less.
7. The final product is a cubic shape with high bulk density and low iron pollution.
Packing&Shipping
Standard export container packing, or according to the customer's needs.
Our Service
Pre-sale services
(1) Advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
After-sale services
(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
