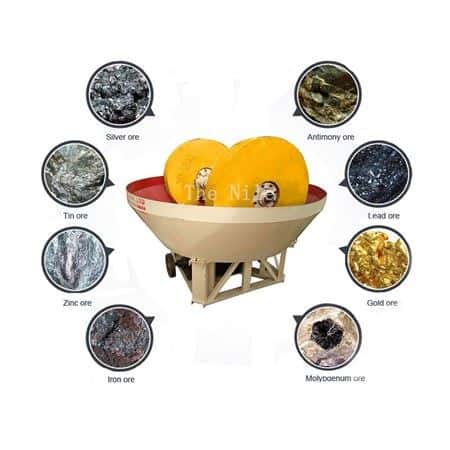

Processing Materials: Gold stone mill is mainly used in the mineral processing industry, such as gold, silver, lead, zinc, iron, molybdenum, copper, and antimony mine, etc. Gold stone mill is the best equipment to replace the ball mill, which has small investment, high output, low production cost, good efficiency, and easy installation.
Working Principle of Gold Stone Mill

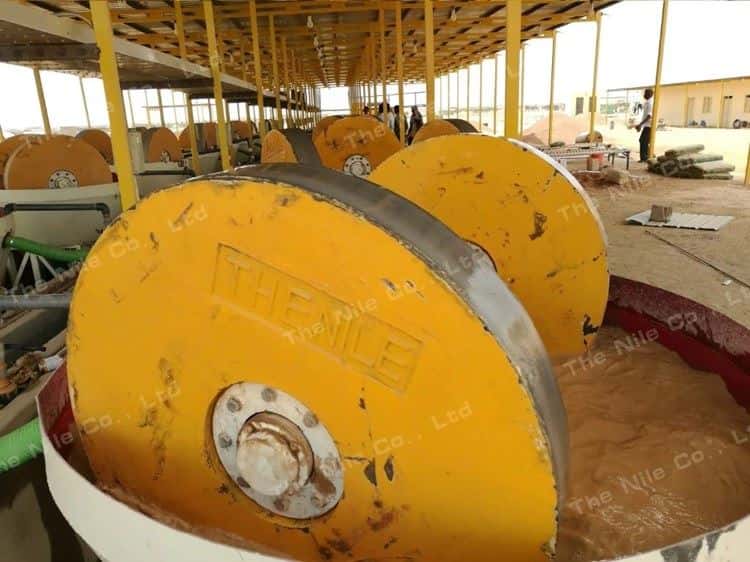

Gold stone mill mainly includes motor, frame, birdbath, grinding wheel, pan, and other parts. Gold stone mill grinds ores by wheel driving force. Firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel. Then the grinding wheels rotate anticlockwise. The grinding wheels can revolve around the vertical shaft of the gold stone mill and at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are pressed, rubbed, and grind repeatedly.
Main Features of Gold Stone Mill
1. Gold stone mill has a professional design, thus its technical data is reasonable.
2.Short grinding and mixing cycle with high efficiency.
3.Low noise and consumption, which can grind and mix the material uniformly.
4.Compact structure, so it's easy to operate and do maintenance for gold stone mill.
Technical Parameters of Gold Stone Mill
Model | Gauge (mm) | Feed Size | Engine power | Rotation speed | Weight |
1600A | 1600×400×200×500±20 | ≤25 | 6-30 | 20-22 | 14.5 |
1500A | 1500×350×200×460±20 | ≤25 | 6-22 | 20-22 | 13.3 |
1500B | 1500×350×150×460±20 | ≤25 | 6-22 | 20-22 | 12.3 |
1500C | 1500×300×150×420±20 | ≤25 | 6-22 | 20-22 | 11.3 |
1400A | 1400×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8.5 |
1400B | 1400×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8.5 |
1350A | 1350×250×150×350±20 | ≤25 | 6-18.5 | 16-18 | 8 |
1350B | 1350×250×150×350±20 | ≤25 | 6-18.5 | 21-23 | 8 |
1300A | 1300×250×150×350±20 | ≤25 | 6-15 | 16-18 | 7.5 |
1300B | 1300×200×150×350±20 | ≤25 | 4-15 | 21-23 | 7.5 |
1200A | 1200×220×80×270±20 | ≤25 | 6-7.5 | 17-19 | 5.5 |
1200B | 1200×200×80×250±20 | ≤25 | 6-7.5 | 23-25 | 5.5 |
1100A | 1100×200×80×250±20 | ≤25 | 6-7.5 | 17-19 | 5 |
1100B | 1100×180×80×250±20 | ≤25 | 4-7.5 | 23-25 | 5 |
1000 | 1000×200×80×250±20 | ≤25 | 4-7.5 | 13-15 | 4.5 |
