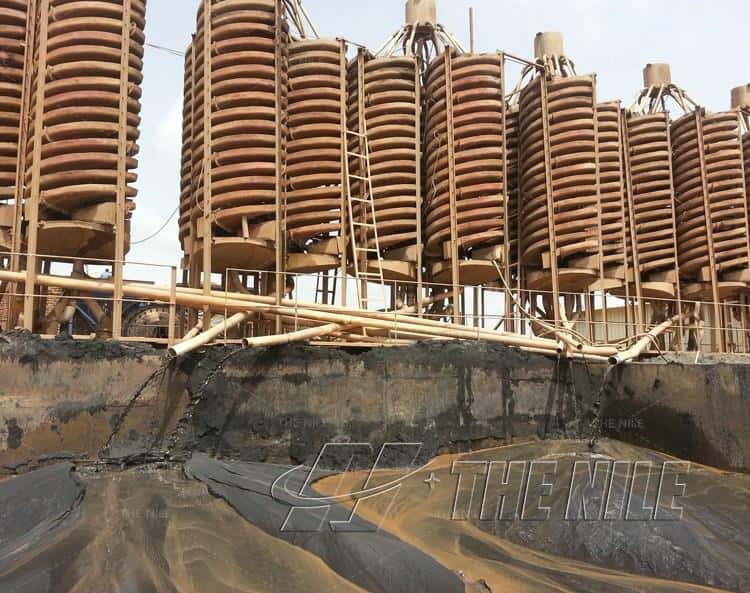

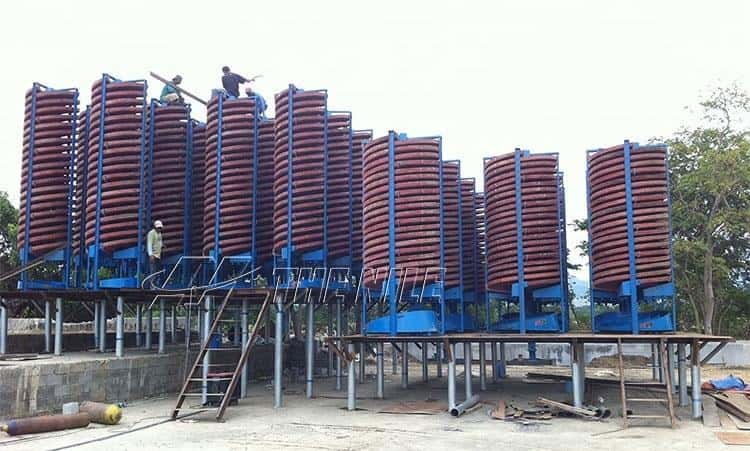

Processing Materials: Spiral chute is used for processing iron ore, copper ore, gold ore, tungsten ore, ilmenite, chromite, zircon, pyrite, etc. Applied Filed: Spiral chute is widely applied in the seashore, riverside, sand beach, and stream road placer mining.

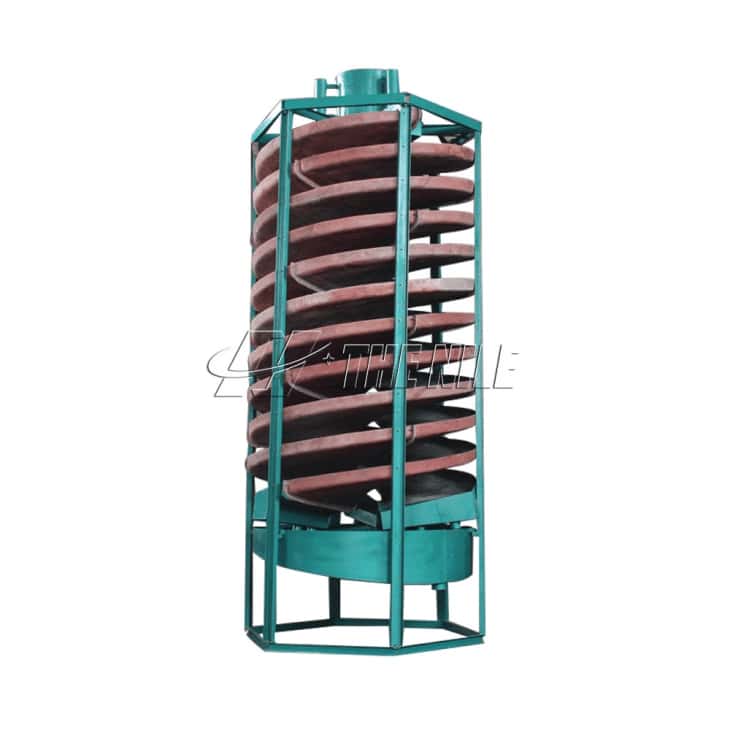

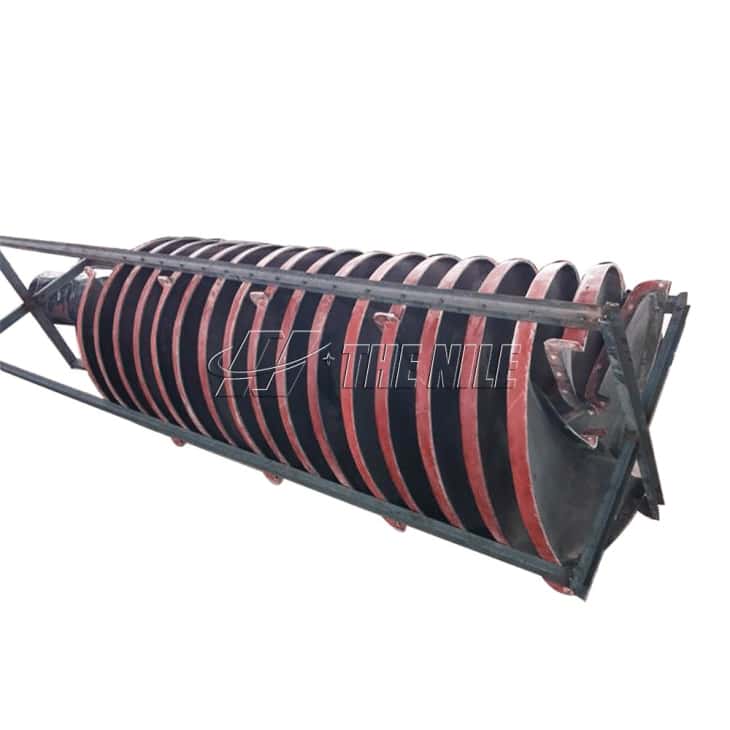

Spiral Chute for Gravity Separation
Spiral chute is one of the gravity concentrators, which separate minerals with different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. The Nile Spiral Chute is a combination of spiral concentrator, spiral chute, shaker, centrifugal separator features of the equipment, which is the best equipment for mining and mineral processing.
Working Principle of Spiral Chute
The spiral chute is composed of six parts: feeder, ore trough, spiral groove, product intercepting groove, ore bucket and trough bracket. The spiral piece is made of fiberglass (glass fiber reinforced plastic) and is bolted together. Glass fiber reinforced plastic spiral piece light and strong. The spiral chute separation face has a layer of wear-resistant layer. The first end of the groove is provided with a multi tube-type feeding separator, which is homogeneous and easy to control. The evenly divided pulp is slowly given to the spiral groove by giving the ore trough. The tail end of the spiral groove is equipped with a valve block product intercepting groove, and the separated ore flow is divided into several products according to the grade.
Advantages of Spiral Chute 1. Reasonable structure and small occupation area. 2. High recovery, high efficiency, and precise separation. 3. Light in weight, rush and corrosion-resistant. 4. Simple installation and minimal maintenance requirements. 5. Low operating cost and long operating life. |

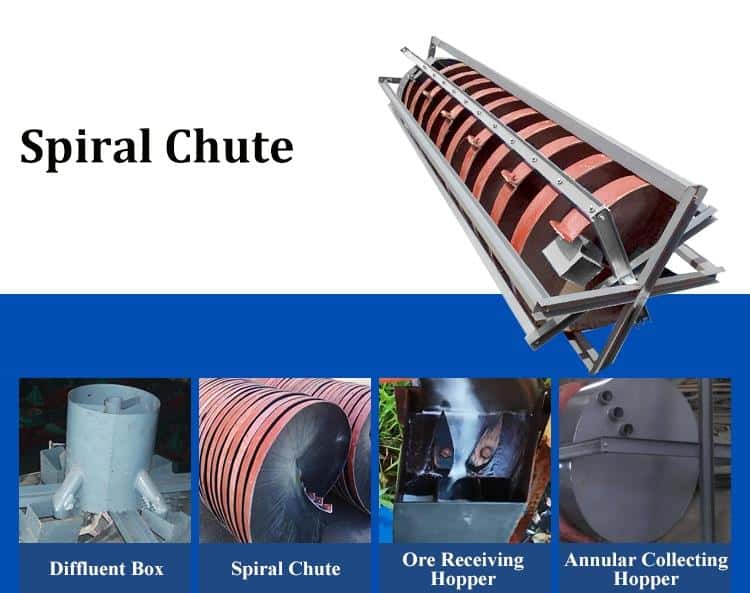

Spare Parts of Spiral Chute

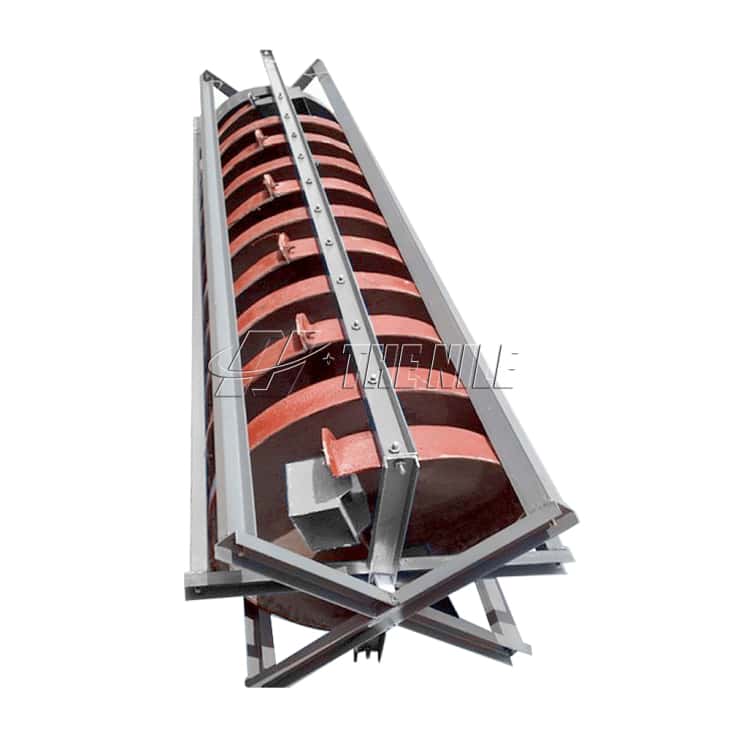

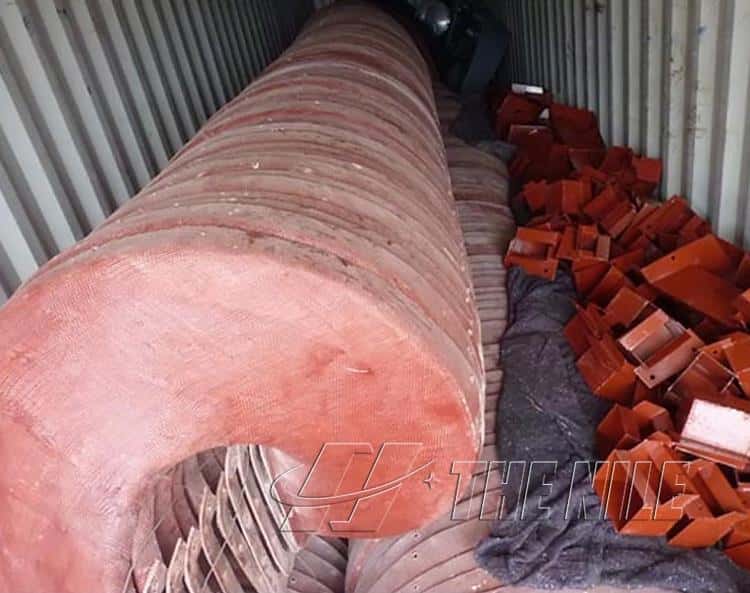

Packing&Shipping of Spiral Chute
A standard package in export containers
←No more
Model | Outside diameter | Pitch of screw | Feed size | Capacity | Mine density | Area | Height |
DL400 | 400 | 180 | 0.02-0.2 | 0.2-0.5 | 30-50 | 0.25 | 1.5 |
DL600 | 600 | 390/360 | 0.02-0.2 | 0.8-1.2 | 30-50 | 0.5 | 2.6 |
DL900 | 900 | 540/360 | 0.03-0.3 | 2-3 | 30-50 | 1.2 | 4 |
DL1200 | 200 | 720/540 | 0.03-0.3 | 4-6 | 30-50 | 2 | 5.23 |
DL1500 | 1500 | 900 | 0.03-0.3 | 6-8 | 20-45 | 4 | 5.23 |
DL2000 | 2000 | 1200 | 0.04-0.4 | 7-10 | 20-45 | 5.7 | 5.23 |
