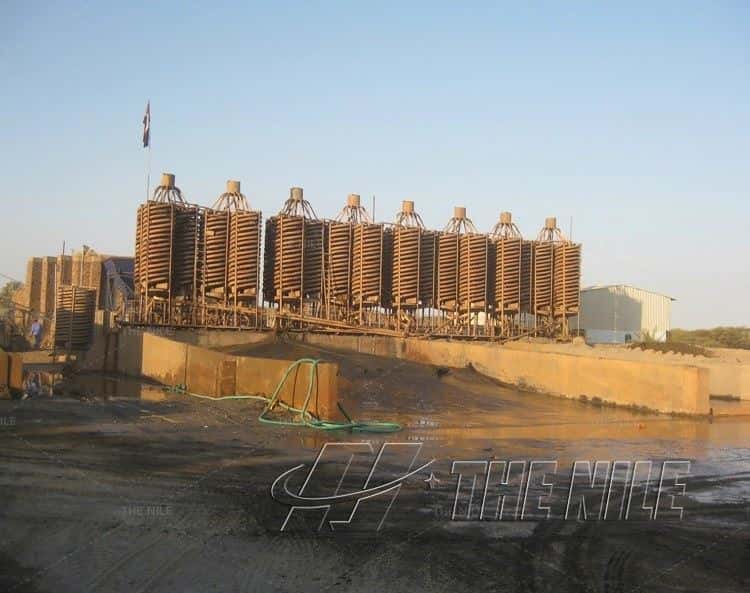

Processing Materials: Spiral chute processing plant is a kind of high-efficiency gravity separation equipment. It is widely used for the processing of materials such as chromite, pyrite, zircon, rutile, monazite, iron ore, ilmenite, tungsten, tin, tantalum, niobium, etc.

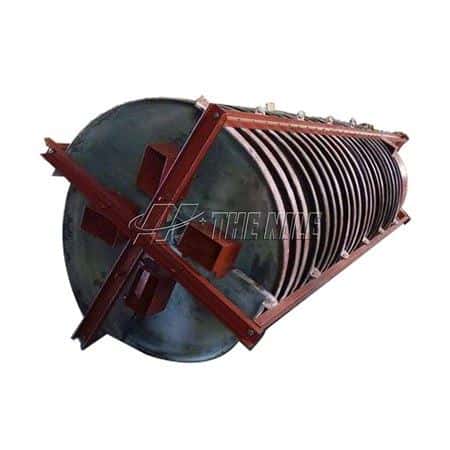

Structure of Spiral Chute Processing Plant
The spiral chute processing plant or spiral chute separator is made up of six parts: feeding chute, feeding distributor, spiral chute, product cutting and receiving chute, chute support, and receiving bucket.
Advantages of Spiral Chute Processing Plant
1.Spiral chute processing plant produced by Nile Machinery is made of special PVC plastic, which is light in weight and free from moisture, rust, and corrosion.
2.It has a small friction coefficient, high productivity, and easy access for coal.
3.It has a reasonable structure, and the floating coal can be cleaned easily.
Technical Parameters of Spiral Chute Processing Plant
Model | Outside diameter | Pitch of screw | Feed size | Capacity | Mine density | Area | Height |
DL400 | 400 | 180 | 0.02-0.2 | 0.2-0.5 | 30-50 | 0.25 | 1.5 |
DL600 | 600 | 390/360 | 0.02-0.2 | 0.8-1.2 | 30-50 | 0.5 | 2.6 |
DL900 | 900 | 540/360 | 0.03-0.3 | 2-3 | 30-50 | 1.2 | 4 |
DL1200 | 200 | 720/540 | 0.03-0.3 | 4-6 | 30-50 | 2 | 5.23 |
DL1500 | 1500 | 900 | 0.03-0.3 | 6-8 | 20-45 | 4 | 5.23 |
DL2000 | 2000 | 1200 | 0.04-0.4 | 7-10 | 20-45 | 5.7 | 5.23 |
