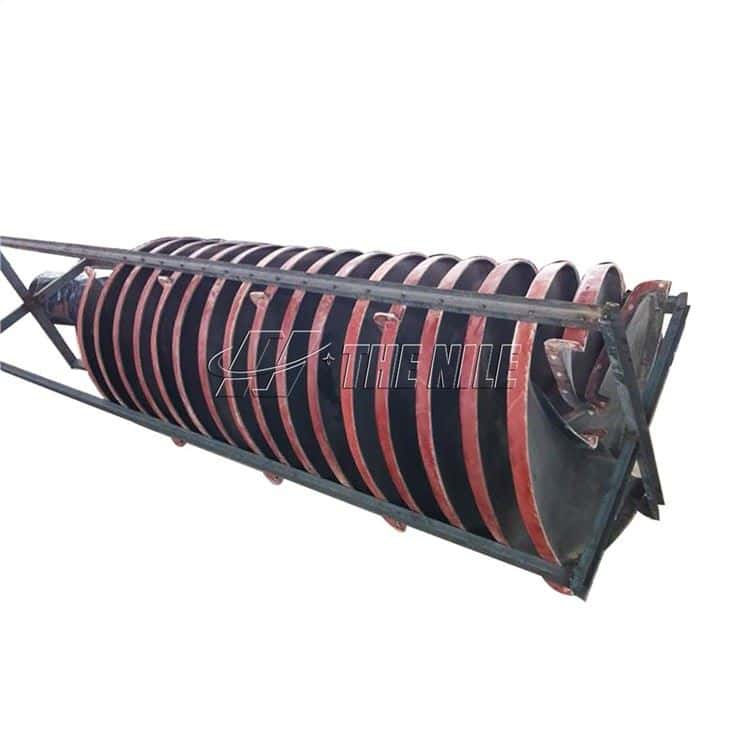

Spiral chute is a kind of high-efficiency gravity separation equipment commonly used in roughing, sweeping, and other processes. Spiral chute equipment is widely used in the separation of 0.02-0.4mm iron ore, chromite, tin ore, tungsten ore, and other minerals with different specific gravity.
Product description
A high-quality spiral chute is a device that combines the characteristics of a spiral concentrator, a shaker, and a centrifugal concentrator. It is the best equipment for mining and beneficiation, especially for placer mining on seashores, rivers, sand beaches, and streams.
The structure of the spiral chute for sale:

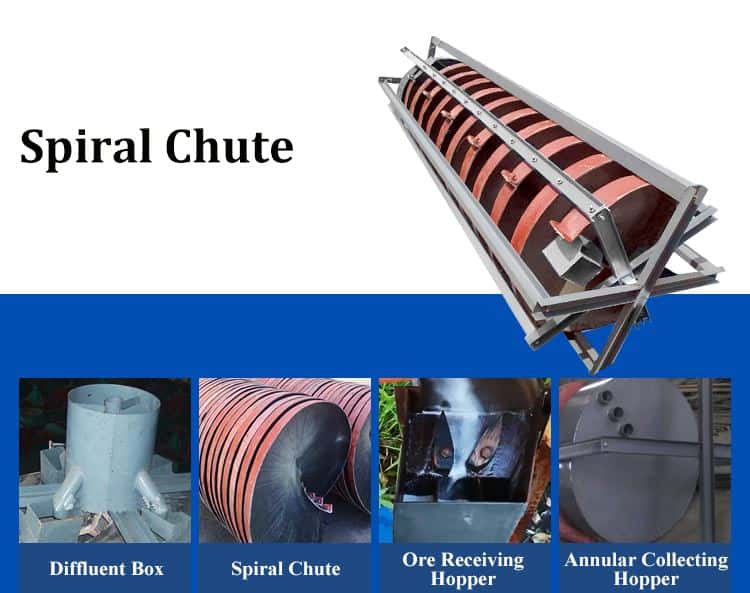

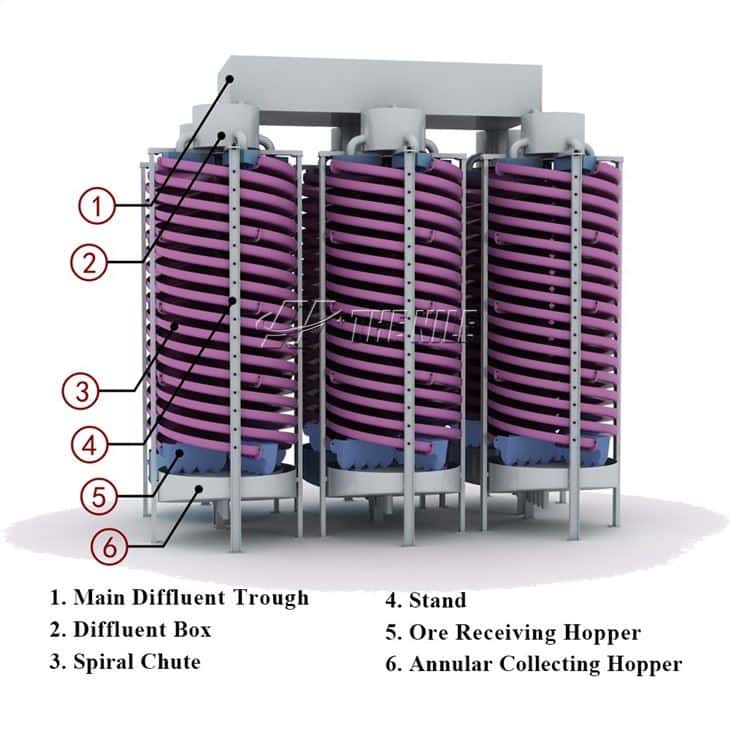

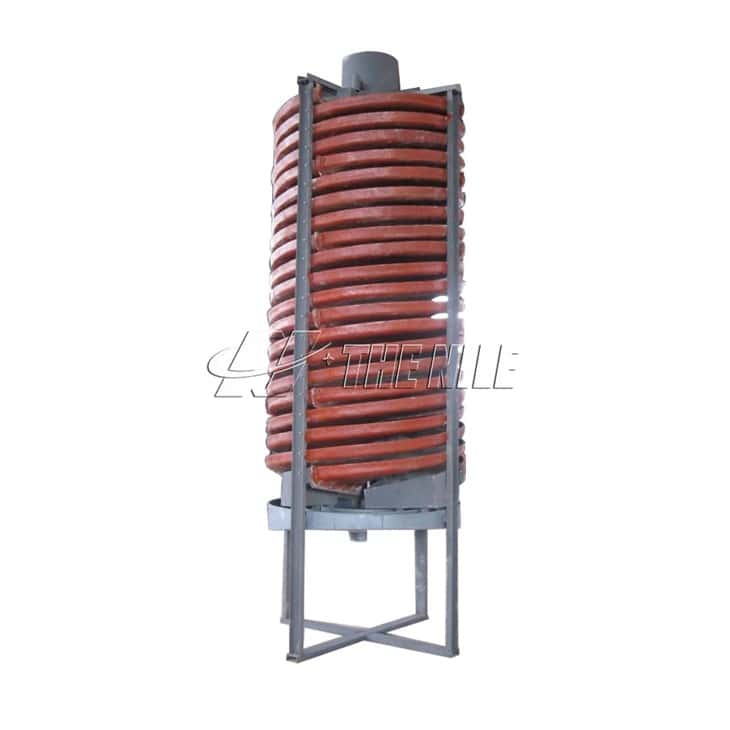

The spiral gravity chute is mainly composed of a feed homogenizer, a cross (tripod), a feed trough, a spiral trough, an intercepting trough, a gathering bucket, and trough pillars.
Features of spiral chute machine
1. The sorting process is stable and easy to control
2. The spiral chute separator is light in weight， strong corrosion resistance, low noise
3. Small footprint and low water consumption
4. Simple structure and convenient operation
5. Large processing capacity, small investment, and quick results
The working principle of the spiral chute equipment:
The operator erects the spiral chute, calibrates the vertical line, and fixes it in a suitable position with an iron frame or wood. The sand pump sends the ore to the two inlets on the top of the screw, adds supplementary water, adjusts the concentration of the ore The paddle naturally swirls from high to downward, generating an inertial centrifugal force in the speed of the rotating slope. The difference in the specific gravity, particle size, and shape of the ore will separate the ore from the sand through the action of the gravity and centrifugal force of the swirling flow. The concentrate flows into the concentrate bucket and is connected by a pipe, and the tailings flow into the tailing bucket and are connected to the sand tank with a pipe, and then drained by a sand pump, completing the whole process of beneficiation.
The Nile Machinery has rich experience and strong technical strength. we can provide users with a free consultation, model selection, quotation, design, and production line services. If you want to know more about mining machinery products, please consult our customer service.
Model | Outside diameter | Pitch of screw | Feed size | Capacity | Mine density | Area | Height |
DL400 | 400 | 180 | 0.02-0.2 | 0.2-0.5 | 30-50 | 0.25 | 1.5 |
DL600 | 600 | 390/360 | 0.02-0.2 | 0.8-1.2 | 30-50 | 0.5 | 2.6 |
DL900 | 900 | 540/360 | 0.03-0.3 | 2-3 | 30-50 | 1.2 | 4 |
DL1200 | 200 | 720/540 | 0.03-0.3 | 4-6 | 30-50 | 2 | 5.23 |
DL1500 | 1500 | 900 | 0.03-0.3 | 6-8 | 20-45 | 4 | 5.23 |
DL2000 | 2000 | 1200 | 0.04-0.4 | 7-10 | 20-45 | 5.7 | 5.23 |
