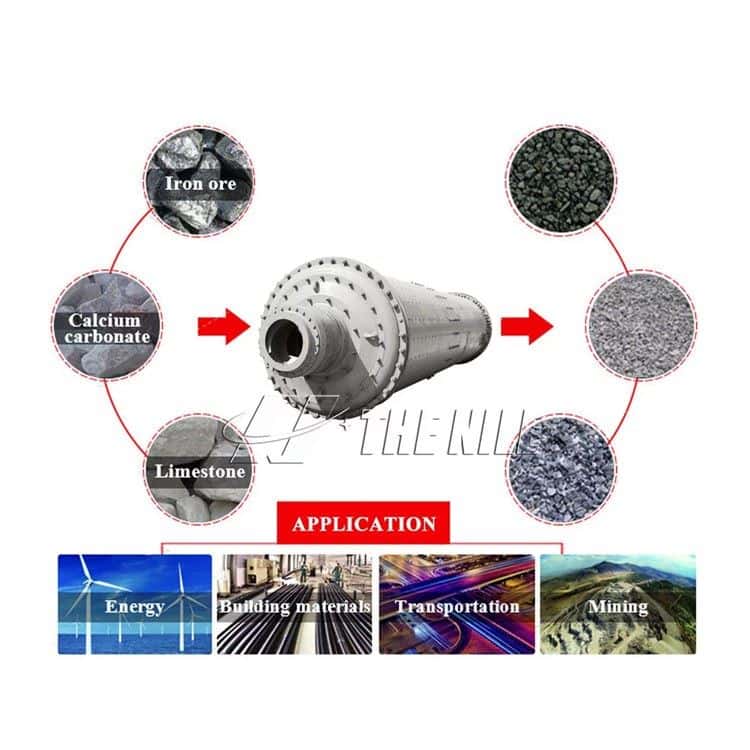

Processing Materials: Rod mill grinding machine is used for grinding glass ceramics, cement, silicate products, new building materials, refractory materials, chemical fertilizers, and black and non-ferrous metals. Applied Field: Rod mill grinding machine is widely used in the chemical industry, metallurgy, glass industry, and sand making of building materials in recent years.

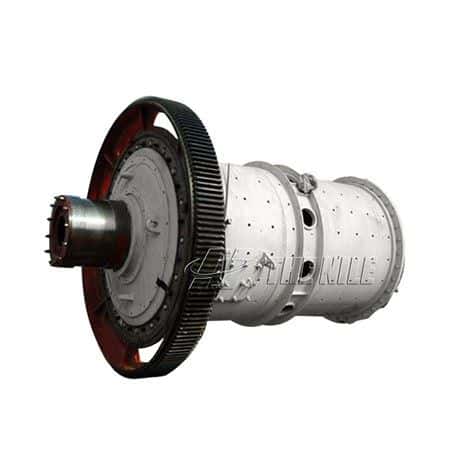

Main Structure of Rod Mill Grinding Machine
The rod grinding machine is mainly composed of motor, main reducer, transmission part, cylinder part, main bearing, slow transmission part, feeding part, discharging part, annular seal, thin oil lubrication station, spray lubrication of large and small gears, etc. The main reducer of rod grinding machine has a parallel shaft and hard tooth surface.
Types of Rod Mill Grinding Machine
There are three general rod mills:
1. Overflow type rod mill grinding machine.
2. Ore discharge rod mill around the end.
3. Discharge rod mill around the center.
Grinding Medium of Rod Mill Grinding Machine
The grinding medium of the rod mill is steel rods. It is generally believed that the length of the grinding rod should not exceed 7 meters, because the long grinding rod is easy to cause winding. Therefore, the length of the rod mill shouldn't be too long, and the diameter of the grinding rod is 75 ~ 150 mm.
Model | Feeding size | Output size | Capacity | Motor power | Weight |
900*1200 | 30 | 0-5 | 2-6 | 18.5 | 4000 |
1200*2400 | 5-15 | 30 | 11500 | ||
1500*3000 | 10-25 | 75 | 17000 | ||
1830*3000 | 18-45 | 130 | 26000 | ||
2100*3000 | 20-52 | 180 | 44000 | ||
2100*3600 | 30-70 | 210 | 46000 | ||
2400*3000 | 35-82 | 245 | 59000 | ||
2700*3600 | 50-125 | 380 | 82000 |
