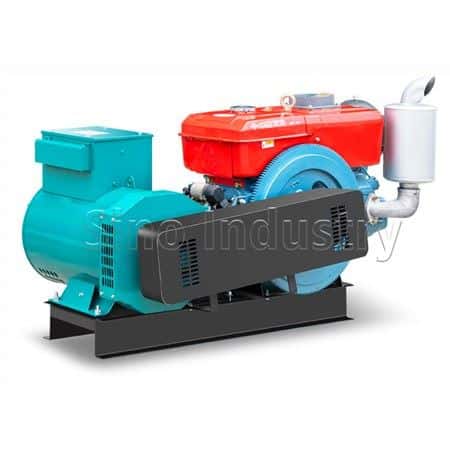

Brief Introduction: Diesel generator is a kind of small power generation equipment, which uses diesel as fuel and diesel engine as the prime mover to drive the generator to generate electricity. The whole set is generally composed of a diesel engine, generator, control box, fuel tank, storage battery for starting and control, protection device, emergency cabinet, etc.
Technical Parameters
| Model | RMC-5 | RMC-8 | RMC-10 | RMC-12 | RMC-15 | RMC-20 | RMC-24 |
| Power | 5KW /7.25KVA | 8KW /10KVA | 10KW /12.5KVA | 12KW /15KVA | 15KW /18.75KVA | 20KW /25KVA | 24KW /30KVA |
| Current | 9A | 14.4A | 18A | 21.6A | 27A | 36A | 43.2A |
| Engine Model | ZS195 | ZS195 | ZS1100 | ZS1105 | ZS1115 | ZS1125 | ZS1130 |
| Engine Power | 8.8KW | 8.8KW | 11.1KW | 13.2KW | 14.7KW | 20.2KW | 23KW |
| Fuel Consum | 270 gl/kw.h | 270gl/kw.h | 250gl/kw.h | 250gl/kw.h | 250 gl/kw.h | 240gl/kw.h | 240gl/kw.h |
| Size | 1150*600*700mm | 1150*600*700mm | 1300*640*750mm | 1300*640*750mm | 1400*660*790mm | 1450*670*780mm | 1500*680*790mm |
| Weight | 170kg | 180kg | 240kg | 255kg | 310kg | 360kg | 400kg |
Advantages of Diesel Generator
1.Strengthen the fuel system, adopt new high-pressure fuel injection pumps and P-type injectors to optimize the combustion process, with low fuel consumption and low emissions.
2.Using many new technologies, which makes the product wear-resistant and sealed with long life. It adopts double oil lubrication, which has good reliability.
3.Good interchangeability. Except for the key parts, most of the parts can be used in common with the Changchai R series, ZS series, and L series.
Precautions and Requirements
1.If you are ready to stop, you can slowly release the throttle, and then let the diesel engine idle for 3-5 minutes under no-load condition before turning off.
2.When the diesel engine uses soft water as the coolant, if the ambient temperature is below 5 ℃, the water should be drained after shutdown. If antifreeze is used, when the ambient temperature is close to the freezing point of antifreeze, the coolant should also be drained to avoid freezing and cracking the diesel engine.
3. After the shutdownof the diesel generator, the abnormal phenomena or faults in the operation process should be checked and eliminated in time.
Daily Maintenance for Diesel Generator
Check the amount of fuel in the fuel tank and fill it up.
Check the oil level in the oil pan, add enough if insufficient.
Check and eliminate water leakage, oil leakage, and air leakage.
Check the stability of all accessory devices.
Check the liquid level of the water tank and add enough if it is insufficient.
