The belt conveyor conveys smoothly during the transportation process, and there is no relative movement between the material and the conveyor belt, which can avoid damage to the conveyed material. In addition, it has the advantages of simple structure, easy maintenance, low energy consumption, and low cost of use.
Product description:

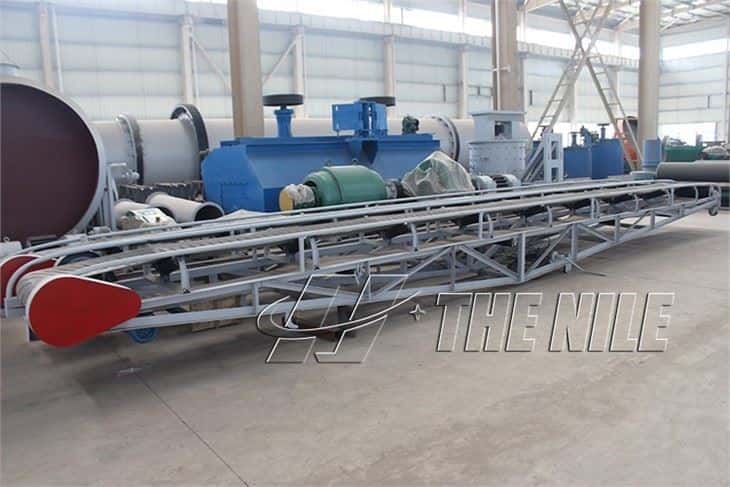

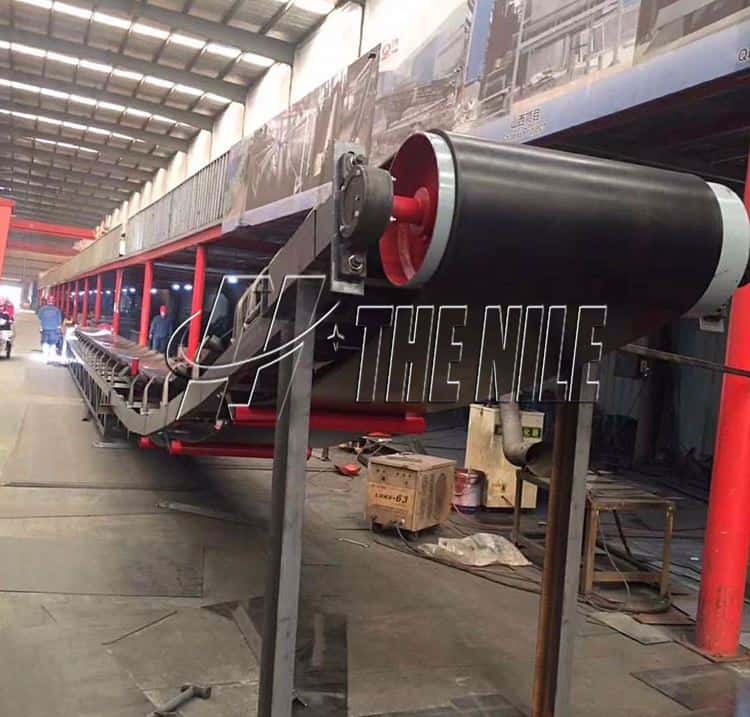

A Belt conveyor is mainly used to transport loose materials or finished goods. It is suitable for mining, metallurgy, coal, transportation, electric power, building materials, chemical industry, light industry, grain, machinery, and other industries to transport various bulk materials with a bulk density of 500 ~ 2500kg / m³. The applicable environment of the belt conveyor is - 20 ℃ ~ 40 ℃ and the relative humidity is less than 80%, The altitude is less than 1 km.
The working principle of belt conveyor for sale

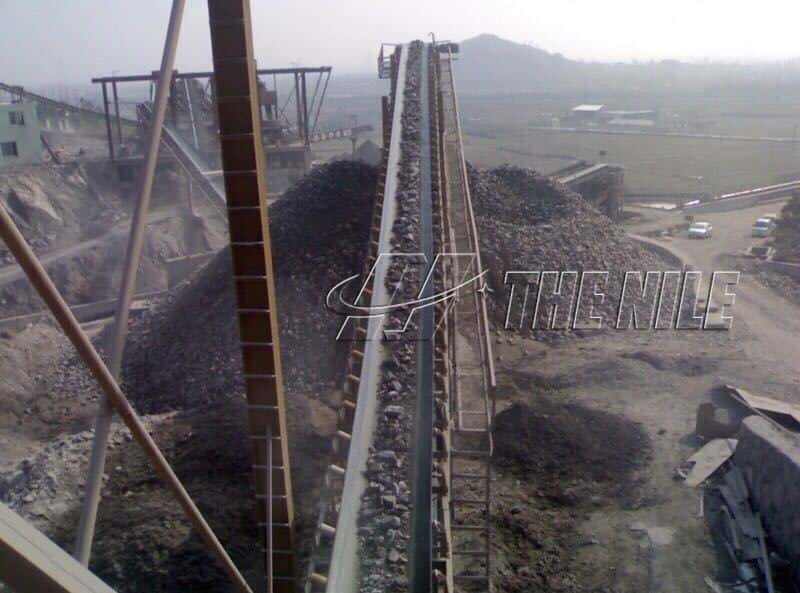

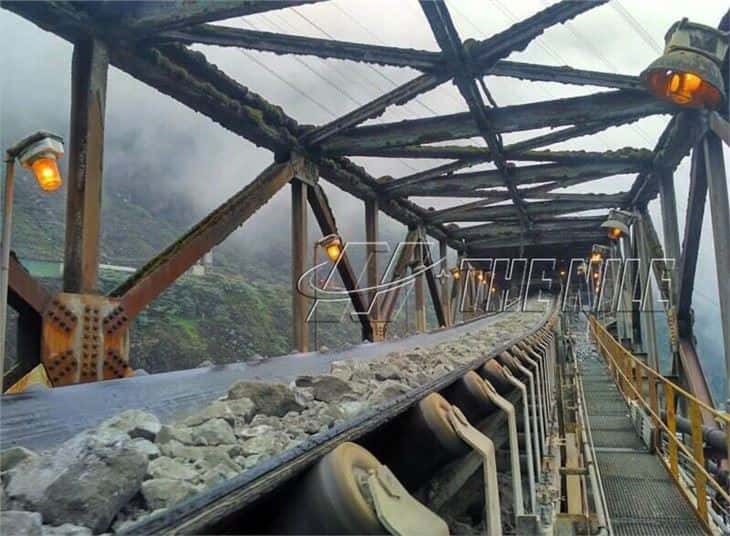

The belt conveyor uses the conveyor belt as the traction and load-bearing component and is a continuous conveying device that conveys the material through the movement of the belt conveyor that carries the material. The conveyor belt is wound around the drive roller and the tension roller to form an endless endless belt. The upper and lower conveyor belts are supported by idler rollers to limit the flexure and sag of the conveyor belt. The tension device provides the required tension for the normal operation of the conveyor belt. When working, the driving device drives the transmission roller and drives the conveyor belt to run through the friction between the transmission roller and the conveyor belt. The material is loaded on the conveyor belt and moves together with the conveyor belt.
Advantages of belt conveyor machine
1. Large conveying capacity and high production efficiency.
2. Simple structure and convenient maintenance.
3. The components are standardized, and the assembly is easy to adjust.
4. The supply is uniform and the running speed is stable.
5. Flexible use and the running speed can be adjusted at any time.
6. Reliable operation, easy to realize automation, and centralized control.
7. It has a wide range of applications. Belt conveyors are widely used for conveying various bulk, granular and powdery materials.

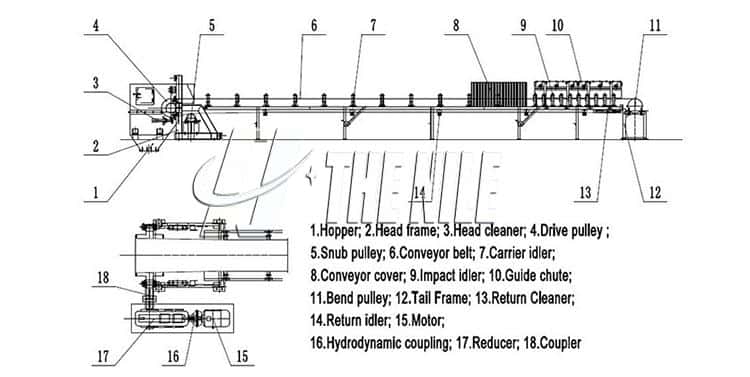

The structure of the belt conveyor machine

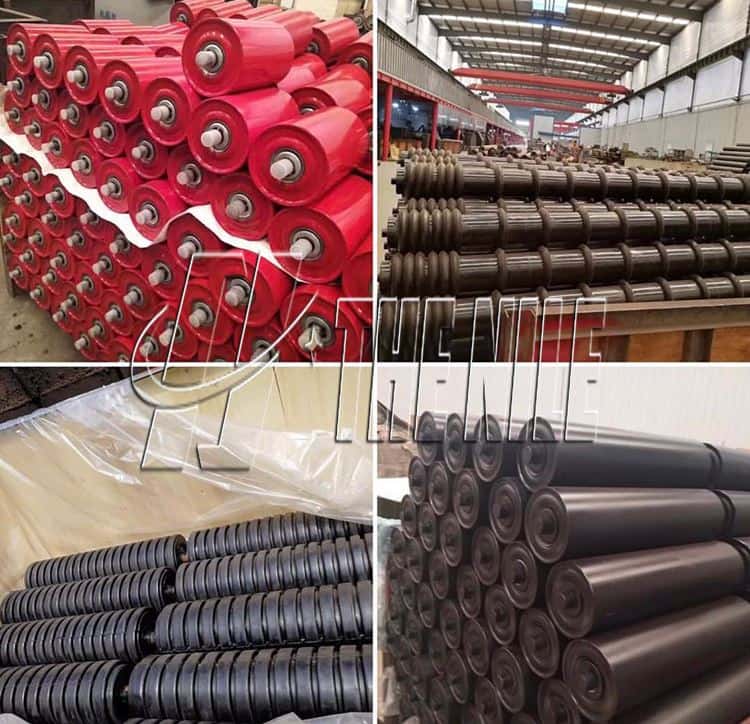

The belt conveyor is mainly composed of a frame, a conveying belt, a belt roller, a tensioning device, a driving device, and a transmission device.
Type of belt conveyor
There are four types of belt conveyors: ordinary conveyor belts, nylon conveyor belts, polyester (EP) conveyor belts, and heat-resistant conveyor belts. Each type of conveyor belt has a different scope of application.

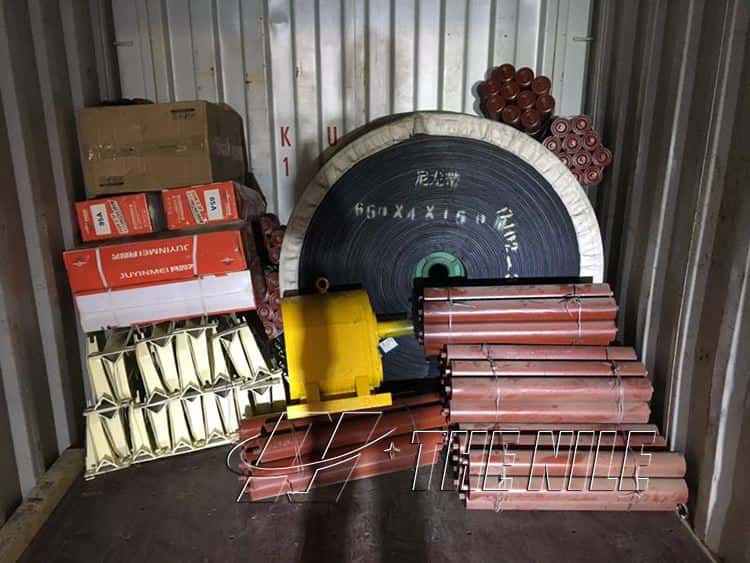

Packaging and shipping

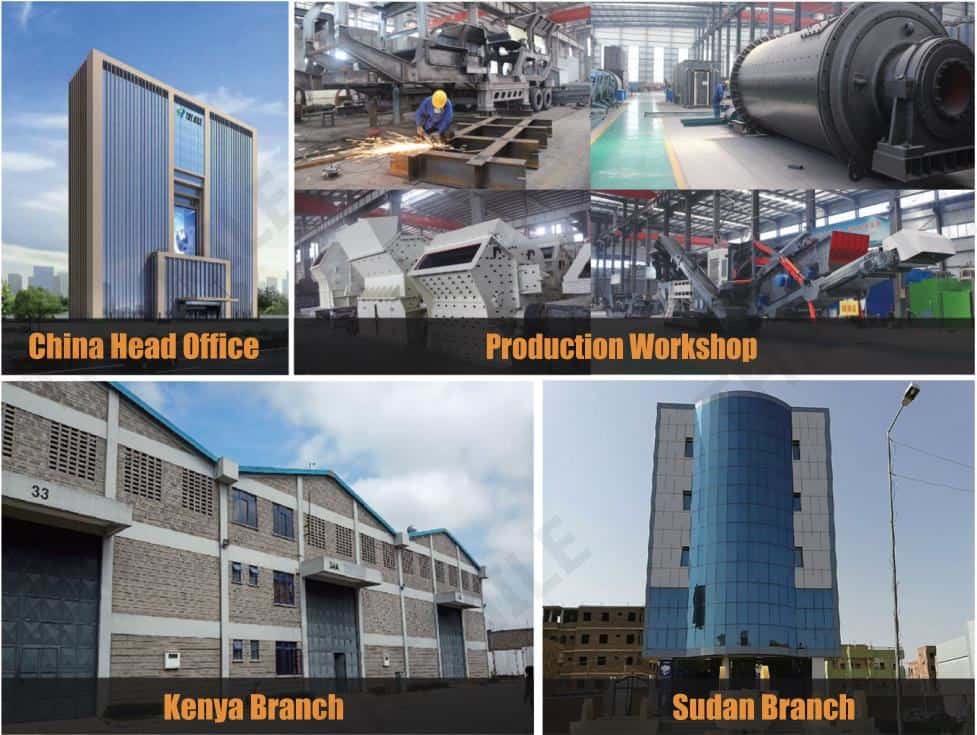

Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
| Model | Width of belt(mm) | Speed(m/s) | Capacity(t/h) | Diameter(m)/power(kw) | ||||
| B500 | 500 | 0.8-2 | 20-40 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | / | / |
| B650 | 650 | 0.8-2 | 40-60 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | / | / |
| B800 | 800 | 1.0-2 | 50-80 | ≤10/5.5 | 10-15/7.5 | 15-20/11 | 20-25/15 | 25-30/18.5 |
| B1000 | 1000 | 1.0-2 | 100-150 | ≤10/7.5 | 10-15/11 | 15-23/15 | 15-23/15 | 23-30/18.5 |
| B1200 | 1200 | 1.0-2 | 150-250 | ≤10/11 | 10-18/15 | 18-22/18.5 | 22-25/22 | 25-30/30 |
