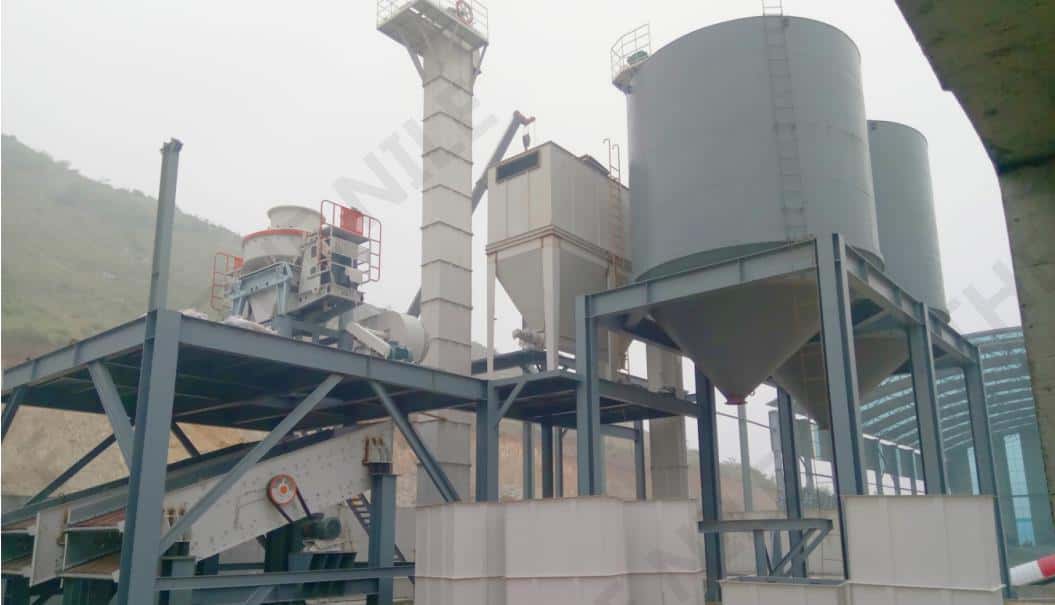

Bucket elevators are widely used in the transportation of powder, granular, small lumps, low-abrasive or non-abrasive materials, such as raw meal, cement, coal, limestone, dry clay, clinker, etc.
Product description

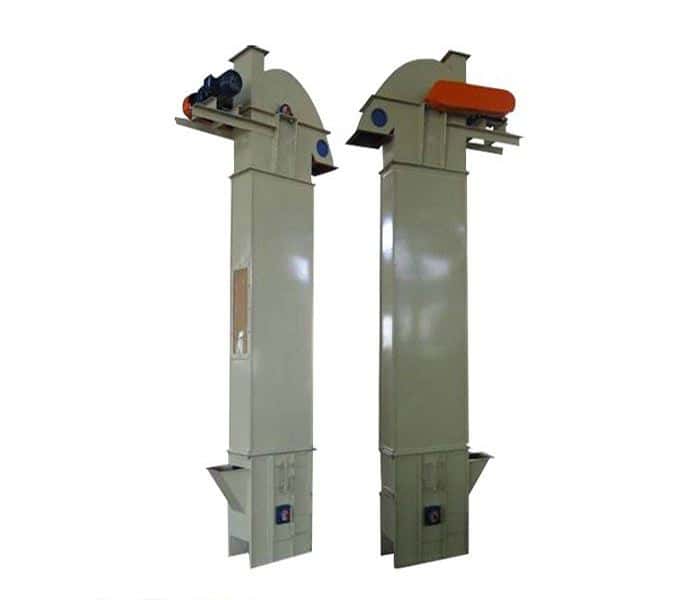

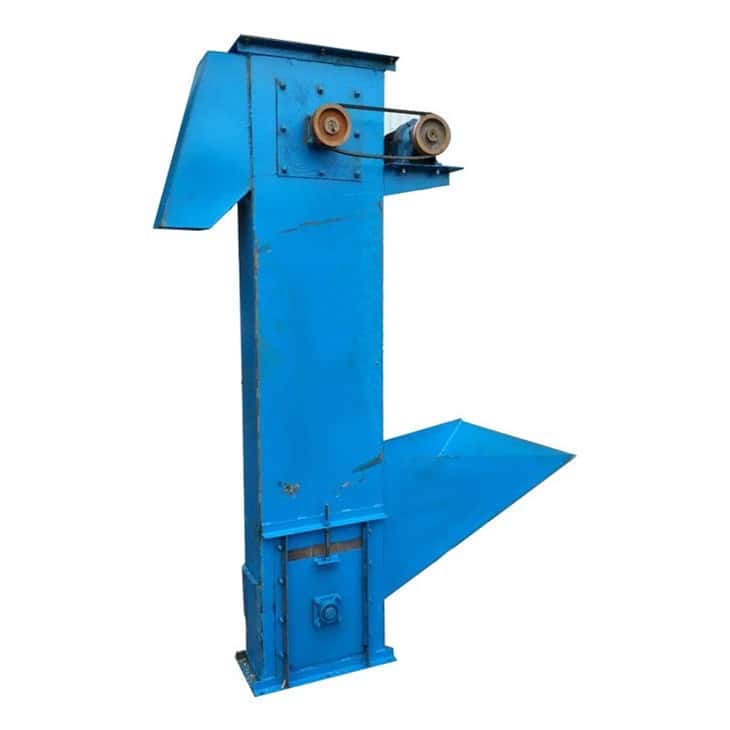

TH type bucket elevator is a kind of ring chain bucket elevator with a large conveying capacity. It adopts centrifugal or mixed unloading. It is suitable for conveying powder, granular and small materials with a bulk density of less than 1.5 t/m³. It has a structure Simple, stable operation, environmental protection and energy-saving, wide application range, and many other advantages.
Working principle of bucket elevator conveyor
The hoist adopts inflow feeding and induced unloading. The material flows into the hopper of the bucket elevator and is lifted to the top by a plated chain, and the material is discharged by itself under the action of gravity, which is convenient and quick.
Characteristics of bucket elevator for sale
1. Simple structure and low power consumption.
2. Small size, saving floor space.
3. Sealed and environmentally friendly. The bucket elevator can operate in a fully enclosed casing without raising dust and avoiding environmental pollution.
4. The lifting capacity is large and can reach a higher lifting height, generally up to 30 m.
5. The lower part adopts a gravity automatic tensioning device, which can maintain a constant tension and avoid slipping or chain disconnection. At the same time, when the hopper encounters resistance, it has a certain capacity to effectively protect the moving parts.
The structure of the bucket elevator machine

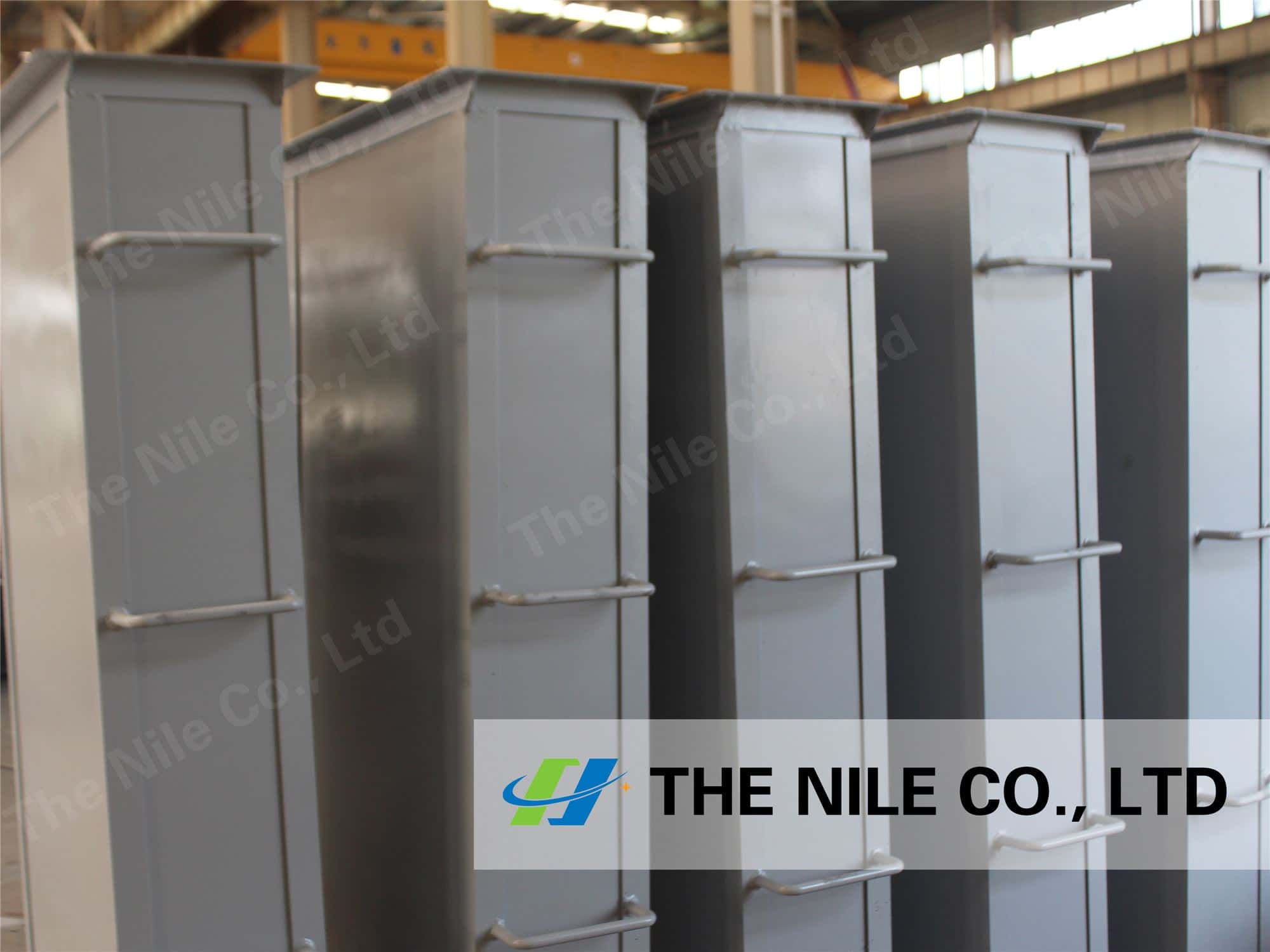

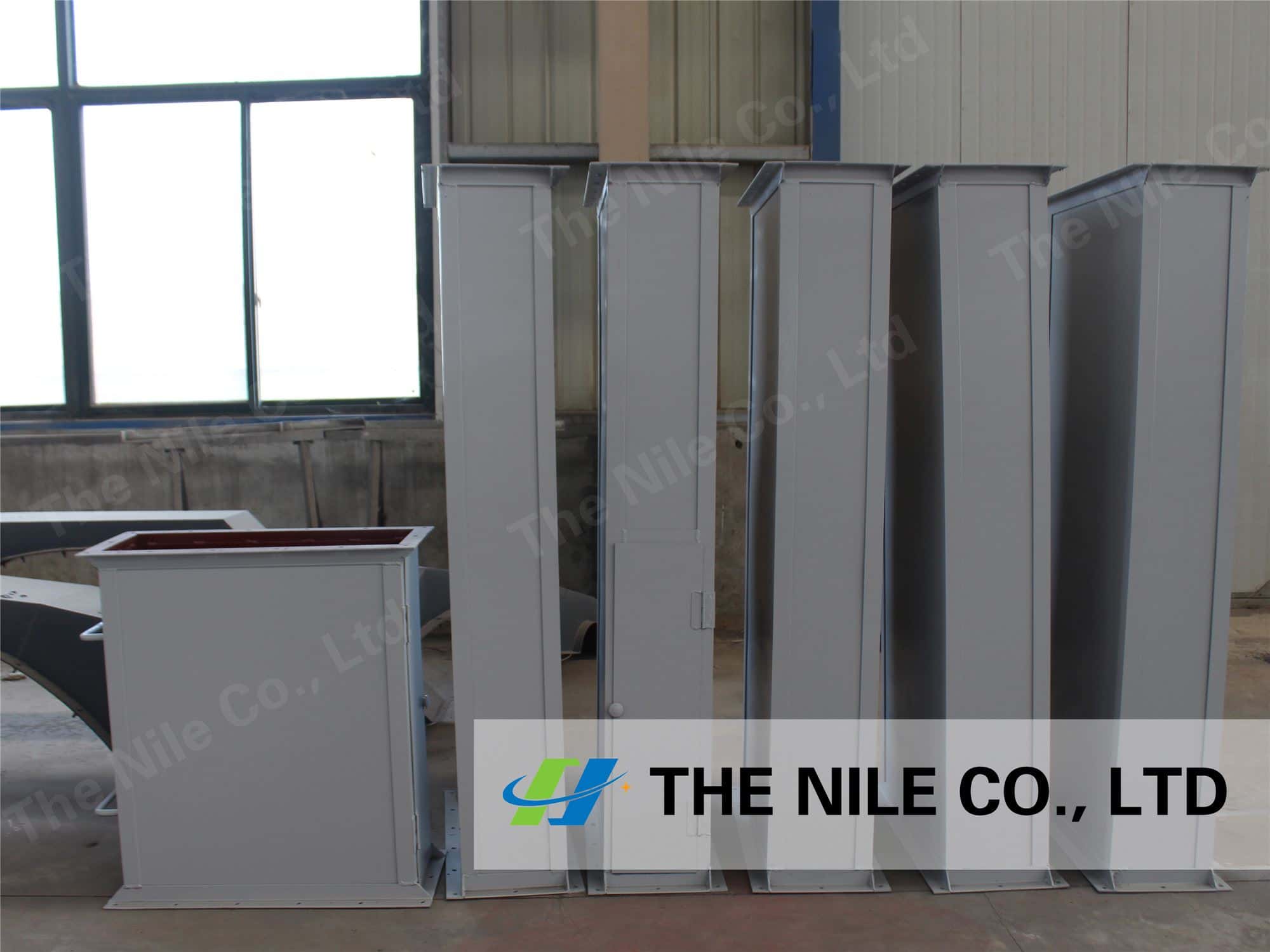

The bucket elevator is mainly composed of a casing, a driving device, a sprocket, a hopper, a traction chain, a braking device, a discharge port, and other components.
Company strength

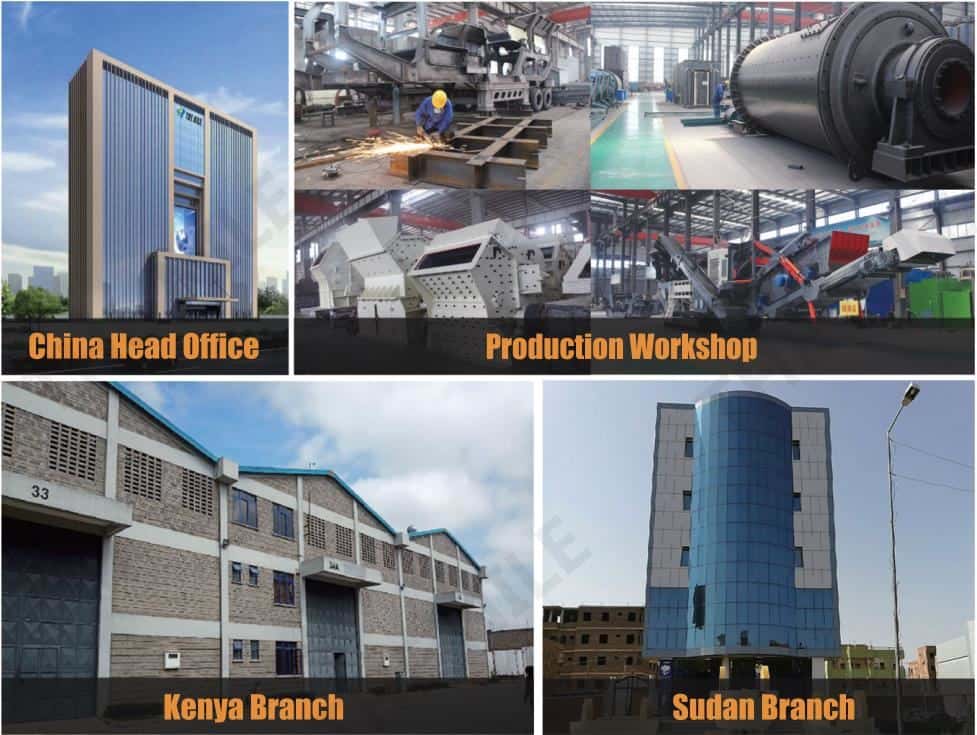

The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
| Model | Capacity(m³/h) | Chain speed(m/min) | Material size | Bucket capacity(L) | Bucket width(mm) | Distance of bucket(mm) |
| TH160 | 16 | 69.7 | ＜20 | 1.9 | 160 | 500 |
| TH210 | 18 | 63.2 | ＜30 | 2.4 | 210 | 500 |
| TH315 | 35 | 42.5 | ＜30 | 6 | 315 | 512 |
| TH350 | 42 | 40.1 | ＜30 | 7.2 | 350 | 512 |
| TH400 | 58 | 37.6 | ＜30 | 9.5 | 400 | 512 |
| TH500 | 73 | 35.8 | ＜40 | 15 | 500 | 688 |
| TH630 | 114 | 31.8 | ＜40 | 23.6 | 630 | 688 |
