The electromagnetic vibrating feeder can be used for a quantitative or continuous supply of bulk, granular, or powder materials. It is widely used in mining, metallurgy, coal, electric power, chemical, food, glass, refractory, and other industries.
Product description

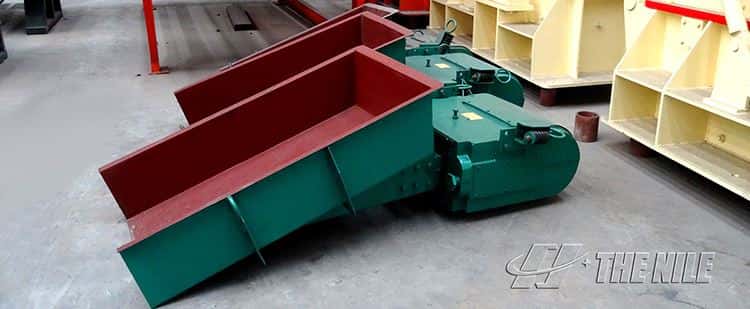

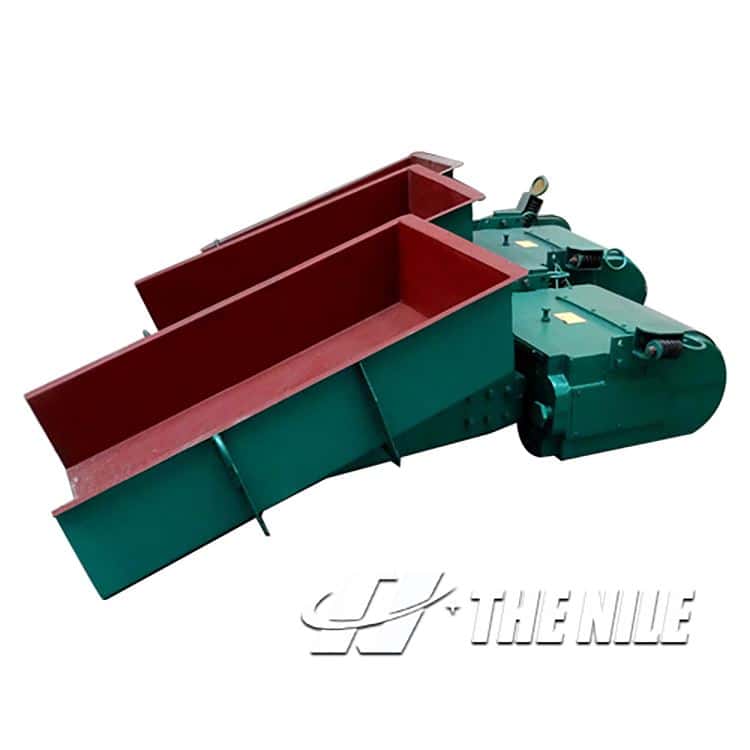

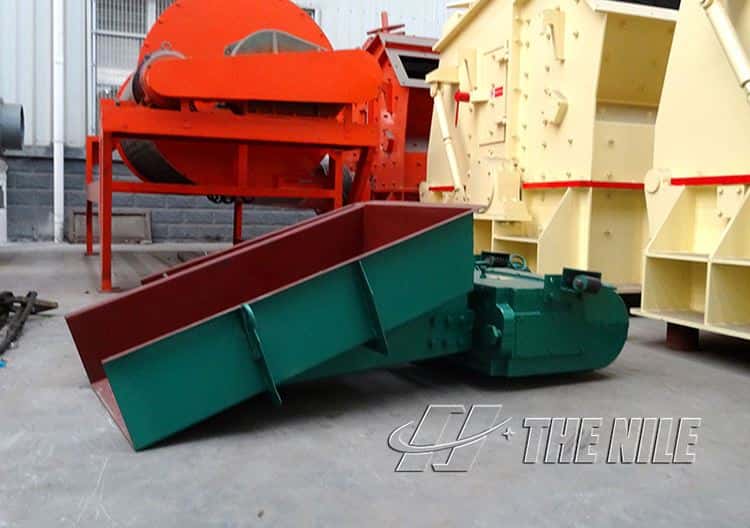

Electromagnetic vibrating feeder is a kind of equipment that implements flow operation automation, divided into open type and closed type. The electromagnetic vibrating feeder is used to uniformly or quantitatively supply materials from the storage bin or other storage equipment to the receiving equipment. It is essential equipment for the automation of flow operations.
The working principle of electromagnetic vibrating stone feeder
The electromagnetic vibrating feeder machine is a relatively complete elastic system with two-point directional forced vibration. The entire system works in a low critical resonance state. The electromagnetic exciter is mainly used to drive the tank to reciprocate and vibrate at a certain inclination angle to make the material move along the tank.
Features of electromagnetic vibrating feeder machine
1) The electrical control of the electromagnetic vibrating feeder for mine adopts a half-wave rectifier circuit, which can adjust the feeding amount steplessly and can be used in the automatic control production process to realize the automation of the production process.
2) No rotating parts, no lubrication, simple structure, and convenient maintenance.
3) The material of the electromagnetic vibration feeder is micro-throwing motion, and the trough wear is small.
4) The electromagnetic vibrating feeder can use a trough made of suitable plates, which is suitable for conveying materials with severe high-temperature wear and corrosiveness.
Structure composition of electromagnetic vibrating feeder

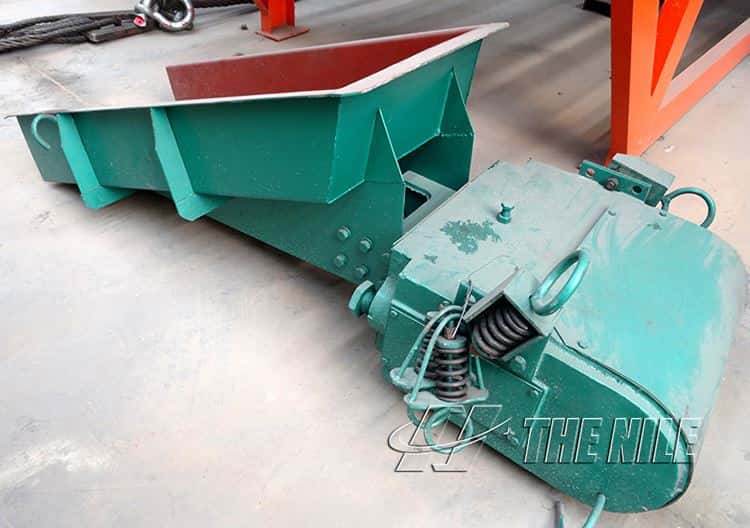

The electromagnetic vibrating feeder equipment consists of a trough, an electromagnetic exciter, and a shock absorber. The exciter is composed of an electromagnet (iron core and coil), an armature, and the main vibration spring installed between them. It is the excitation source for vibration. The work of the exciter can be controlled by a certain control device.
Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
| Model | Capacity(t/h) | Power(w) | Voltage(v) | Current(A) | Weight（kg） |
| GZ1 | 5 | 60 | 220 | ≤1 | 120 |
| GZ2 | 10 | 150 | 220 | ≤2.3 | 155 |
| GZ3 | 25 | 200 | 220 | ≤3.8 | 225 |
| GZ4 | 50 | 450 | 220 | ≤7 | 460 |
| GZ5 | 100 | 650 | 220 | ≤10.6 | 750 |
