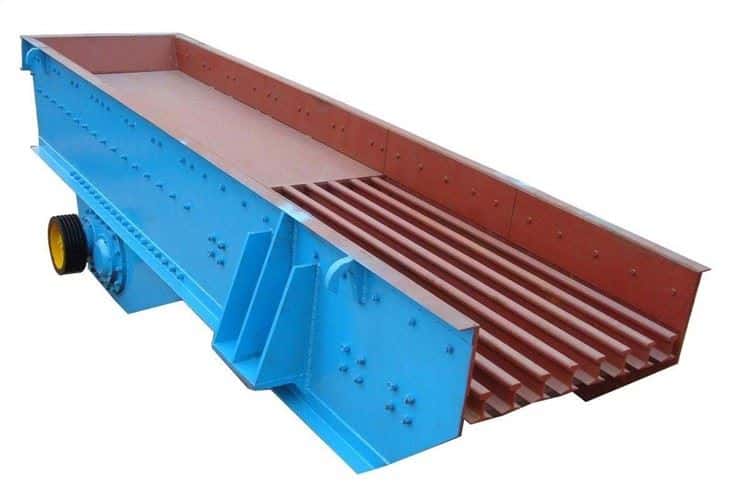

A vibrating feeder machine, also known as the GZD series vibrating feeder, refers to a kind of equipment that can uniformly, regularly, and continuously feed lump and granular materials from the storage bin to the receiving device.
Product description:

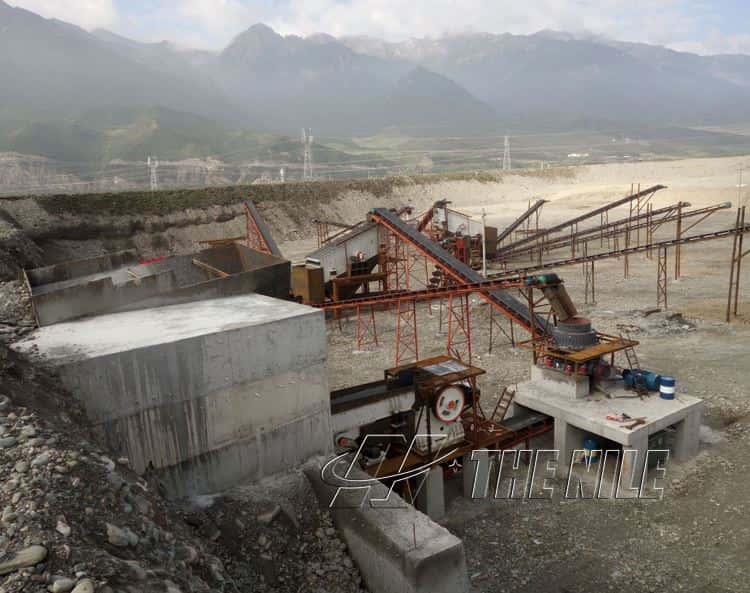

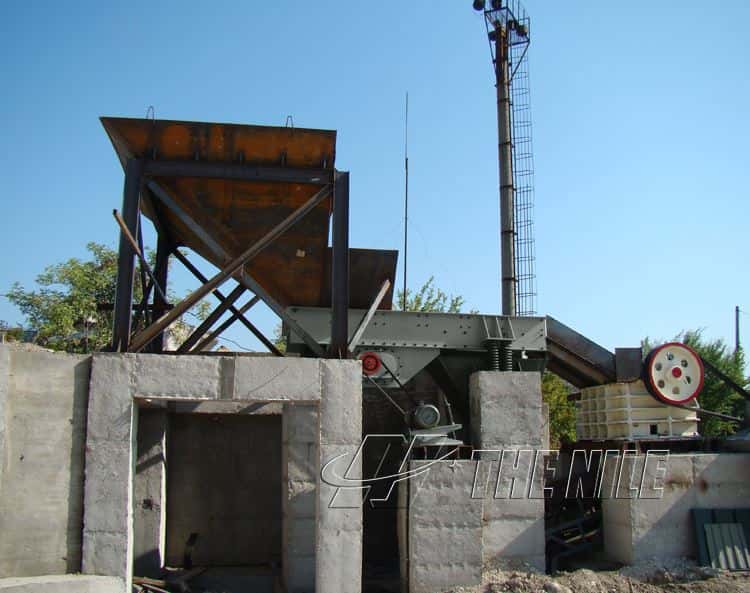

The vibrating feeder machine is mainly used for continuous and uniform feeding of the crusher in the sand and gravel production line, and coarse screening of the materials. It can be used for granite, limestone, marble, basalt, copper ore, iron ore, river pebble, and other materials.
The working principle of vibrating conveyor feeder
The motor drives the main shaft through the V-belt, and the gear of the main shaft drives the other driven shaft to rotate. The two shafts simultaneously rotate in reverse and the tank body vibrates to make the material move continuously, so as to achieve the purpose of transporting the material. The feeder is specially designed to use any hard and abrasion-resistant material uniformly and continuously.
Features of stone vibrating feeder
1. Low noise and low environmental pollution.
2. Uniform feeding and strong continuity
3. Convenient maintenance and low operating cost.
4. Low energy consumption and long service life.
5. light weight, small size, stable vibration.

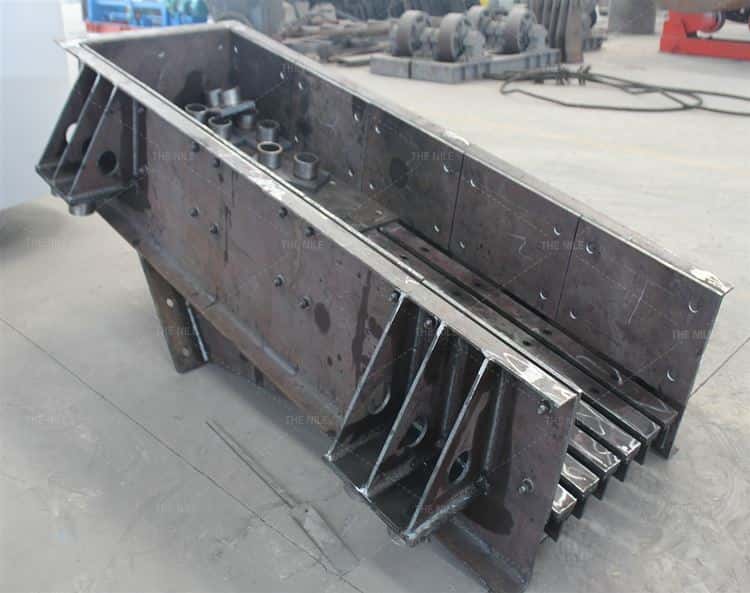

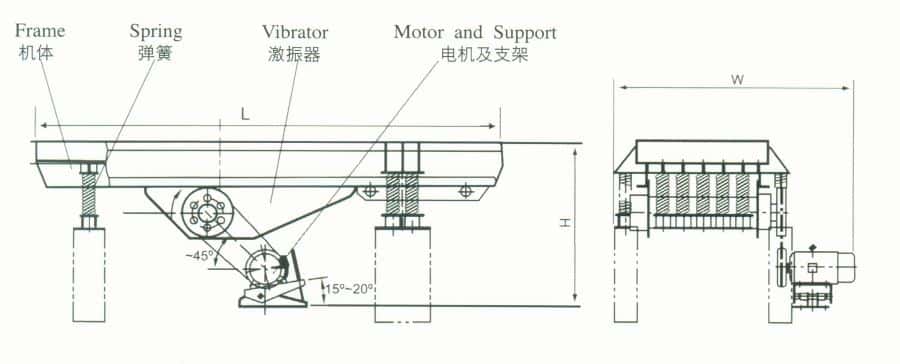

The structure of the high efficiency vibrating feeder
The vibrating feeder for mine is composed of a feeding trough, a vibration exciter, a spring bearing, and a transmission device. The vibration source of the feed through vibration is the vibration exciter. The exciter consists of two eccentric shafts and gears.

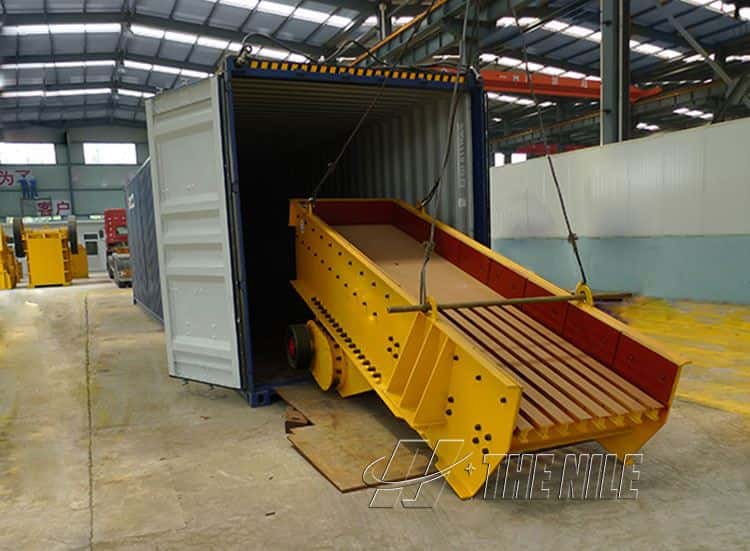

Packaging and shipping
Company strength
The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.
| Model | Feeding size | Capacity | Power | Weight | Dimension |
| (mm) | (t/h) | (kw) | (t) | (m) | |
| GZD850*3000 | ≤400 | 40-100 | 7.5 | 3.9 | 3.1*1.79*1.61 |
| GZD960*3800 | ≤500 | 120-210 | 11 | 4.22 | 3.84*1.96*1.62 |
| GZD1100*4200 | ≤600 | 150-350 | 15 | 4.68 | 4.38*2.1*1.67 |
| HZD1300*4900 | ≤750 | 350-530 | 22 | 6.2 | 5.2*2.37*1.72 |
| HZD1500*6000 | ≤800 | 450-810 | 30-45 | 10.3 | 6.16*2.918*2.292 |
