1. Simple structure; light and nimble; no moving part
2. Low maintenance charge, easy to attach and detach
3. Large processing capacity
4. The classification particle size can reach 10μm

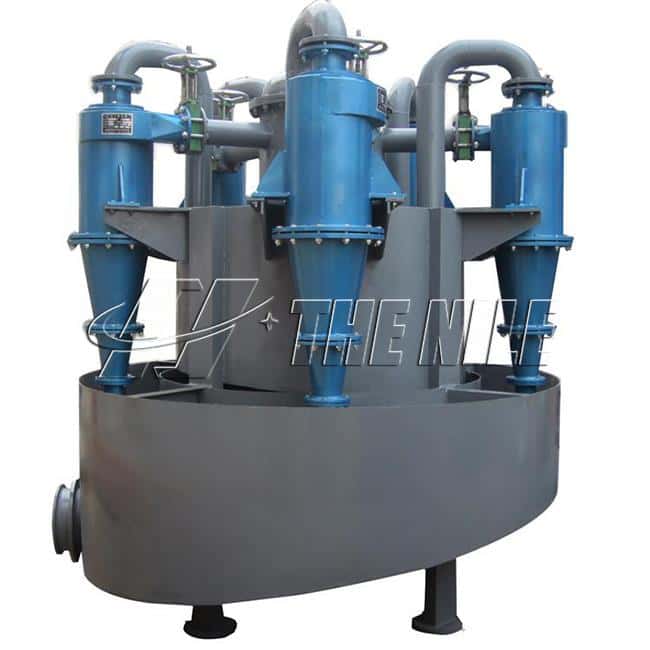

Water cyclone separator hydraulic cyclone for mining

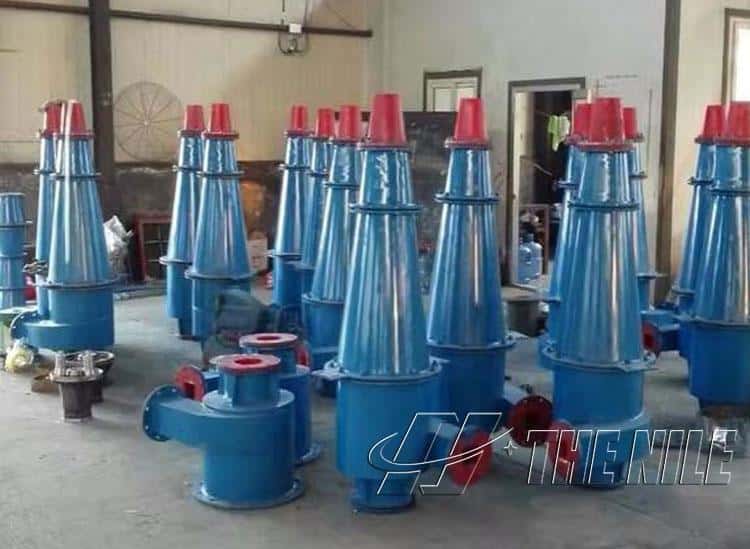

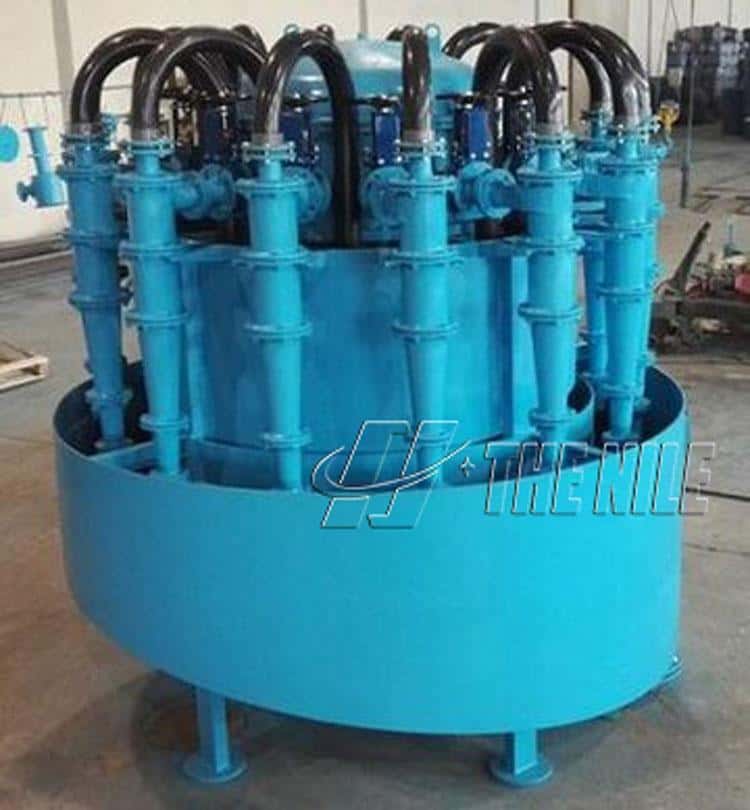

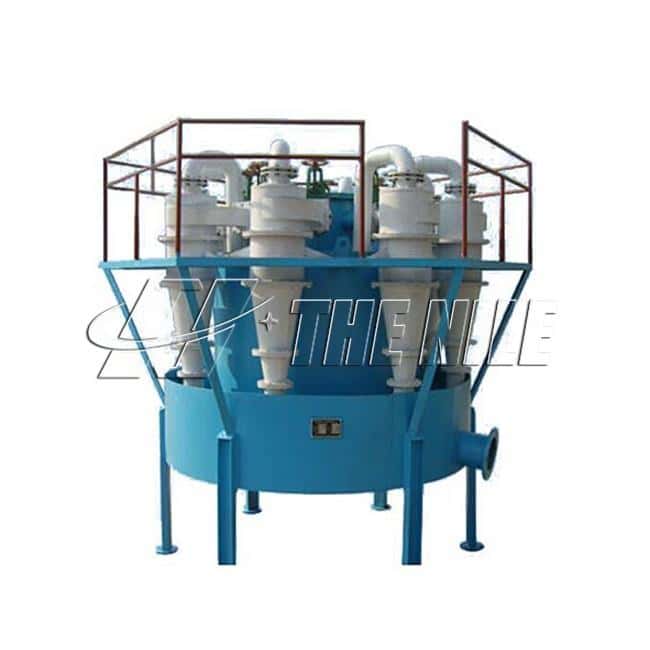

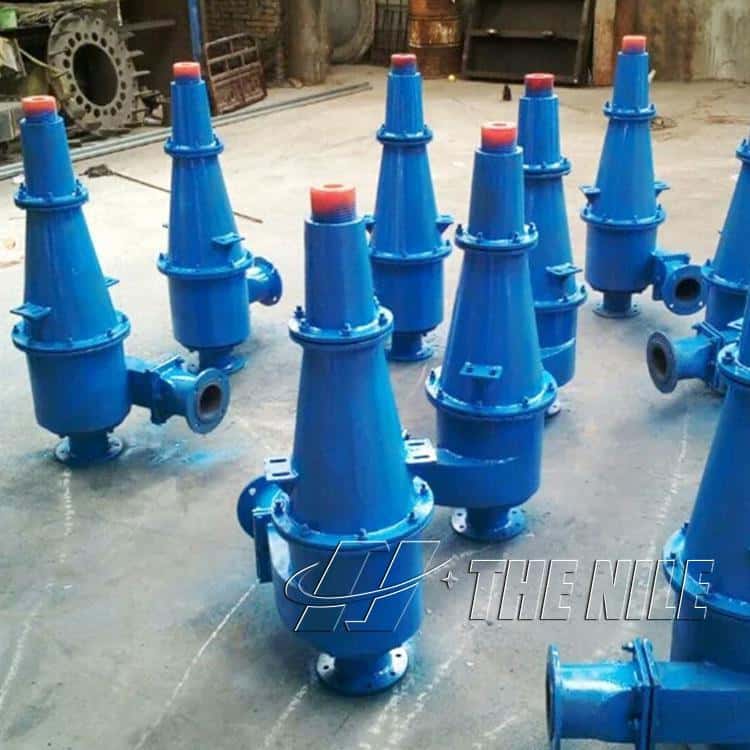

| Hydro-cyclone is a kind of equipment for classifying the ore pulp by use of centrifugal force. It has no motion and dynamic parts,and needs to be matched with corresponding slurry pump. It is mainly used in ore dressing industry for classifying, dewatering and desliming. |
| Hydro-cyclone has been extensively used for closed circuit grinding and classification system , thickening, desliming, dewatering , tailings filling, damming, recovery processes in ferrous, nonferrous metal and nonmetal mine industries, and is deeply popular with customers due to high classification efficiency, simple structure, large throughput, and small occupied area. |
Working Principle In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader. It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode of cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration. |
Main Features 1. Simple structure; light and nimble; no moving part 2. Low maintenance charge; easy to attach and detach; save floor space; low construction expense 3. Large processing capacity 4. The classification particle size can reach 10μm |
Model | Diameter | Overflow Pipe | Bottom Exit | Cone | Max. | Capacity | Classify |
FX500 | 500 | 130, 140, 150, | 35, 45, 50, 65, | 10 | 10 | 140-220 | 74-200 |
FX350 | 350 | 80, 90, 105, | 30, 35, 40, 45, | 15 | 6 | 60-105 | 50-150 |
FX300 | 300 | 55, 65, 80, | 20, 25, 30, | 15 | 5 | 45-90 | 50-120 |
FX250 | 250 | 60, 75, 80, | 16, 18, 20, 25, | 10 | 3 | 40-65 | 40-100 |
FX200 | 200 | 40, 50, | 16, 20, 24, | 15 | 2 | 25-40 | 40-100 |
FX165 | 165 | 40, 50, | 30, 35, 40, | 20 | 1.5 | 20-30 | 40-90 |
FX150 | 150 | 30, 35, 40, | 8, 10, 12, 14, | 8 | 1.5 | 11-20 | 30-74 |
