Processing Material: River pebble, marble, granite, limestone, basalt, iron ore, quartz stone, coal gangue, copper ore,calcite, barite, gypsum, bentonite, talc, dolerite etc. Applied Field: Vibrating feeder is widely used in crushing and screening combined equipment in metallurgy, mineral processing, chemical industry, coal mine, building materials, abrasives and other industries.
Working Principle

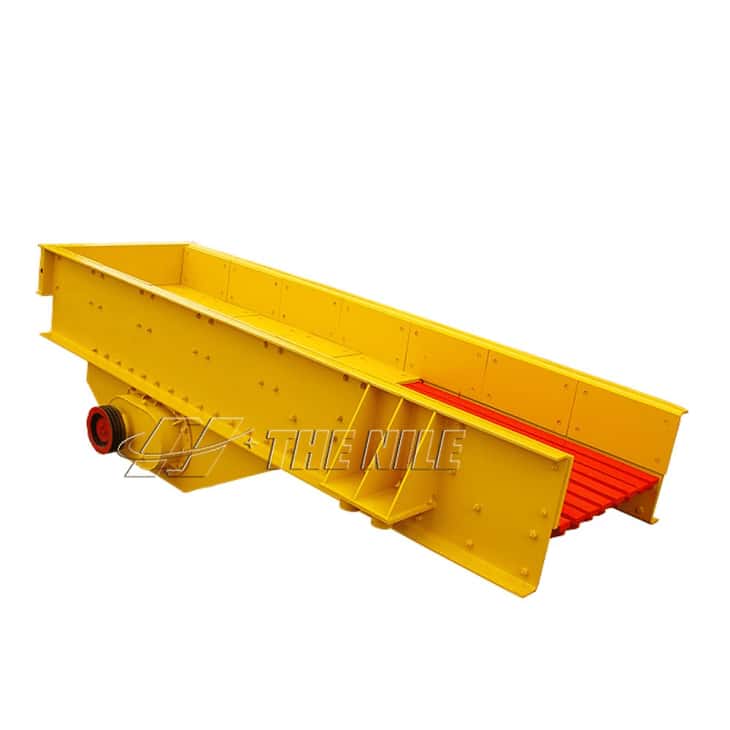

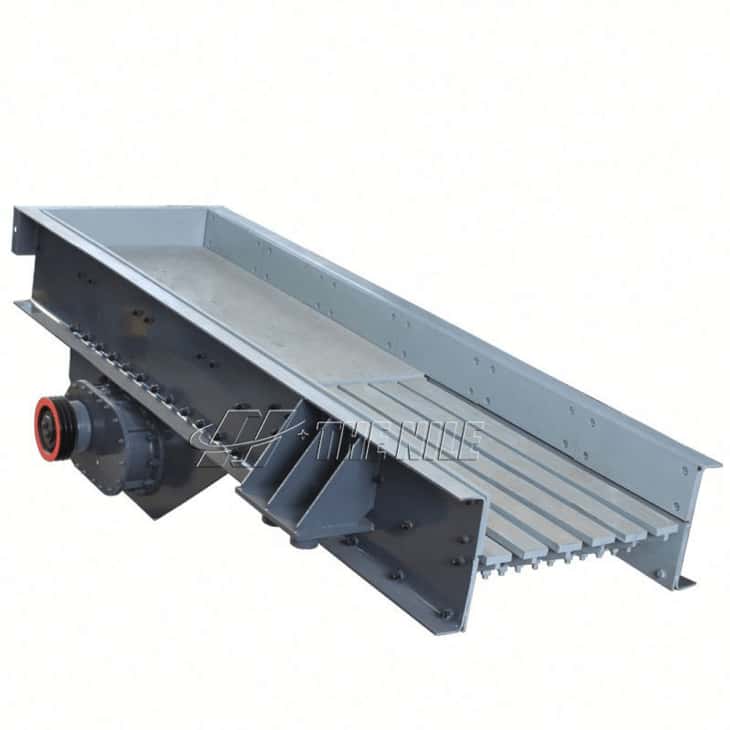

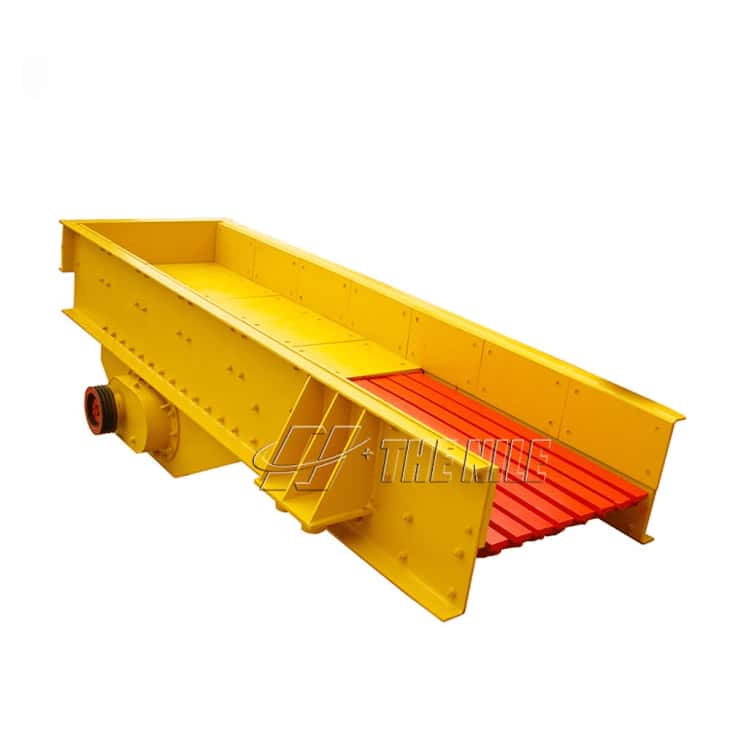

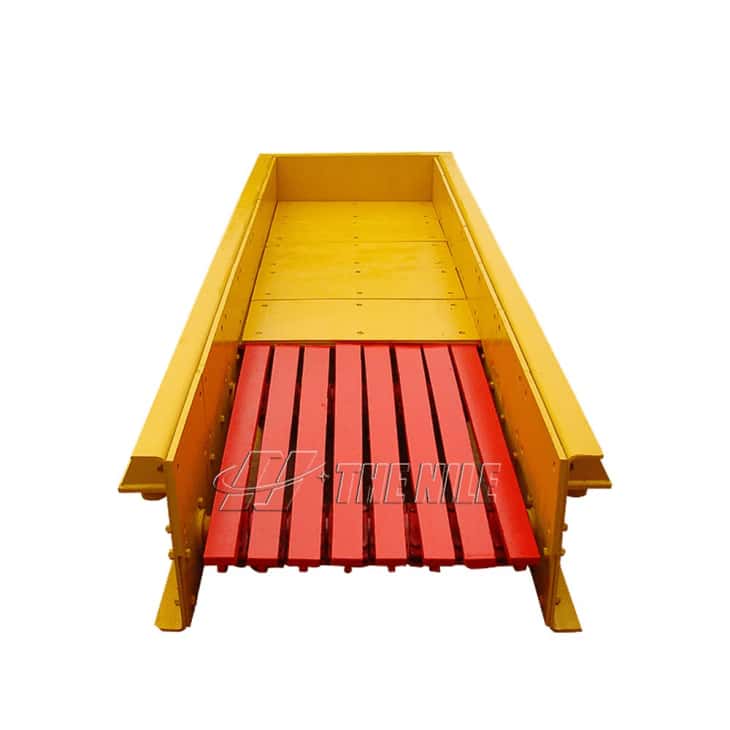

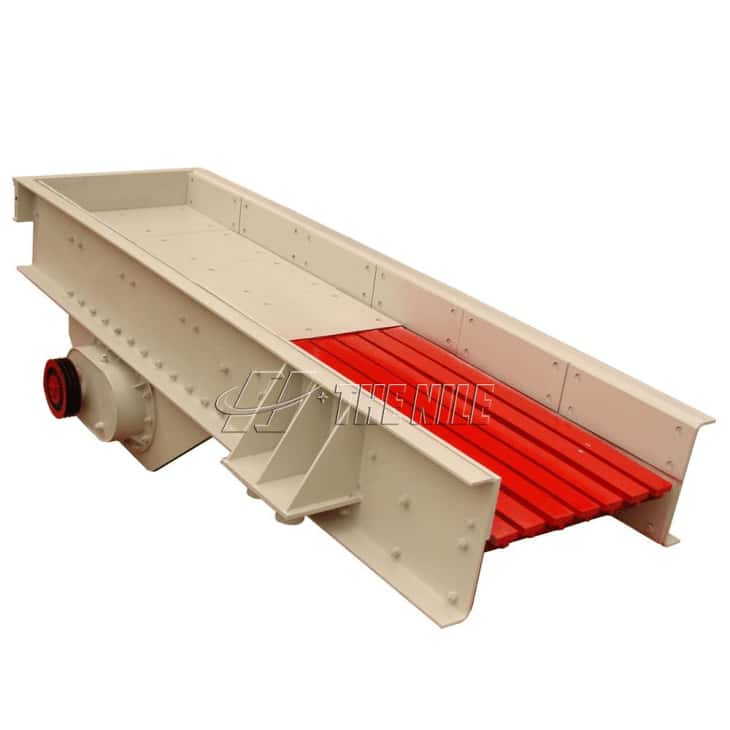

The vibrating feeder machine is connected by frame-shaped groove rivets. Shield and bars on the machine are made of manganese steel.Furthermore, high-quality vibrator and strong structure can stand the high-strength assault and wear. It is suitable for conveying crusher to transport large lump materials, especially for black ore, non-ferrous metal ore, building stone, and other materials. During feeding, excess material such as soil and small particles can be separated out under the gap between the bars, so that the crusher has better performance.
Advantages:
1) Simple structure.
2) Steady vibration.
3) Exclusive vibrator technology.
4) Easy maintenance and low operating costs.
As a professional manufacturer of crushing and mineral processing equipment, Nile Machinery Co., Ltd can provide the reasonable price and perfect configuration solutions to ensure greater economic benefits.If you are interested in vibrating feeder, you can chat online with our engineers or send your detailed requirement to our official email: mining@nile.ltd.
Model | Feeding size | Capacity | Power | Weight | Dimension |
HZD850*3000 | ≤500 | 40-100 | 11 | 3.1 | 3.1*1.79*1.61 |
HZD960*3800 | ≤500 | 120-210 | 11 | 4.22 | 3.84*1.96*1.62 |
HZD1100*4200 | ≤600 | 150-350 | 15 | 4.68 | 4.38*2.1*1.67 |
HZD1200*4200 | ≤650 | 270-380 | 18.5 | 5 | 4.38*2.26*1.69 |
HZD1250*4900 | ≤750 | 350-530 | 22 | 6.2 | 5.2*2.37*1.72 |
HZD1500*6000 | ≤800 | 450-810 | 30 | 7.1 | 6.09*2.57*2.1 |
