Drum Magnetic Separator

Technical Parameters

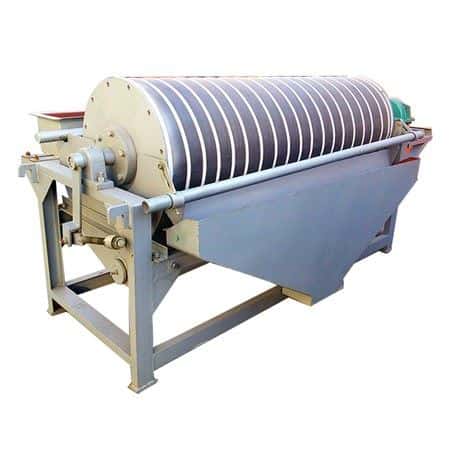

Introduction of Drum Magnetic Separator

A high-intensity drum magnetic separator is used to separate magnetic minerals with a particle size of 0-6mm. On the basis of the feasibility of magnetic separation, the weak magnetic minerals are sorted through the design of single-tube permanent magnetic drum-type iron removal and strong magnetic roller-type sorting form. According to the movement direction of the magnetic products and the selected minerals, the machine has a large processing capacity, a wide range of mineral size and grade, and high separation precision, which is suitable for the roughing and cleaning of medium and weakly magnetic ores. The output grade of this machine is concentrate and tailings.

Advantages of Drum Magnetic Separator

1.The high-intensity drum magnetic separator adopts the permanent magnetic system multi-stage separation design, with stable operation and concentrate grade, which can guarantee the large processing capacity.

2.The whole machine has a compact structure, small size, lightweight, high efficiency, low power consumption, and is very conducive to maintenance and repair.

3.The transmission principle is very simple, the operation is convenient, and the work efficiency is very high.High-intensity drum magnetic separator integrated with higher electrical control technology, which makes the production operation convenient and easy to understand, and reduces the labor intensity of the operator while improving work efficiency.

4. The separator bucket of the machine is equipped with an adjustable partition plate. The main trough, guide trough, and partition plate are all made of highly wear-resistant stainless steel materials, which can effectively ensure the service life of the machine and prevent rust from affecting the location of the minerals. The dividing plate can be flexibly adjusted and fast fixed, which plays a great role in guaranteeing the quality of the mine during the production process.
