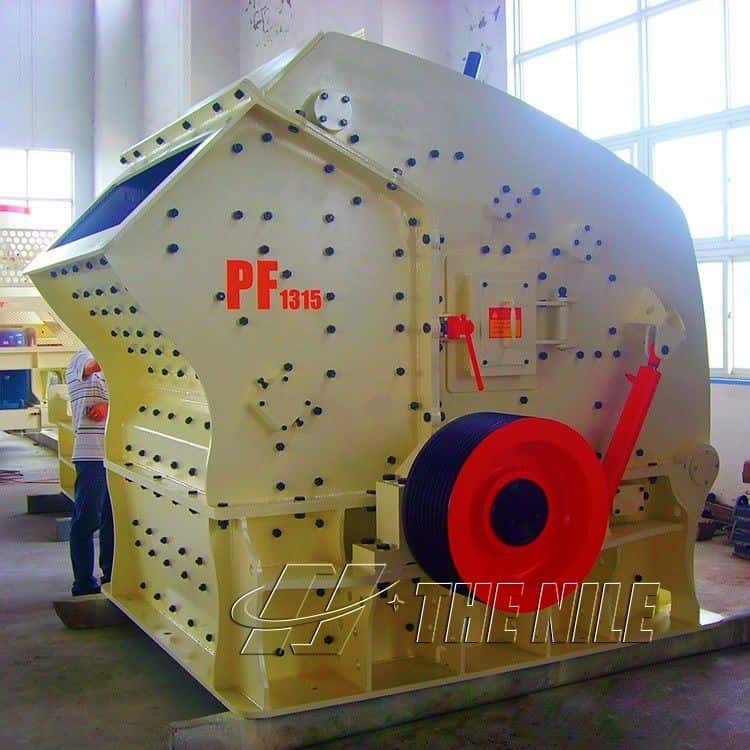

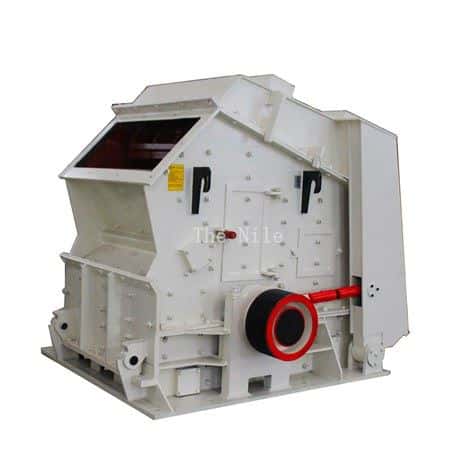

Aggregate Impact Crusher

Technical Parameters

Working Principle of Aggregate Impact Crusher

The rotor rotates at high speed under the drive of the motor when working. When the material enters the impact area of the blower in the casing, it is crushed by the high-speed impact of the blower, and at the same time, it is thrown to the impact board installed above the rotor to be crushed again. Then it bounces back from the impact board to the hammer to crush again to the required particle size and discharge out of the machine. According to the number of rotors, it can be divided into a single rotor impact crusher and a double rotor impact crusher. Among them, the dual-rotor impact crusher can be divided into two rotors rotating in the same direction and in different directions. The difference between hammer crusher and impact crusher is that the impact crusher can make more effective use of high-speed impact energy, the whole material is stressed and the impact cavity is large.

Performance Advantages

1.The finished material of the impact crusher is uniform and three-dimensional. It is suitable for crushing medium-hard materials with the advantages of large production capacity and small discharge particle size.

2.High production capacity and smooth feeding. The impact crusher has a large feeding port, high crushing cavity, and high hardness of suitable materials, which can process all kinds of common ores with less stone powder.

3.Wear-resistant and long life. The use of a high chromium plate hammer makes impact resistance, wear-resistance, and impact force. The full crushing function makes the small wear of parts and high comprehensive benefit.

4. Environmental protection and energy saving. Aggregate impact crusher is equipped with perfect dust collection and noise reduction devices, which can greatly reduce dust and noise pollution and realize green production.
