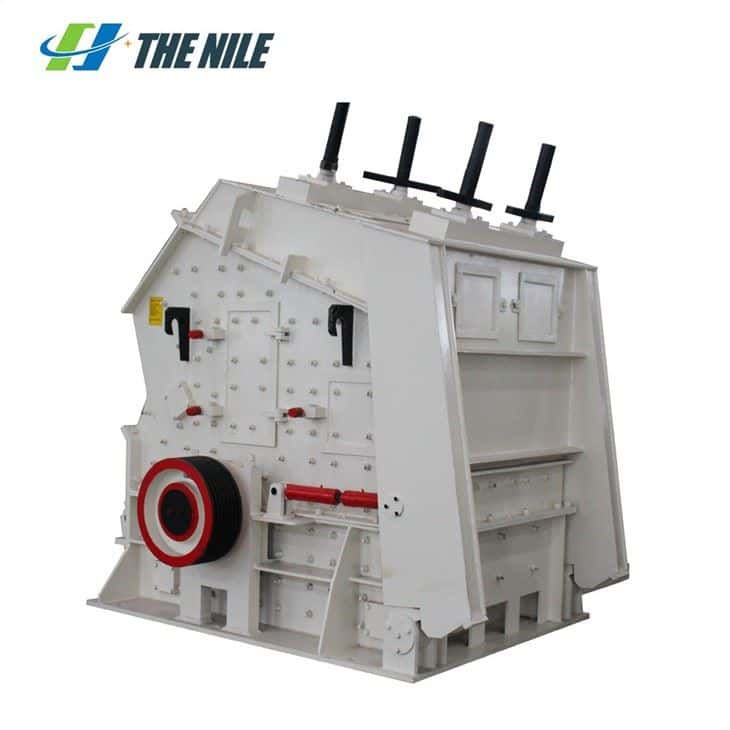

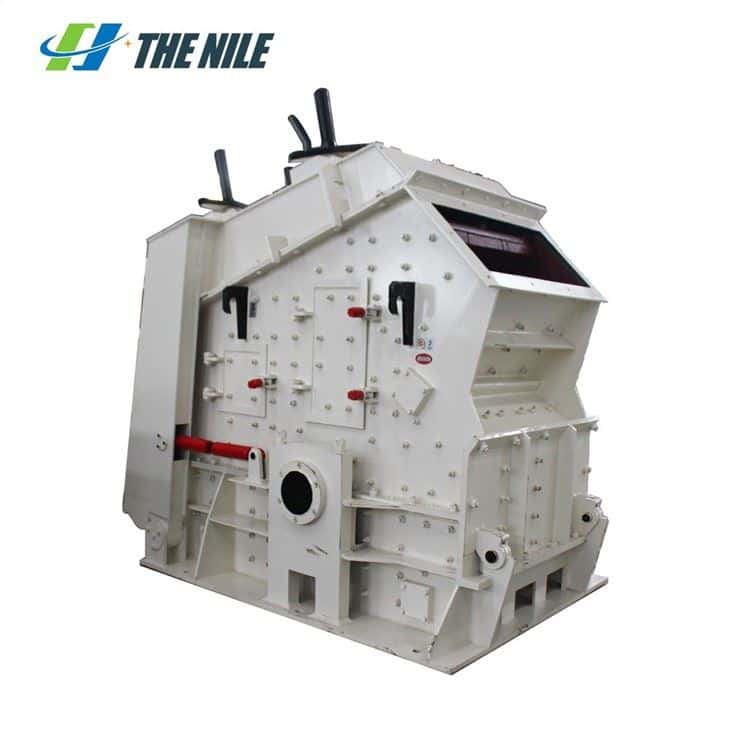

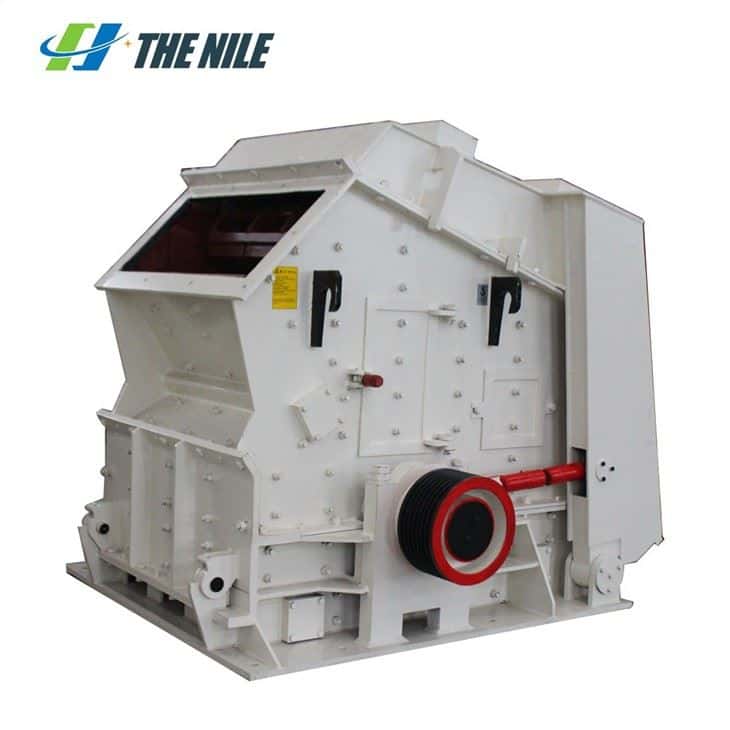

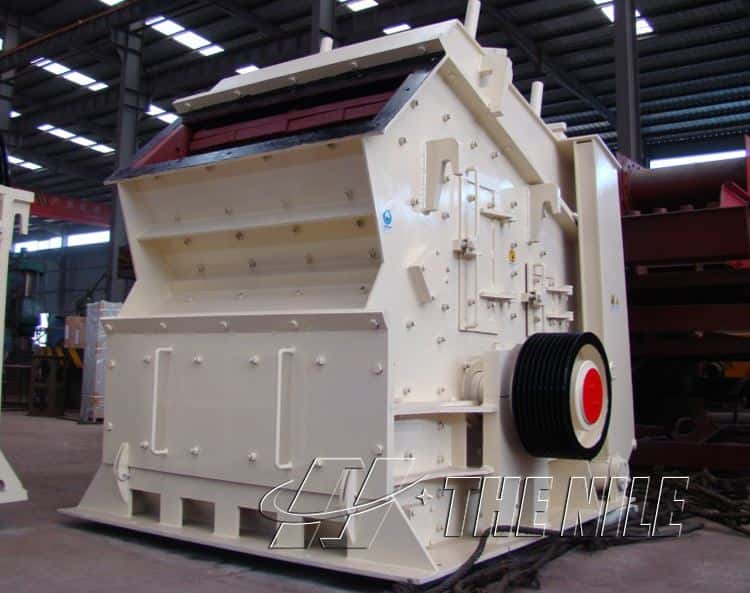

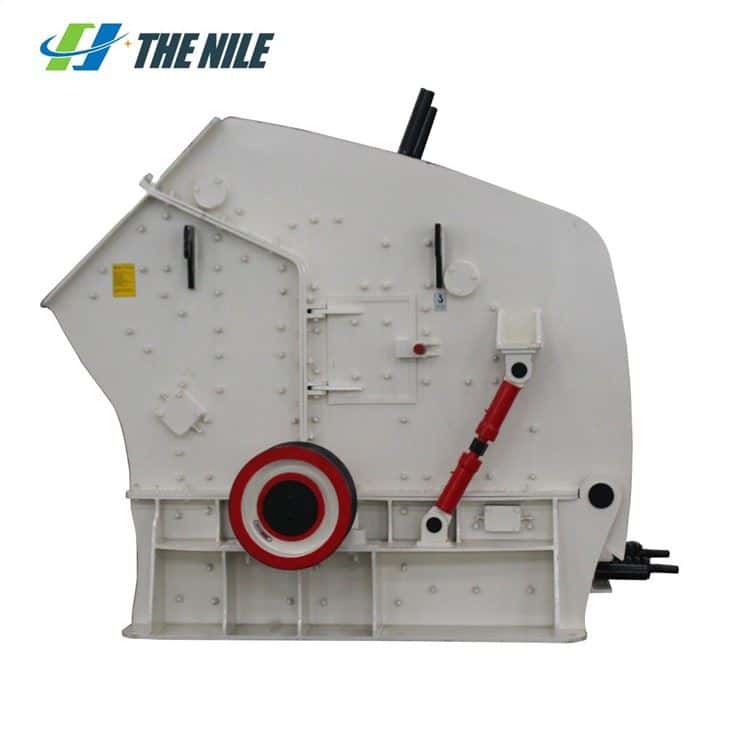

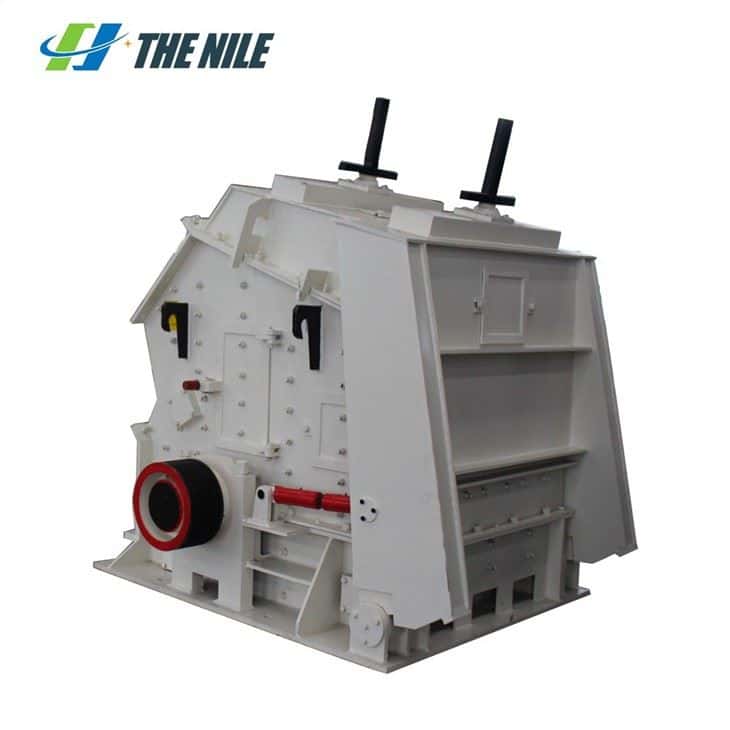

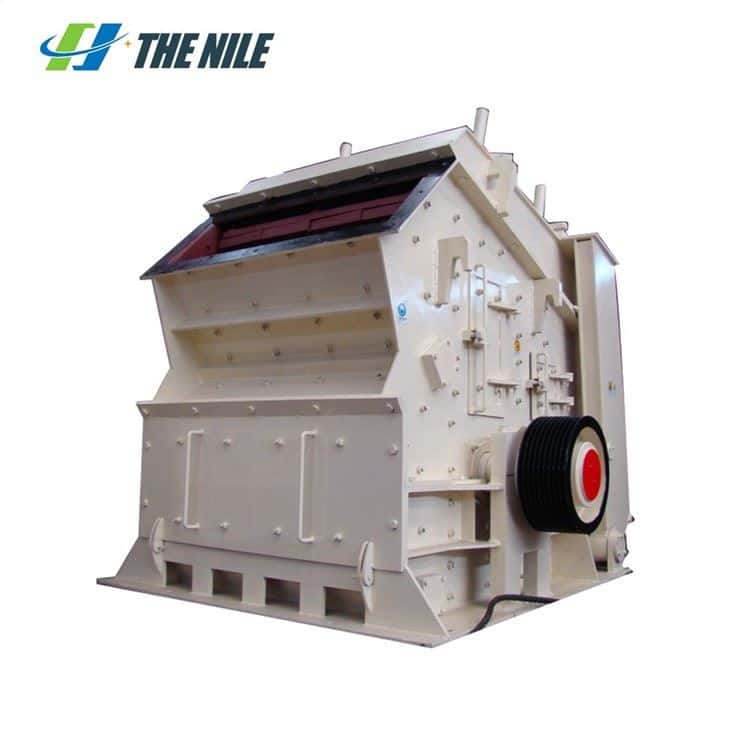

PF Series Impact Crusher Machine

Product description

PF series impact crusher machine is a device that uses impact energy to crush brittle materials. It has a unique structure, simple operation, high efficiency and energy saving, cubic product shape, adjustable discharge particle size, optional crushing, simplified crushing process, and saving cost, and other characteristics.

The working principle of impact stone crusher

The impact crushing machine is a crushing machine that uses impact energy to crush materials. When the machine is working, driven by the motor, the rotor rotates at a high speed. When the material enters the impact area of the blower, it hits and breaks with the blower on the rotor, then is thrown to the counterattack device and broken again, and then bounces off the counterattack liner. Return to the hammer action area to re-crush. This process is repeated. The material enters the first, second, and third impact chambers from large to small, and is repeatedly crushed until the material is crushed to the required particle size and discharged from the discharge port.

Features of impact stone crusher machine

1. The crushing particle size is uniform and the work efficiency is high.

2. The structure is compact, and the discharge is smaller in particle size and cubic shape, without internal cracks.

3. The size of the feed inlet is large, which is convenient for production line layout and material crushing.

4. The product has a long service life and easy maintenance

5. The maintenance cost is low, and the wearing parts are made of highly wear-resistant materials.

The structure of the impact crusher for sale

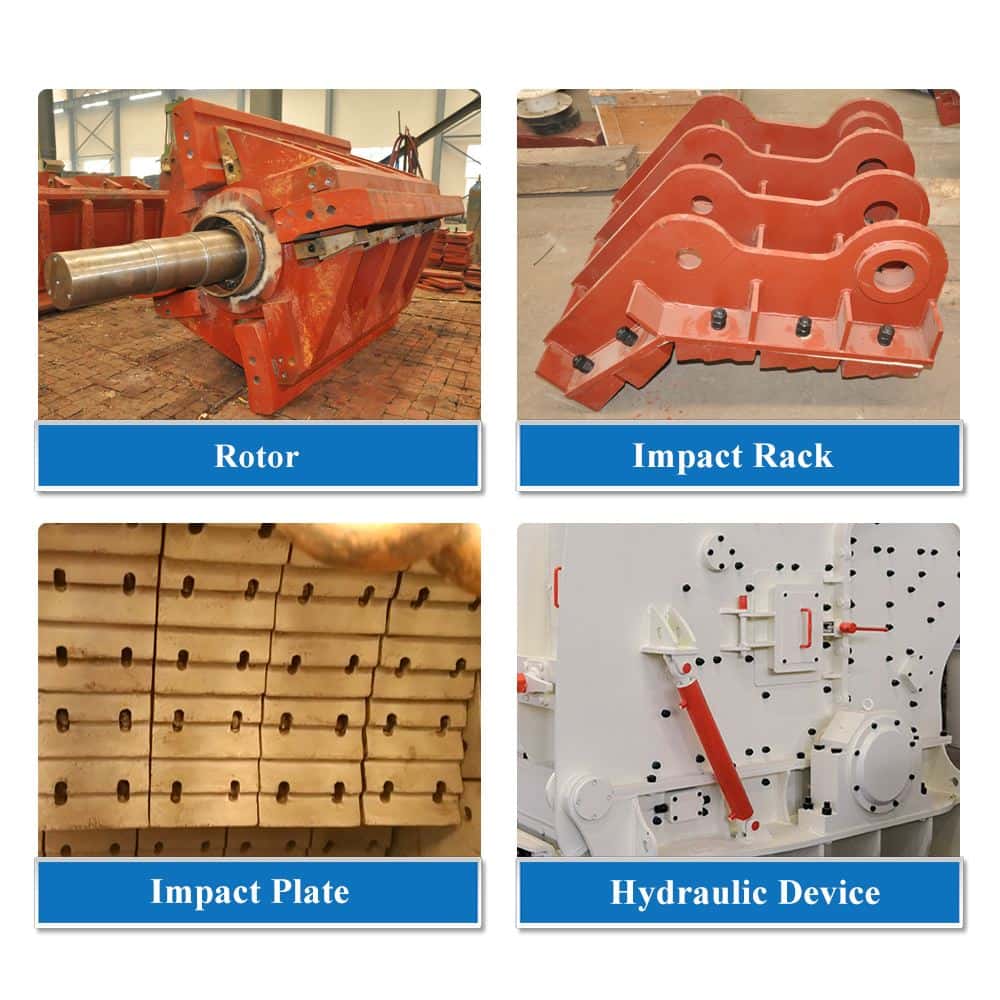

The impact crusher equipment is mainly composed of spring, main shaft, plate hammer, compression block, impact liner, rotor, and so on.

Packaging and shipping

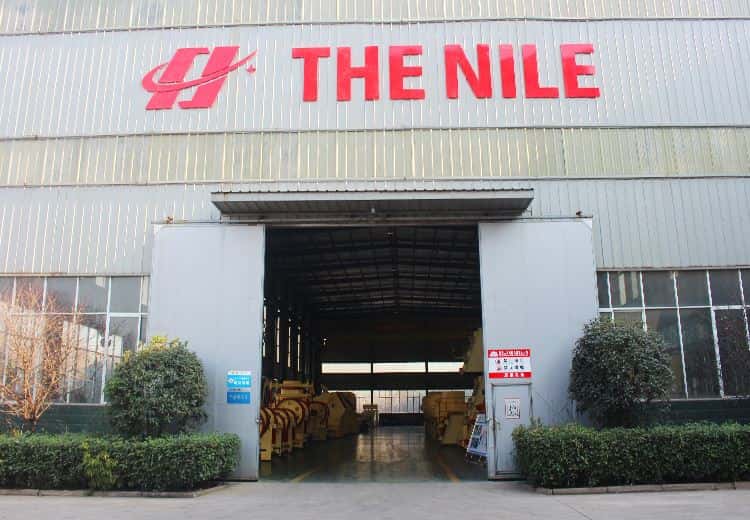

Company strength

The Nile Machinery Equipment Co., Ltd. is a metallurgical machinery professional machinery factory that specializes in mining equipment research and development, manufacturing, sales, and provides professional mining processing plant workflow design, plant installation, equipment maintenance, and mineral processing technical guidance services. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Uganda, Mozambique, South America, the Middle East, and many other countries and regions. At present, we have established our own overseas warehouses in Sudan and Kenya, and we also have our offices in most parts of Africa. You can observe the machinery up close and buy directly, saving transportation costs and time.

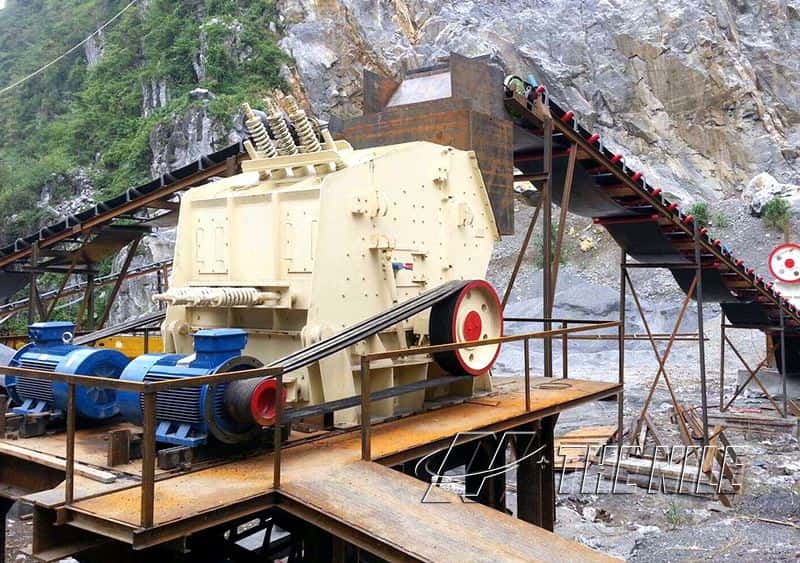

Project cases:

Case: Limestone crushed stone production line with an hourly output of 600 tons

Material: Limestone

Output: 600 t/h

Configuration equipment: vibrating feeder, jaw crusher, impact crusher, high-efficiency fine crusher, vibrating screen, etc.

Detail display: Recently, a mine owner from Sudan contacted the Nile for a configuration list of the 600 t/h limestone crushing production line. After understanding the customer’s needs, our technicians immediately checked the location and weather conditions of the customer’s production site. The specific conditions of the stone materials were investigated and understood in detail, and a reasonable and efficient limestone crushing production line was designed for customers. In the end, we equipped our customers with vibrating feeders, jaw crushers, impact crushers, high-efficiency fine crushers, vibrating screens, etc. Achieved the results expected by customers.
