Shaft Impact Crusher

Processing Materials: Shaft impact crusher can crush various ores, rocks such as granite, concrete, limestone, and other medium-hard materials with particle size less than 120-500mm and compressive strength not exceeding 320pa. It's mainly used in mining, cement, chemical, railway, energy, highway, construction, all kinds of ore crushing and can be used as two-stage crushing equipment.

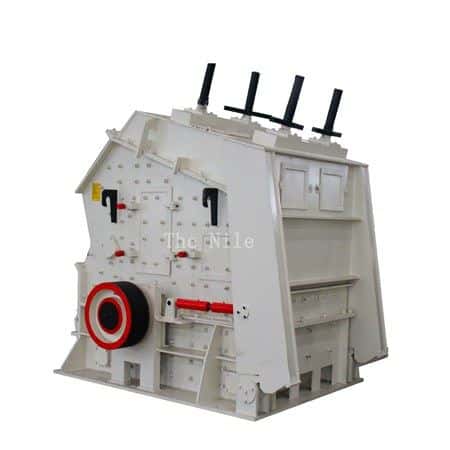

Shaft Impact Crusher

Technical Parameters

Model

Rotor Size
(mm)

Feed Openning Size
(mm)

Max. Feeding Size
(mm)

Output Size
(mm)

Capacity
(t)

Motor Power
(kw)

PF-0607

644*740

320*770

100

5-60

10-20

30

PF-0807

850*700

400*730

300

5-60

15-30

30-45

PF-1008

1000*800

400*830

300

5-60

30-50

37-55

PF-1010

1000*1050

400*1080

350

5-60

50-80

55-75

PF-1210

1250*1050

400*1080

350

5-60

70-120

110-132

PF-1212

1250*1250

400*1300

350

5-60

100-120

132-160

PF-1214

1250*1400

400*1430

400

5-60

130-180

160-200

PF-1315

1320*1500

680*1520

400

5-60

160-250

180-260

PF-1320

1320*2000

680*2030





Working Principle

Under the drive of the motor, the rotorof the shaft impact crusher rotates at a high speed when working. When the material enters the plate hammer action area, it collides with the plate hammer on the rotor and is crushed again. Then, it is thrown to the impact device and is broken again. Finally, it bounces back from the impact liner to the plate hammer action area for recrushing. The above process is repeated, and the material enters the first, second, and third impact chambers from large to small for repeated crushed until the stone material is crushed to the required particle size and discharged from the discharge port.

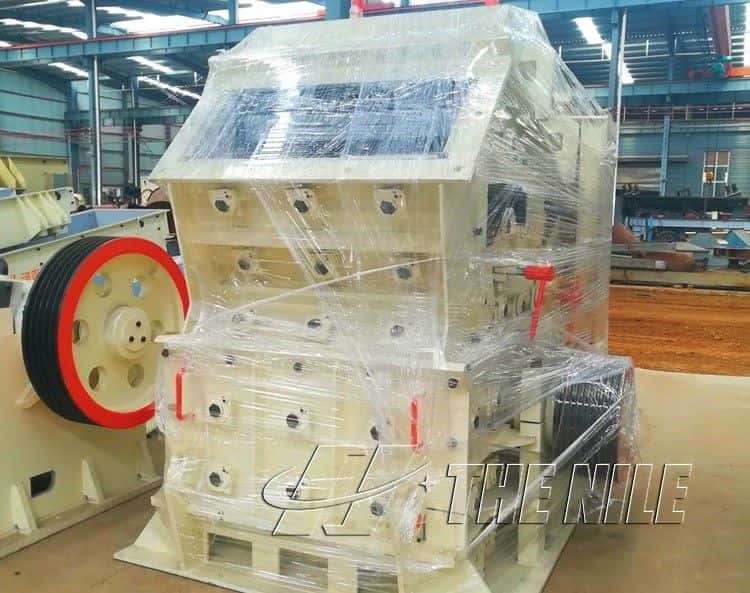

Shaft Impact Crusher ready to ship

Product Advantages

1.The structure of the whole shaftimpact crusher is simple and reasonable, and the maintenance is convenient.

2.The structure is compact, the rigidity of the machine is strong, and the rotor has a large moment of inertia.

3.It adopts the Keyless connection, which is convenient maintenance, economic, and reliable.

4.It has the advantages of a complete crushing function, high productivity, small wear of machine parts, and high comprehensive benefit.

Related Products

Technical Parameters of Shaft Impact Crusher

Model

Rotor Size
(mm)

Feed Opening Size
(mm)

Max. Feeding Size
(mm)

Output Size
(mm)

Capacity
(t)

Motor Power
(kw)

PF-0607

644*740

320*770

100

5-60

10-20

30

PF-0807

850*700

400*730

300

5-60

15-30

30-45

PF-1008

1000*800

400*830

300

5-60

30-50

37-55

PF-1010

1000*1050

400*1080

350

5-60

50-80

55-75

PF-1210

1250*1050

400*1080

350

5-60

70-120

110-132

PF-1212

1250*1250

400*1300

350

5-60

100-120

132-160

PF-1214

1250*1400

400*1430

400

5-60

130-180

160-200

PF-1315

1320*1500

680*1520

400

5-60

160-250

180-260

PF-1320

1320*2000

680*2030
