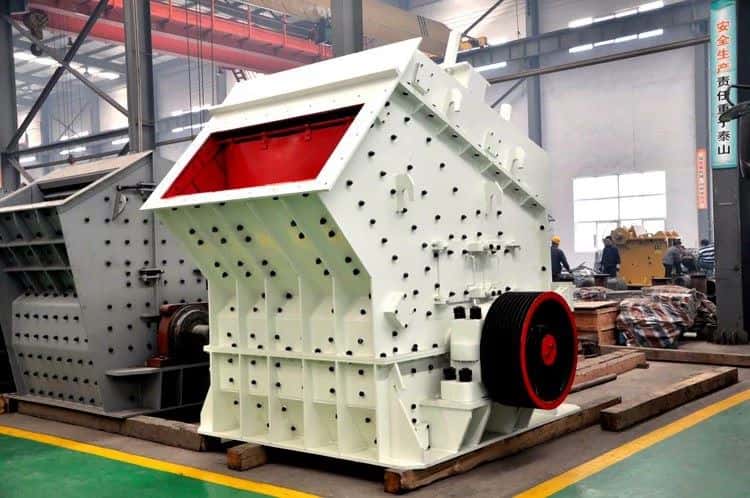

Impact Crushing Plant

Technical Parameters

Working Principle

The impact crushing plant is used to crush stone materials by impact energy. When the stone material enters the action area of the plate hammer, it collides with the plate hammer on the high-speed rotating rotor, and then it is thrown to the impact device for crushing and bounced back to the action area of the plate hammer for re-crushing. This process is repeated until the stone material is crushed to the required particle size and discharged from the discharge port. The size and shape of the discharge material can be changed by adjusting the gap between the impact frame and the rotor.

Advantages of Impact Crushing Plant

1.Large block size and less product stone powder. Impact crusher has a large inlet, high crushing cavity, high hardness of materials, large block size, less product stone powder, and less pollution.

2.Low mechanical wear and high overall efficiency. The impact crusher has full crushing functions and high productivity, low mechanical wear, high overall efficiency, and high output.

3.There are many levels of output granularity, which is economical and reliable. Adjust the gap between the hammers and produce various granular aggregate materials. The stone impact crusher has strong rigidity, the rotor has a large rotational inertia, and the impact force is large.

4. Long service life of accessories. Impact crusher has low crushing power consumption, adjustable installation of hammer shaft, and long service life of hammerhead.
