Processing Materials: PF 1210 Impact crusher is used for medium and fine crushing of various medium hardness ores, such as limestone, quicklime, clinker, slag, broken glass, calcium salt, coarse ore, building materials, coke, coal, etc. Applied Filed: PF 1210 Impact crusher can be used in mineral processing, chemical, cement, construction, refractory materials, ceramics, glass, and other industries.

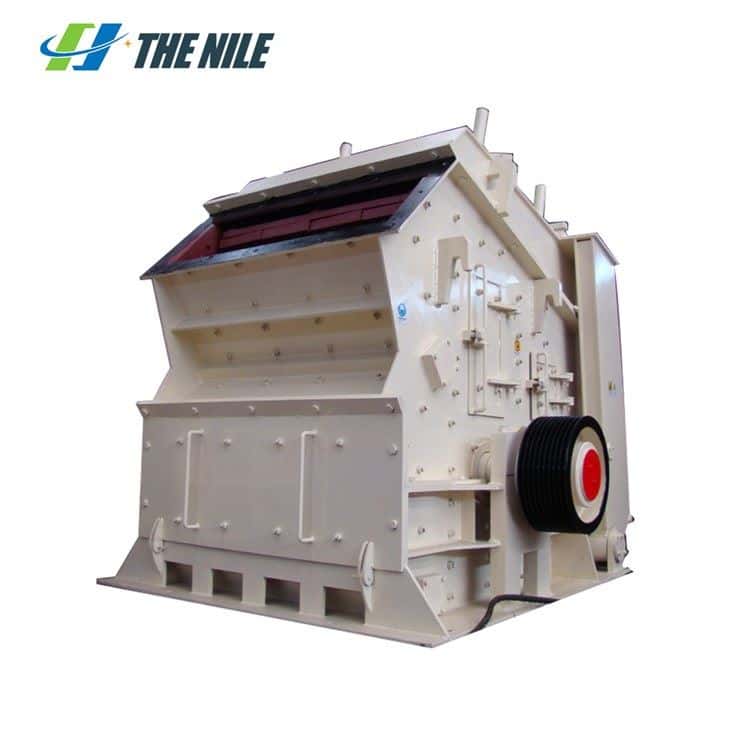

Technical Specifications of PF 1210 Impact Crusher
The rotor diameter is 1250mm, the rotor length is 1050 mm, the maximum feeding size is 350mm, the production capacity is 70-120t / h, the rotor speed is 508r / min, the motor power is 110KW, and the overall dimension (length x width x height) of PF 1210 impact crusher is 2945x3028x2809mm.
Performance Characteristicsof PF 1210 Impact Crusher
Pf 1210 impact crusher is a new type of high-efficiency crusher. It has the advantages of simple structure, large crushing ratio, lightweight, low energy consumption, high output, and cube-shaped crushing products. Because the process of Pf 1210 impact crusher uses the method of impact crushing, it has the characteristics of selective crushing. If it is used in the ore beneficiation industry, the ore is easy to decompose, and the concentrate is easy to be selected.
Model | Rotor Size | Feed Openning Size | Max. Feeding Size | Output Size | Capacity | Motor Power |
PF-0607 | 644*740 | 320*770 | 100 | 5-60 | 10-20 | 30 |
PF-0807 | 850*700 | 400*730 | 300 | 5-60 | 15-30 | 30-45 |
PF-1008 | 1000*800 | 400*830 | 300 | 5-60 | 30-50 | 37-55 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 5-60 | 50-80 | 55-75 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 5-60 | 70-120 | 110-132 |
PF-1212 | 1250*1250 | 400*1300 | 350 | 5-60 | 100-120 | 132-160 |
PF-1214 | 1250*1400 | 400*1430 | 400 | 5-60 | 130-180 | 160-200 |
PF-1315 | 1320*1500 | 680*1520 | 400 | 5-60 | 160-250 | 180-260 |
PF-1320 | 1320*2000 | 680*2030 | 400 | 5-60 | 300-350 | 300-375 |
