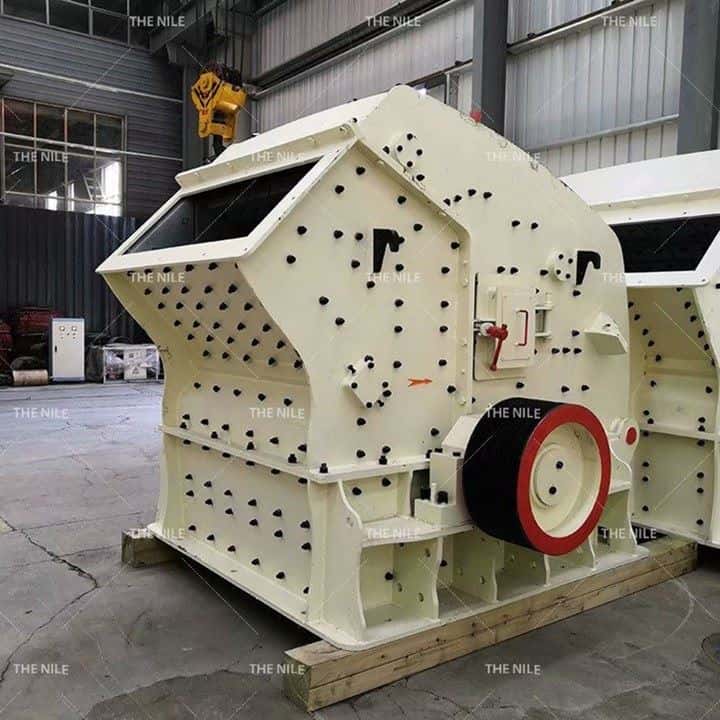

Production Introduction: The size of the pf 1214 impact crusher is Φ 1250 × 1400mm, the overall dimension is 2650 × 2460 × 2800mm, the feed inlet size is 400×1430mm, the maximum feed size is 350mm, the configured motor power is 132kw, and its production capacity can reach 100-180t/ h. The total weight of the pf1214 impact crusher is about 22.4t.
Features of PF 1214 Impact Crusher
1.Large crushing ratio, which up to 60 or more.
2.Light weight and small size.
3.The broken stone is cubic, with beautiful grain shape, high quality, and uniform particle size.
4.Low noise and zero dust when the operation.
Components of PF 1214 Impact Crusher
The wear parts of PF 1214 impact crusher mainly include plate hammer, side guard plate, impact lining plate, square steel, compression block, etc. The parts are cast by high manganese steel, high chromium, high manganese composite, and other wear-resistant materials.
1.Plate hammer: the plate hammer of PF 1214 impact crusher is made of a high chromium alloy, no tension, and cracks, and has a very good shape. It is a reliable high wear-resistant casting. When the plate hammer of PF 1214 impact crusher is worn to a certain extent, it should be adjusted or replaced immediately to prevent the damage of fasteners and other parts.
2.Impact lining plate: the impact lining plate of PF 1214 impact crusher machine is usually welded by steel plate, and its impact surface is equipped with wear-resistant lining plate, but it can also be combined with impact roller or rate strip. There are some problems in the impact surface with grate seams, such as messy structure, difficult replacement of the impact surface after wear, and serious wear.
3.Square steel: square steel of PF 1214 stone impact crusher is square, can be divided into the seam and seamless. Slotted square steel is made of square steel pipe by welding steel plates together. Seamless square steel is made from seamless steel pipes, and its compression resistance is much higher than that of seamed square pipes.
4.Compression block: The compression block of PF 1214 impact crusher is widely used in all kinds of mining machines. It has excellent raw materials and stable function and can be produced according to different requirements. After the load test operation, the pressing block shall be adjusted as necessary.
