Impact Crusher Machine

Processing Materials: Impact crusher machine is used for crushing limestone, coal ash, kaolin, calcium carbonate, gangue, gypsum, grain slag, superfine slag powder, coal dust, bentonite, barite, marble, etc. Applied Field: Impact crusher machine is applied in many industries, such as cement, silicate product, refractory material, chemical fertilizer, nonferrous and ferrous metal beneficiation, and glass-ceramic industries.

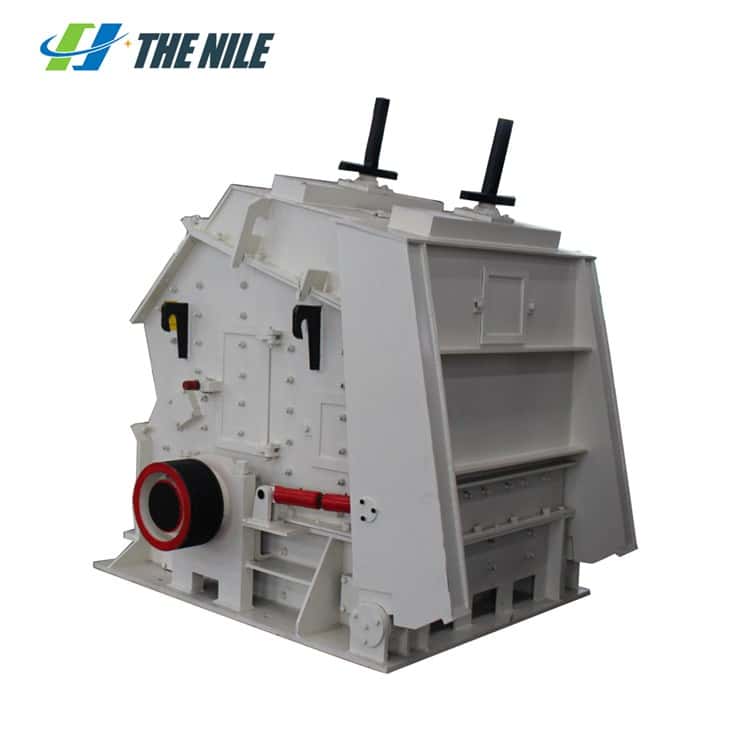

Impact Crusher Machine

Introduction of Impact Crusher Machine

Nile impact crusher machine is a new type of crusher developed on the basis of foreign technology and the latest processing technology. Compared with ordinary impact crusher, it has the following advantages.

1.Hydraulic jacking device and maintenance lifting design are adopted to reduce downtime, maintenance time, and cost of impact crusher machine.

2. The automatic hydraulic regulator is used between the rotor and the impact plateof impact crusher machine.

3. The heavy-duty rotor welded with a high-quality steel plate makes impact crusher machine have a greater moment of inertia. That means the impact crusher machine has a stronger crushing force and higher efficiency at the same speed.

4. The bearing with the larger specification is adopted to enhance the bearing capacity of impact crusher machine.

5. The bearing seat of impact crusher machine is made of integrally forged steel, which can perfectly match the crusher frame and increase the radial force of the bearing seat. Excellent waterproof and dustproof effect can also protect the bearing of stone impact crusher.

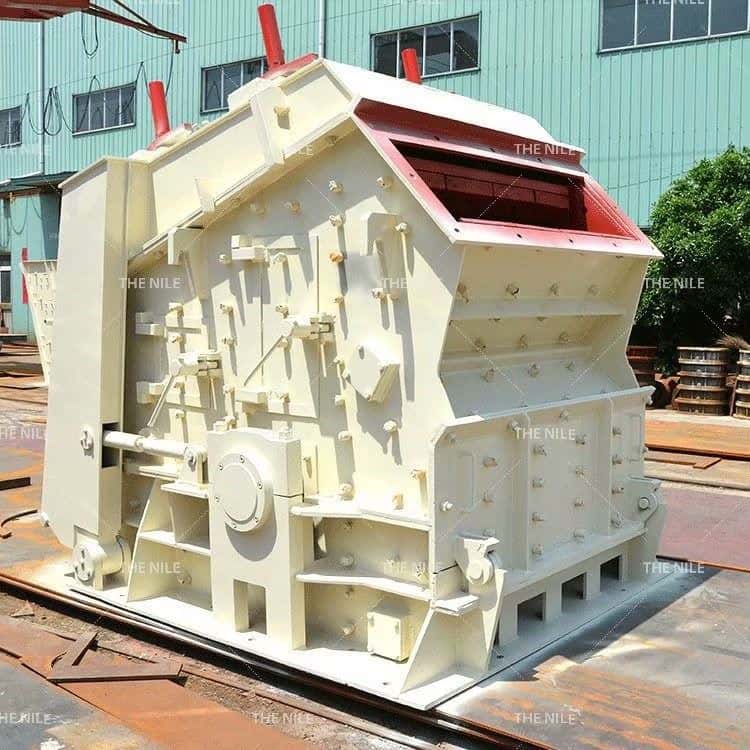

Impact Crusher Machine

Operation Procedures of Impact Crusher Machine

1.Before starting the operation of impact crusher machine, all lubricating points must be checked to see if there is enough grease, the connecting bolts must be tightened, all doors must be tightly sealed, and if the clearance between the rotor plate hammer and the impact plate is appropriate.

2.After starting the motor, it is necessary to wait for the stone impact crusher to run normally before starting the uniform feeding.

3.Feeding must be stopped before stopping the operation of impact crusher machine, and the motor can be stopped after all the materials in the crushing cavity are exhausted.

4. The wear condition of the plate hammer of impact crusher machine should be checked frequently and replaced in time to avoid the wear of the rotor body. After the plate hammer is replaced, the static balance verification must be performed.

Related Products

Model

Rotor Size
(mm)

Feed Openning Size
(mm)

Max. Feeding Size
(mm)

Output Size
(mm)

Capacity
(t)

Motor Power
(kw)

PF-0607

644*740

320*770

100

5-60

10-20

30

PF-0807

850*700

400*730

300

5-60

15-30

30-45

PF-1008

1000*800

400*830

300

5-60

30-50

37-55

PF-1010

1000*1050

400*1080

350

5-60

50-80

55-75

PF-1210

1250*1050

400*1080

350

5-60

70-120

110-132

PF-1212

1250*1250

400*1300

350

5-60

100-120

132-160

PF-1214

1250*1400

400*1430

400

5-60

130-180

160-200

PF-1315

1320*1500

680*1520

400

5-60

160-250

180-260

PF-1320

1320*2000

680*2030

400

5-60

300-350

300-375
