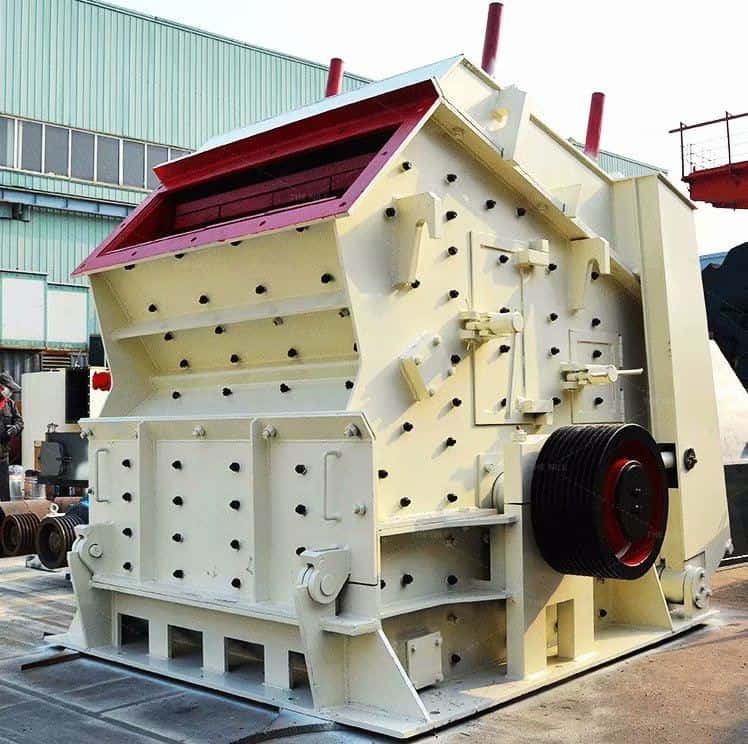

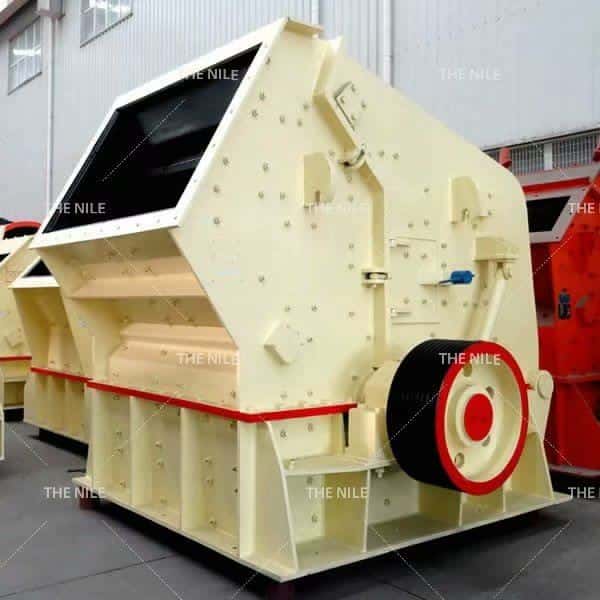

PF 1010 Series Impact Crusher

Product Description of PF 1010 Series Impact Crusher

The rotor diameter of pf 1010 series impact crusher is 1000mm, the rotor length is 1050mm, the main shaft speed is 500 rpm, the maximum feeding size is 250 mm, the output size is less than 60 mm, the production capacity is 40 tons/hour, the motor power is 55kw, the motor speed is 700 rpm, the overall dimensions is 2388X1922X2518 mm, and the weight 11650 kg.Pf 1010 series impact crusher is suitable for the materials with the moisture content below 10%, without blocking and shutdown accidents. Pf 1010 series impact crusher machine can be adjusted appropriately in a certain range to meet according to the size of the product required by the industry.

Advantages of PF 1010 Series Impact Crusher

1.Pf 1010 series impact crusher has a large feed port, high crushing cavity, high hardness, and large block size materials, and less stone powder.

2.The gap between the impact board and the plate hammer of pf 1010 series impact crusher can be easily adjusted, and the discharge particle shape is good and size can be effectively controlled.

3.Pf 1010 series impact crusherhas a high chromium plate hammer,resistance impactand wear,and large impact force.

4.Pf 1010 series impact crusher has a three-chamber crushing area,high-efficiency wear-resistant plate hammer, unique tooth shape impact lining plate, and high crushing efficiency. And the rotor body of the pf 1010 series impact crusher plant is connected by a keyless taper sleeve.
