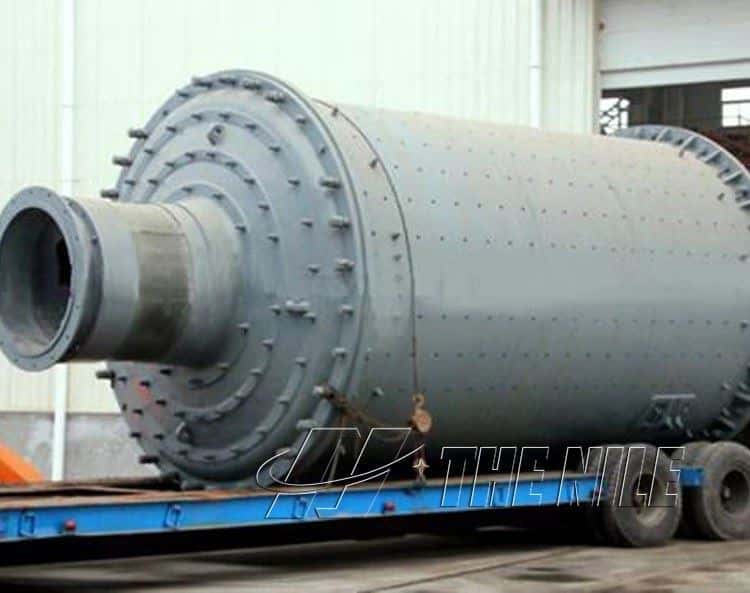

Applied Field: Rod mill mining equipment is a kind of grinding mill with the steel rods loaded in the cylinder. Rod mill mining equipment is generally of wet overflow type, which can be used as primary open circuit grinding in the artificial stone sand, mineral processing plants, and electric power departments of chemical plants.
Type of Rod Mill Mining Equipment
There are three kinds of rod mill mining equipment: 1. Overflow type rod mill, 2. End peripheral discharge rod mill, 3. Center peripheral discharge rod mill. Rod mills are available in two forms, dry and wet rod mill mining equipment. Users can choose according to their actual situation.
Working Principle of Rod Mill Mining Equipment
The cylinder of rod mill mining equipment is driven to rotate by the motor through the reducer and the surrounding big gear or by the low-speed synchronous motor directly through the peripheral large gear. The suitable grinding medium steel rods are installed in the cylinder.
Under the action of centrifugal force and friction force, the grinding medium of rod mill mining equipment is lifted to a certain height and falls in the state of throwing or discharging. The grinded material continuously enters the inner part of the cylinder through the feeding port of rod mill mining equipment. The final product is crushed by the moving grinding medium and discharged from the rod mill through the overflow and continuous feeding force, so as to carry out the next process operation.
Technical Parameters ofRod Mill Mining Equipment
Model | Feeding size | Output size | Capacity | Motor power | Weight |
900*1200 | 30 | 0-5 | 2-6 | 18.5 | 4000 |
1200*2400 | 5-15 | 30 | 11500 | ||
1500*3000 | 10-25 | 75 | 17000 | ||
1830*3000 | 18-45 | 130 | 26000 | ||
2100*3000 | 20-52 | 180 | 44000 | ||
2100*3600 | 30-70 | 210 | 46000 | ||
2400*3000 | 35-82 | 245 | 59000 | ||
2700*3600 | 50-125 | 380 | 82000 |
