Rod Mill

Technical Parameters

Main Structure of Rod Mill

The rod mill is mainly composed of motor, main reducer, transmission part, cylinder part, main bearing, slow transmission part, feeding part, discharging part, annular seal, thin oil lubrication station, spray lubrication of large and small gears, foundation part, etc. The main reducer of the rod mill has a parallel shaft and hard tooth surface.

Working Principle of Rod Mill

When the rod mill working, the materials are fed into the hollow cylinder for grinding through the hollow shaft. There are different diameters of grinding media installed in the cylinder. Rotation of the horizontal cylinder generates centrifugal forces that elevate the long steel rods to a certain height where they fall back and grind the materials.

Advantages of Rod Mill

1. Compared with the sliding bearing bracket, the rod mill can save 10 energy and increase the production capacity by 20%.

2. The Rod mill can use a high voltage motor.

3. Adopts large gear oil mist lubrication and low-speed drive device.

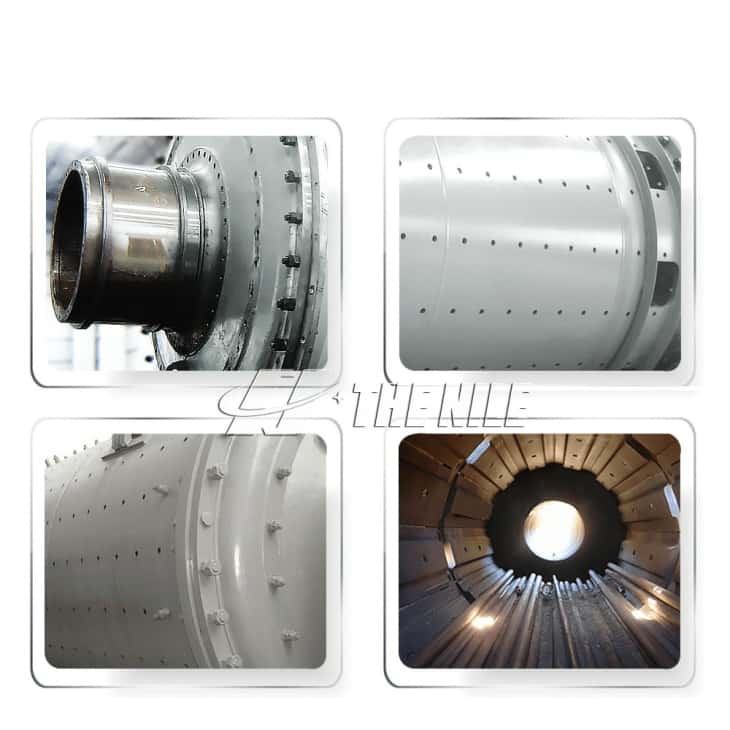

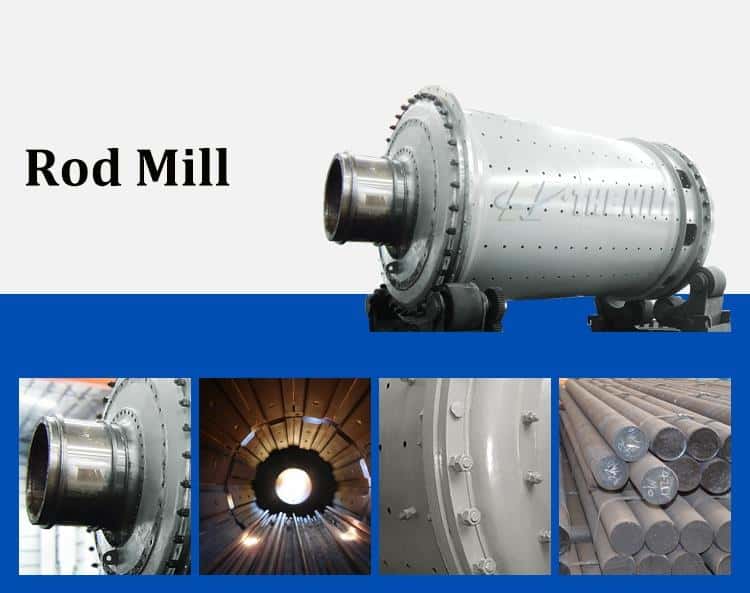

Details

Alloy steel frame, 35alloy steel rod, antirust paint, make sure the quality of the machine is good and beautiful in appearance.

FAQ

Q1: If you can help to make the flowchart?

A: Yes, sure. We've will make the flowchart design according to each client's mineral situation, totally for FREE!Moreover, our engineer can go abroad to guide the installation.

Q2: Service and Payment Terms?

A: We can accept T/T and L/C, 30% deposit, and 70% balance before delivery, which is international trade practice. Finished product pictures will provide to customers before delivery.

Q3: Hi, do you have an overseas factory?

A: Yes, we already have warehouses and stock in Kenya, Sudan, agents in Tanzania, Zambia, etc.
