Applied Field: Raymond mill grinder machine is mainly used for grinding dolomite, limestone, potash feldspar, barite, talc, diabase, quartzite, bentonite, gypsum, etc. It's widely applied in power plant, construction and ore industries.

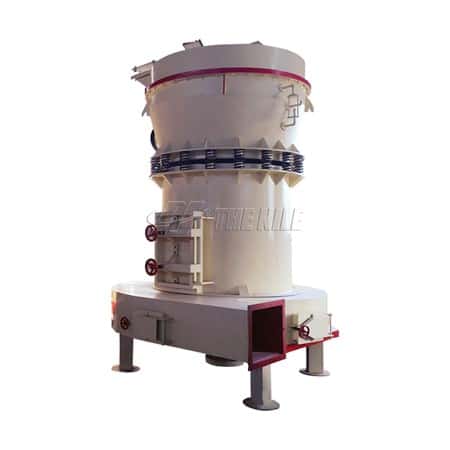

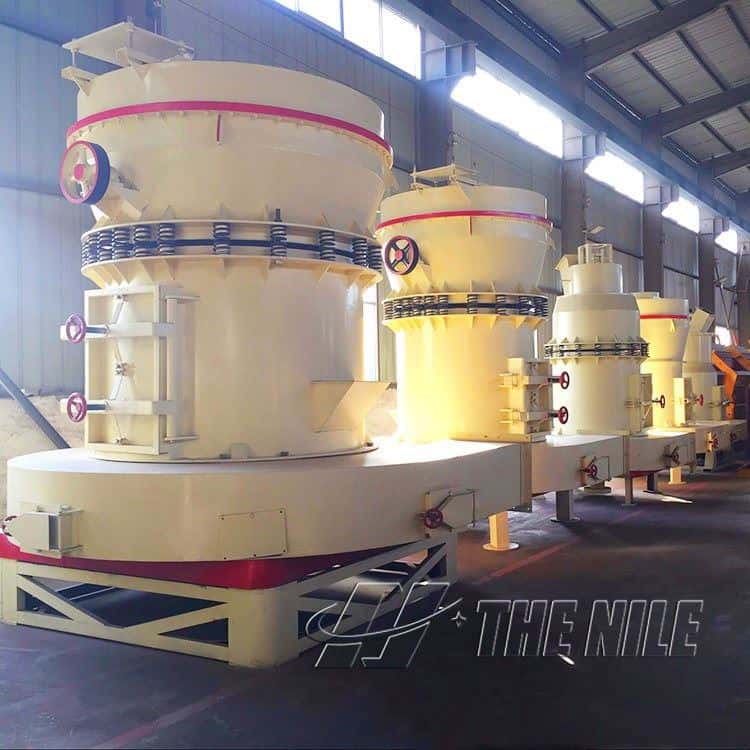

Introduction of Raymond Mill Grinder Machine
Raymond mill grinder machine, also known as Raymond mill, Raymond machine, pulverizer, etc., is one of the essential equipment for non-metallic ore grinding in the powder industry. The Raymond mill grinder machine produced by Nile Machinery adopts the advanced structure of similar products at home and abroad and is updated and improved on the basis of the traditional Raymond mill. The equipment has higher efficiency, lower power consumption, smaller floor area, and less one-time investment than ball mill.
Working Principle of Raymond Mill Grinder Machine
When the Raymond mill grinder machine is working, the materials to be ground are added into the machine from the feeding hopper on the side of the cover, and it revolves around the vertical axis by means of the grinding roller device suspended on the plum blossom frame of the main machine and rotates itself. Due to the centrifugal force during rotation, the grinding roller swings outward and presses tightly on the grinding ring, so that the material is shoveled by the shovel and sent to the grinding roller and the grinding ring, which is achieved the purpose of crushing materials by rolling and rolling of the grinding roller.
Characteristics of Raymond Mill Grinder Machine
1.Convenient transportation and installation
With the unique structural design, it occupies a smaller space and is more convenient for transportation, installation, operation, and maintenance.
2.High efficiency and less pollution
The Raymond mill grinder machine produced by Nile Machinery Company adopts PLC electrical automation control, which can effectively reduce the failure rate and labor cost of the equipment, realize high production and efficiency production, and achieve a good production environment with low noise and less pollution.
3.Fineness can be adjusted arbitrarily
The fineness of grinding powder can be adjusted between 80-800 mesh, which is more flexible and extensive. Raymond mill grinder machine is the best choice for non-metallic mineral grinding.
4.Long parts replacement cycle
The replacement period of grinding roller and ring is longer, which eliminates the defect of short replacement cycle of vulnerable parts of the centrifugal mill.
Technical Parameters of Raymond Mill Grinder Machine
Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
