Applied Field: Raymond milling machine is mainly used for grinding bauxite, calcite, active lime (quicklime), graphite, kaolin, etc. It's widely applied in mineral, chemical, building powder processing industries.
Introduction of Raymond Milling Machine

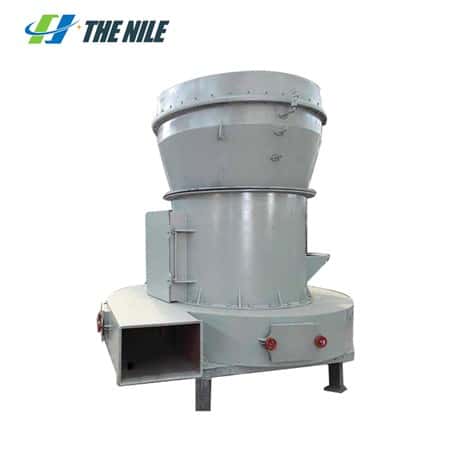

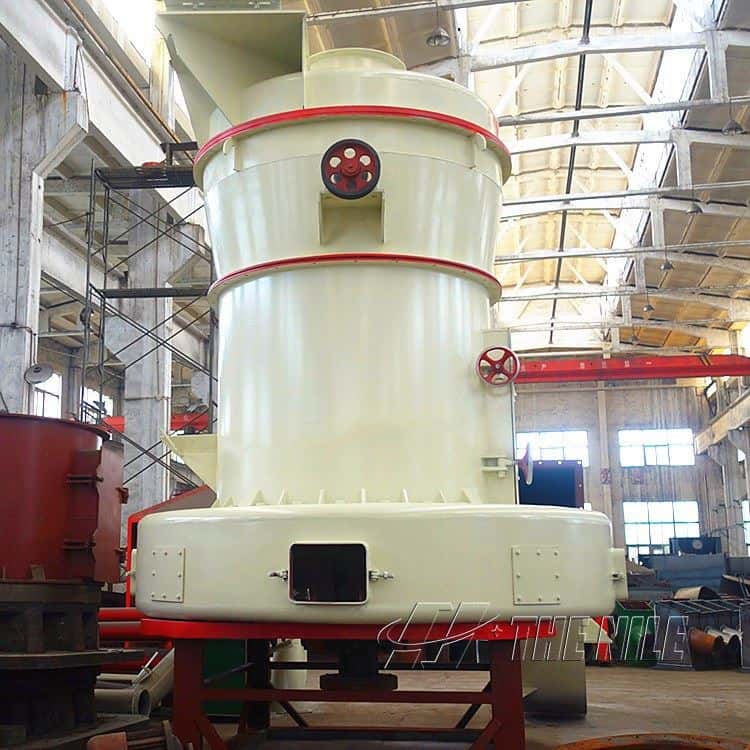

Raymond milling machine is a kind of pulverizing mill, which looks like a steel container standing upright, with an air inlet and outlet, and a feed inlet in the middle. According to the requirements of different materials, fineness, and output, it is divided into three series of more than ten types of high-pressure mill, high-strength mill, and ordinary Raymond mill. Raymond milling machine is mainly composed of main engine, reducer, analyzer, pipeline device, blower, dust collector, jaw crusher, bucket elevator, electromagnetic vibration feeder, electric control system, etc. The equipment has a strong complete set, which forms an independent production system from 200 mm block material to finished powder.
Performance Advantages of Raymond Milling Machine
1.Wide application range and high value
Raymond milling machine is suitable for non-metallic ore. Compared with other equipment for grinding metal ores, it has a finer finished particle size.
2. Reasonable design and small floor space
It has a reasonable structure design, a small floor area, and can independently complete a production system.
3.Energy saving, environmental protection, and stable operation
It has the advantages of environmental protection, simple operation, high grinding efficiency, low energy consumption, convenient maintenance, and stable operation, which can meet the needs of customers.
Technical Parameters of Raymond Milling Machine
Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
