The particle size of the finished product of the R series Raymond grinding mill machine can be adjusted arbitrarily within the range of 40-400 mesh. It has many advantages such as mature and stable equipment, high work efficiency, and large output.
Product description:

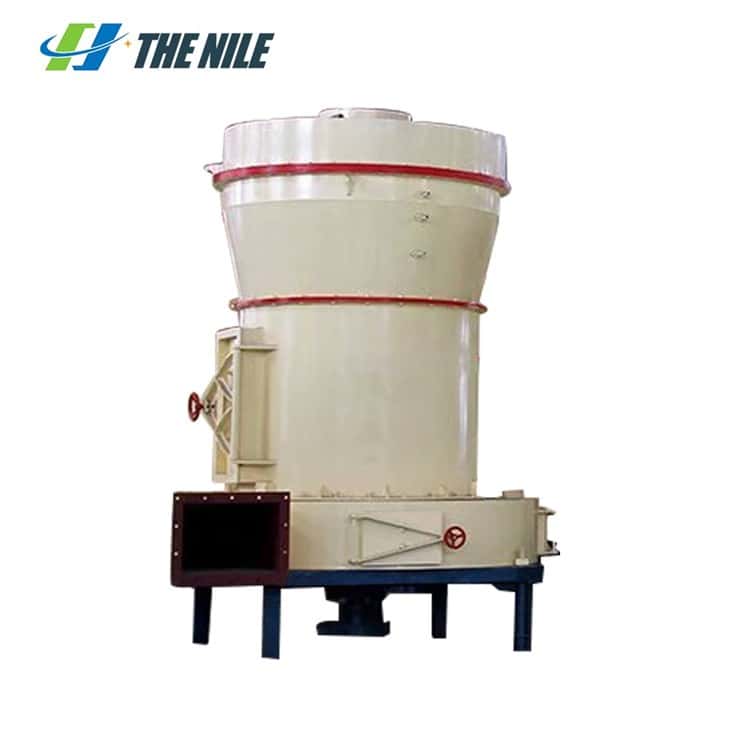

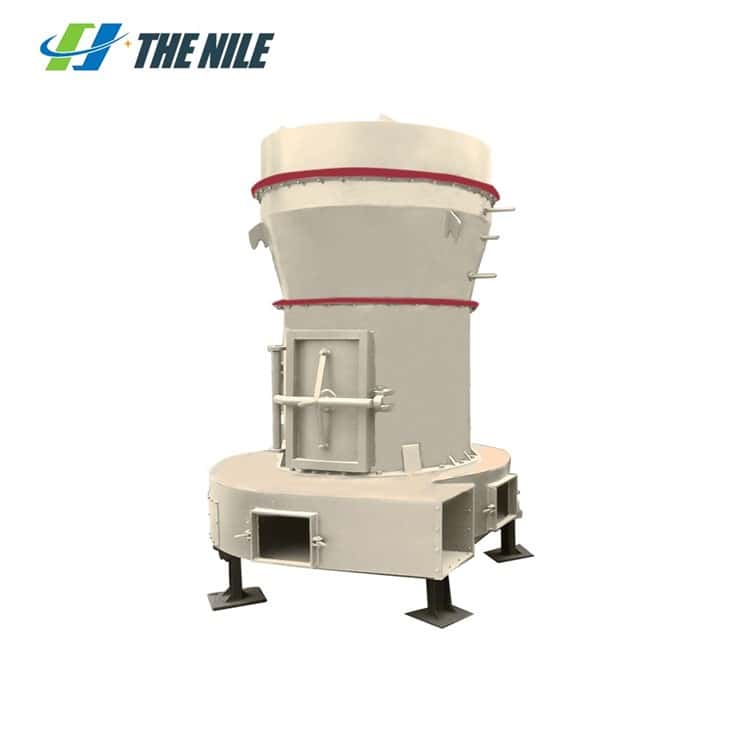

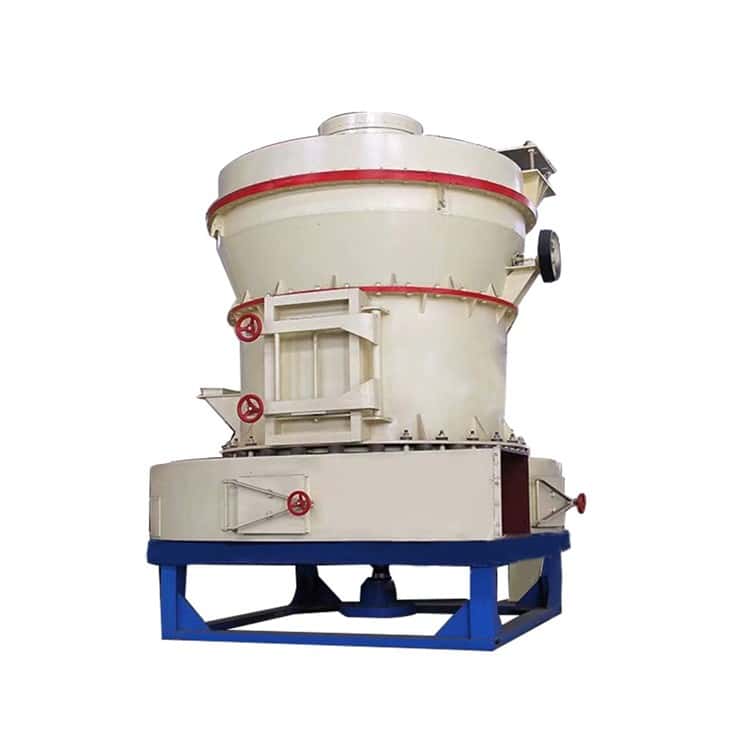

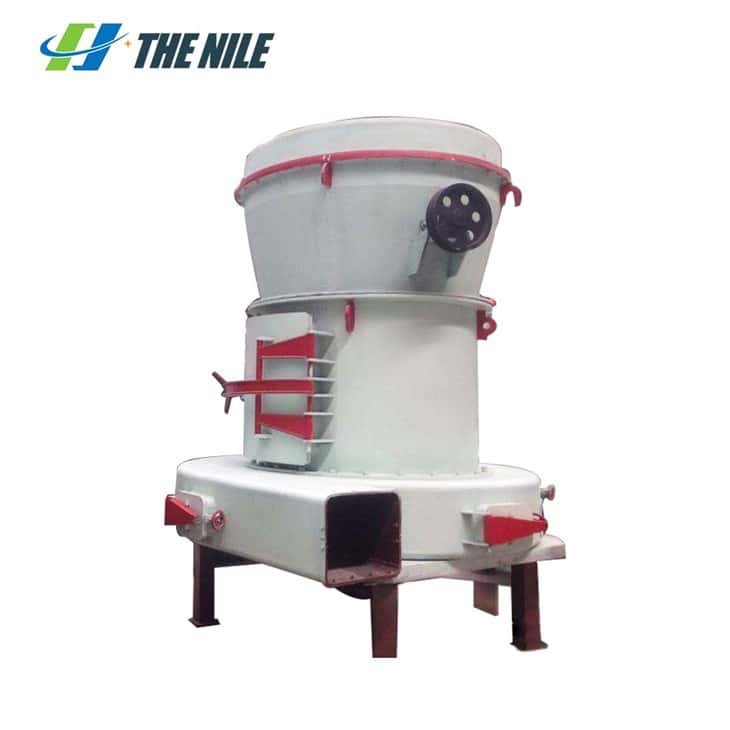

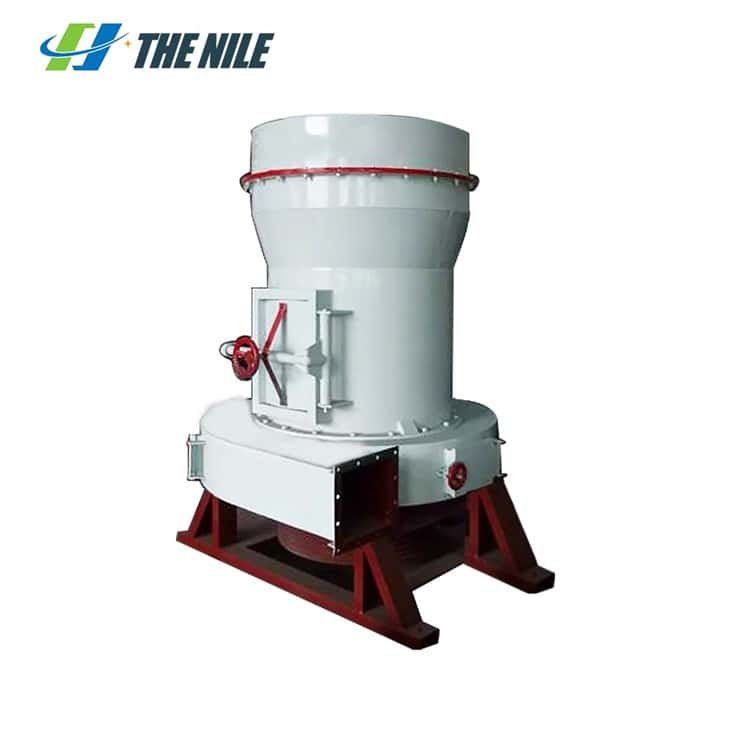

Raymond mill, also known as Raymond grinding mill machine, is a commonly used milling equipment in the powder industry. The equipment has a long service life, high work efficiency, and convenient transportation. At present, the equipment has been sold in most parts of Africa and is deeply loved by African customers.
Features of Raymond Mill machine for sale:
1. Convenient transportation

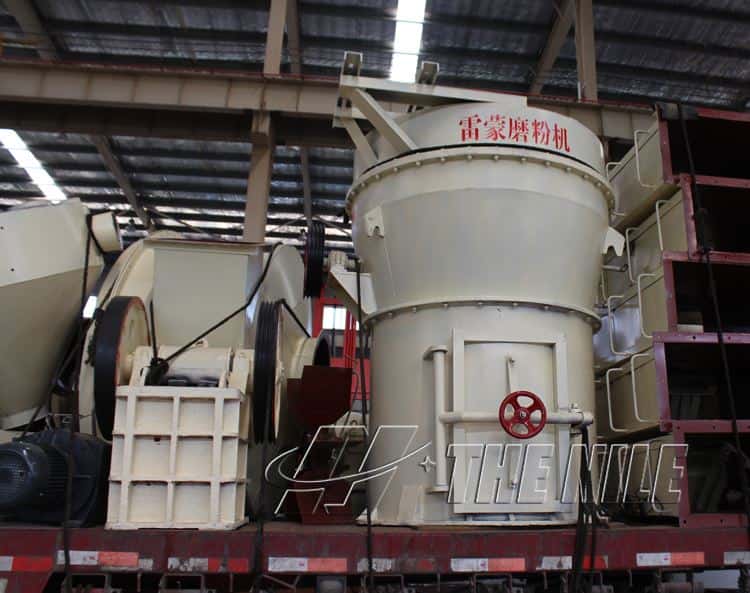

The Raymond grinding mill machine has a small footprint and is convenient to transport. The user can change the working place of the machine at any time, which is convenient and quick.
2. Long service life
The grinding roller has strong wear resistance, the parts are not easy to be damaged, and the replacement cycle of the wearing parts is long.
3. High work efficiency and large capacity
Raymond mill grinder equipment adopts an automatic control system, which does not require excessive operations by operators. The machine is not easy to malfunction and the machine has low noise and pollution during the working process.
4. Flexible and convenient
The fineness of the Raymond powder mill can be adjusted between 40-400 at will to meet the needs of users.
Components of Raymond Mill：
Raymond mill grinding machine is mainly composed of main machine, pipeline device, analysis machine, finished cyclone separator, blower, motor, and so on. The main engine is composed of a frame, an air inlet volute, a blade, a grinding roller, a grinding ring, a cover, and a motor. Auxiliary equipment includes jaw crusher, bucket elevator, electromagnetic vibrating feeder, electric control cabinet, etc. Users can choose flexibly according to site conditions.
Maintenance：
1. The operator must operate strictly in accordance with the machine instruction manual, and regularly check the wear of Raymond grinding parts.
2. The grinding roller device of the Raymond mill machinery needs to be replaced with a new grinding roller and clean the rolling bearings in the roller sleeve for more than 500 hours.
3. After the Raymond mill equipment has been used for a period of time, check and replace the wearing parts such as the grinding roller, grinding ring, blade, etc., and carefully check whether the bolts and nuts are loose before and after the use of the grinding roller device and whether the lubricating oil is adequately added.
Overseas service:
1. We have engineers in Kenya, Sudan, and Uganda, they will provide professional installation and training skills.
2. We have factories and warehouses in Kenya and China. When your wearing parts are damaged, you can go directly to the factory to buy them, which is convenient and quick.
3. Our products have been distributed all over China and exported to Europe, America, Asia, and African countries. Our sales managers and engineers know the local situation very well, and we will provide you with the most suitable solution.
| Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
| (mm) | (mm) | (mm) | (T) | (kW) | (t) | ||
| 3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
| 3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
| 3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
| 3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
| 3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
| 4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
| 4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
| 5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
