Applied Field: Stone powder process plant is mainly used for grinding the medium hardness non-metallic materials, such as quartz, feldspar, coal, calcite, limestone, dolomite, graphite, etc. Stone powder process plant is widely applied in building materials, chemical industry, mining industry, medical and construction industry etc.
Solution Advantages of Stone Powder Process Plant
1.Various crushers can be selected according to the raw material specifications.
2.The working configuration of crushing first and then grinding can speed up the working efficiency of the stone powder process plant production line and improve the discharge efficiency.
3. Crushing the material into small particles before grinding can reduce the wear of the stone powder process plant and prolong the service life of the whole equipment.
Configuration and Process of Stone Powder Process Plant

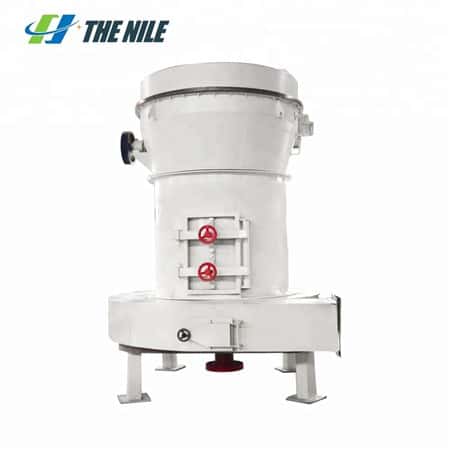

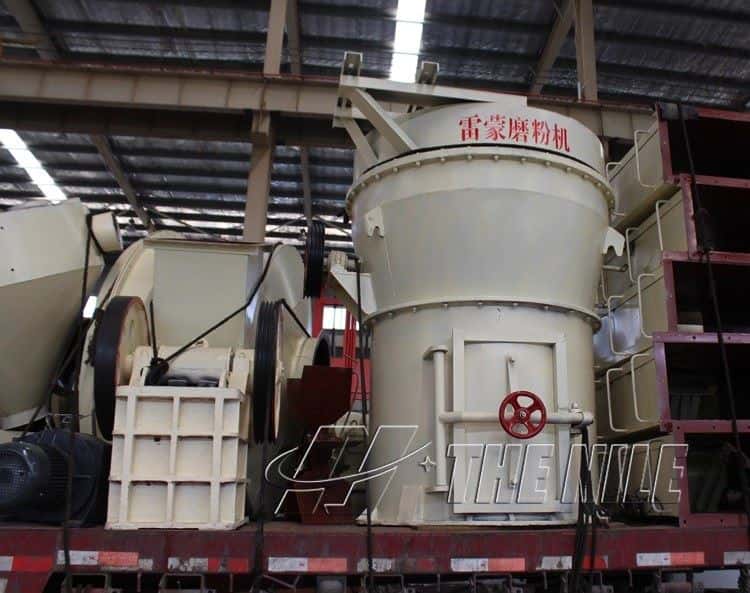

Stone powder process plant is roughly divided into several important stages, such as crushing, grinding and collecting, among which grinding is the main stage. Stone powder process plant is mainly composed of Raymond mill (host part), analyzer, pipeline device, blower, jaw crusher, bucket elevator, electromagnetic vibrating feeder, silo, power distribution cabinet and other equipment.
Technical Parameters of Stone Powder Process Plant
Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
