Applied Field: Powder milling and grinding processing equipment is used for processing bauxite, manganese ore, phosphate rock, iron oxide quartz sand, cement clinker, activated carbon, clay, gypsum, silicon carbide, refractory materials, etc. Its widely applied in chemical industry, fertilizer, mining, refractory, ceramics, steel, thermal power, etc
Brief Introduction of Product

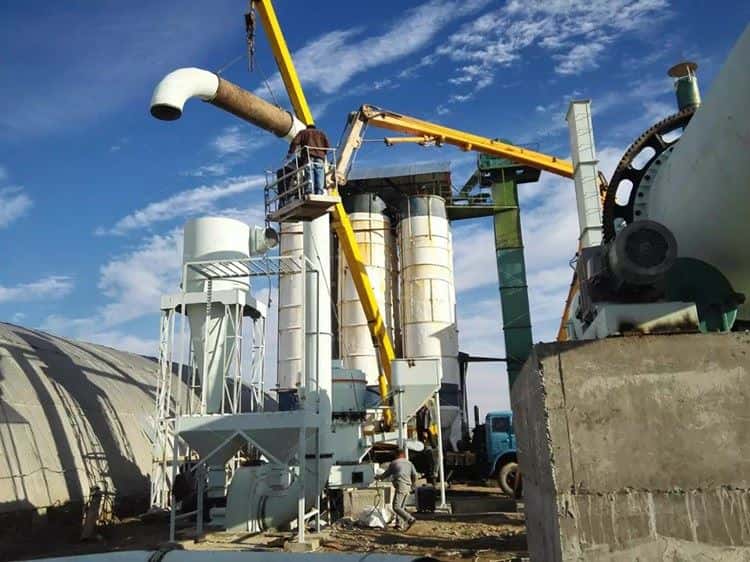

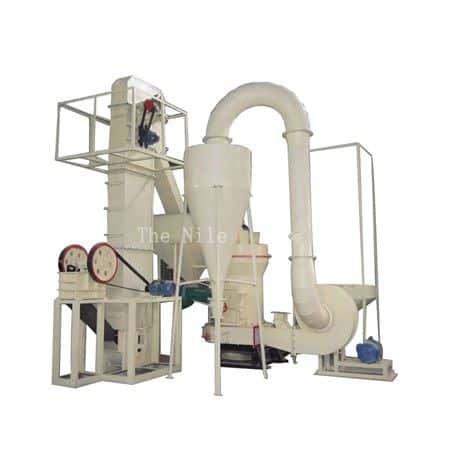

Powder milling and grinding processing equipment is usually composed of centralized electric control, stone jaw crusher, bucket elevator, electromagnetic vibrating feeder, grinding host, auxiliary machine, fan, dust removal equipment, etc. According to the needs of users, the host can be equipped with Raymond mill, high-pressure mill, micro powder mill, etc. The configuration of powder milling and grinding processing equipment production line is mainly determined based on the customer's raw materials, output for grinding, and the use of the finished product. Nile machinery provides comprehensive pre-sale, sale, and after-sale services, configures the process according to the customer's production site, and strives to configure the most reasonable and economical grinding production line for customers.
Product Advantages
1.High yield and low investment. The wearing parts of powder milling and grinding processing equipment are made of good wear-resistant materials with long service life. Therefore, the whole production line has many advantages such as low cost and high efficiency.
2.Powder milling and grinding processing equipment have a strong complete set. No matter from the processing of raw materials or transportation or grinding and final packaging, it can form an independent production system, which can not be achieved by other grinding equipment. Moreover, powder milling and grinding processing equipment have a good user experience, large output, low investment but high efficiency, which can save a lot of capital construction funds for customers.
3.Good sealing. The sealing optimization and upgrading of the whole powder milling and grinding processing equipment production system can fully capture dust and reduce noise decibels.
Technical Parameters ofPowder Milling and Grinding Processing Equipment
Model | Roller Number | Roller Size | Feeding Size | Output Size | Capacity | Motor Power | Weight |
3R1510 | 3 | 150*100 | 15 | 0.2-0.044 | 0.3-1.2 | 7.5 | 2 |
3R2115 | 3 | 210*150 | 15 | 0.2-0.044 | 0.4-1.6 | 15 | 3.6 |
3R2615 | 3 | 260*150 | 20 | 0.2-0.044 | 0.8-2.5 | 18.5 | 4.2 |
3R2715 | 3 | 270*150 | 20 | 0.2-0.044 | 0.9-2.8 | 22 | 4.8 |
3R2715 | 3 | 300*150 | 20 | 0.2-0.044 | 1.2-3.5 | 30 | 5.3 |
4R3016 | 4 | 300*160 | 20 | 0.2-0.044 | 1.2-4 | 30 | 8.5 |
4R3216 | 4 | 320*160 | 25 | 0.2-0.044 | 1.8-4.5 | 37 | 15 |
5R4121 | 5 | 410*210 | 30 | 0.2-0.044 | 3-9.5 | 75 | 24 |
