Hydro-cyclone Separator Machine is widely used in black and non-ferrous metal mines for grinding, grading, concentration, dewatering,ultra-fine grades, and tailings filling, damming, and recycling processes.
Product description:
The Hydro-cyclone Separator Machine is grading equipment that uses centrifugal force to accelerate the sedimentation of ore particles. It needs pressure to feed the ore, so it consumes a lot of power, but it has a small area, low price, large processing capacity, high classification efficiency, and very fine overflow. Stream products are mostly used in the grading operation in the second stage of closed-circuit grinding.
Features of hydro-cyclones for sale
1. The processing capacity is large, up to 220 m³/h, and the overflow particle size can be adjusted arbitrarily between 20-120μm.

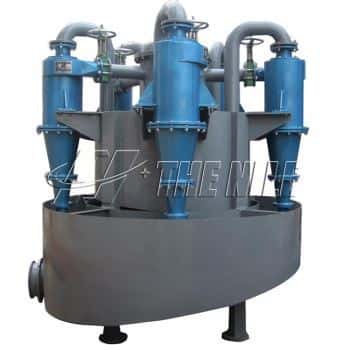

2. The Hydro-cyclone Cluster adopts special wear-resistant materials, which have strong wear resistance and prolong service life.
3. The production capacity per unit volume is large and the area is small.
4. The FX series of hydro-cyclones actively introduce advanced technology, with high grading efficiency and fine grading granularity.
5. No moving parts, simple structure, and convenient maintenance.
Structural composition of Hydro-cyclone Separator Machine

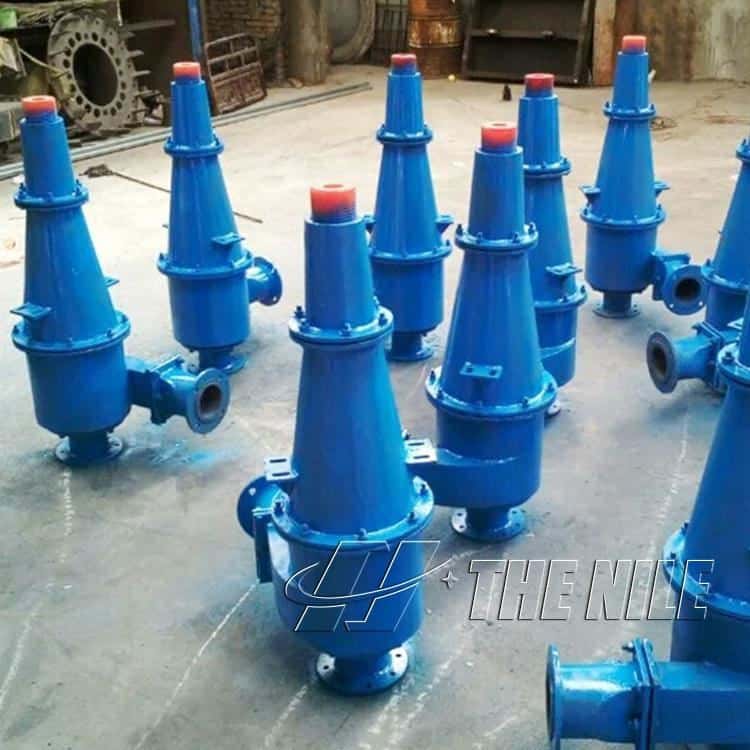

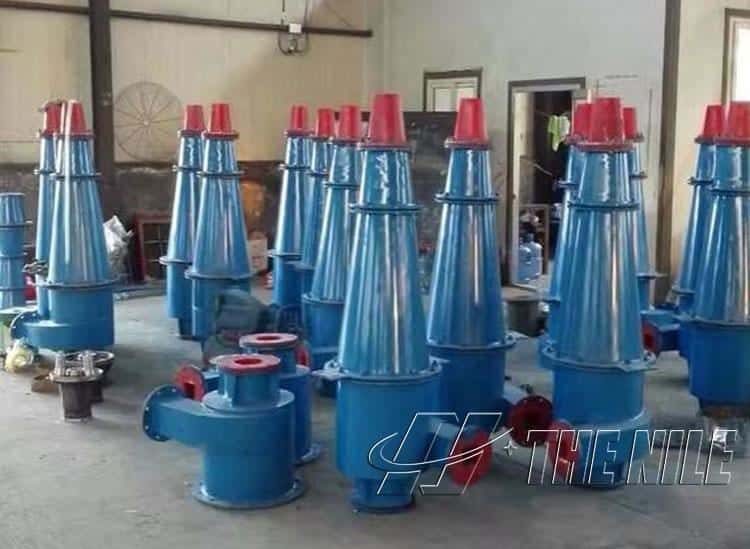

The hydro-cyclone separator machine is mainly composed of a cylinder, a feed pipe, an overflow pipe, an overflow pipe, and sand settling port. The cylinder is mainly composed of an upper cylinder and a lower inverted cone. It has the advantages of simple structure, small footprint, convenient maintenance, and so on.
Uses of mineral Hydro-Cyclone separator
Hydro-cyclones are mainly used for classification, separation, concentration, and desliming in the mineral processing industry. When the hydro-cyclone is used as a grading device, it is mainly used to form a grinding and grading system with a mill; when used as a desliming device, it can be used for desliming in a gravity separation plant; when it is used as a thickening and dewatering device, it can be used to remove the beneficiation tailings After being concentrated, it is sent to fill underground mining tunnels.
FAQ:
Q1: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q2: What about the quality of your products?
A: Our products are manufactured strictly in accordance with national and international standards, and we always test every piece of equipment before delivery. We guarantee if the quality of products is different from the description we described before your placing order, we promise a 100% refund.
Q3: Is the price of products reliable?
A: Yes, we are a manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
Model | diameter | Cone angle | Overflow size | Capacity | Weight |
(mm) | μm | m³/h | kg | ||
FX-125 | 125 | 20 | 20-50 | 3.1-6.1 | 57 |
FX-150 | 150 | 20 | 35-75 | 7.5-15 | 128 |
FX-250 | 250 | 20 | 40-100 | 10-39 | 205 |
FX-300 | 300 | 20 | 45-105 | 37-43 | 287 |
FX-350 | 350 | 20 | 50-110 | 74-90 | 430 |
FX-500 | 500 | 20 | 60-120 | 170-220 | 718 |
